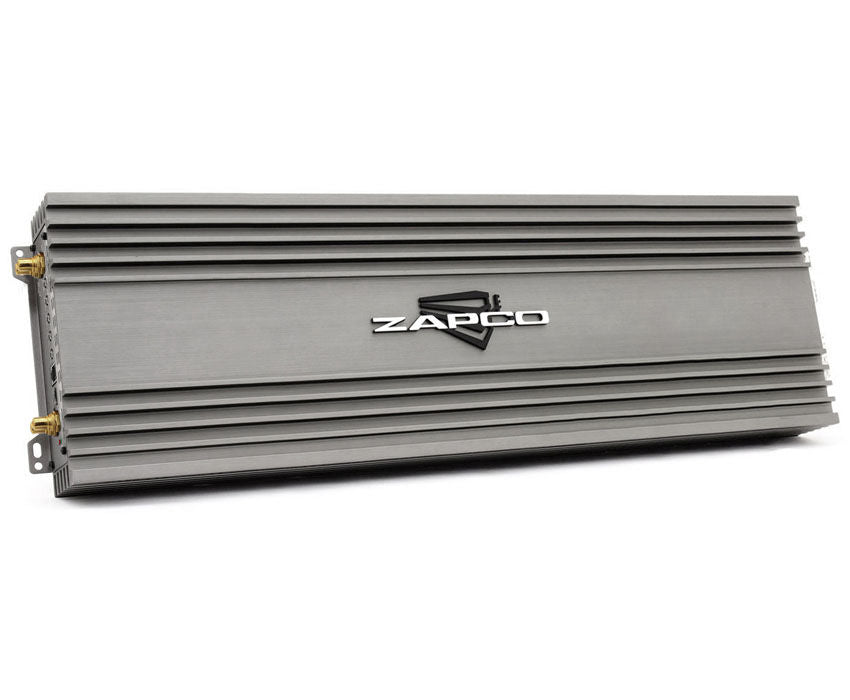

Zapco Z-3KD II

Mono Class D Linkable, bass amplifier,

Stable into 1 Ohm (2 Ohm w/2 amps Linked/Strapped)

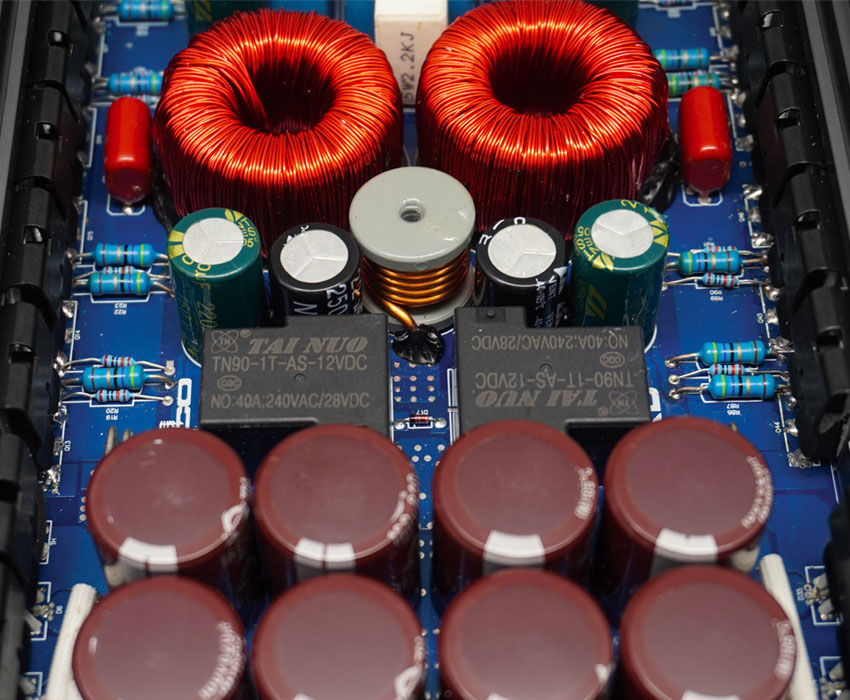

PWM MOSFET power supply

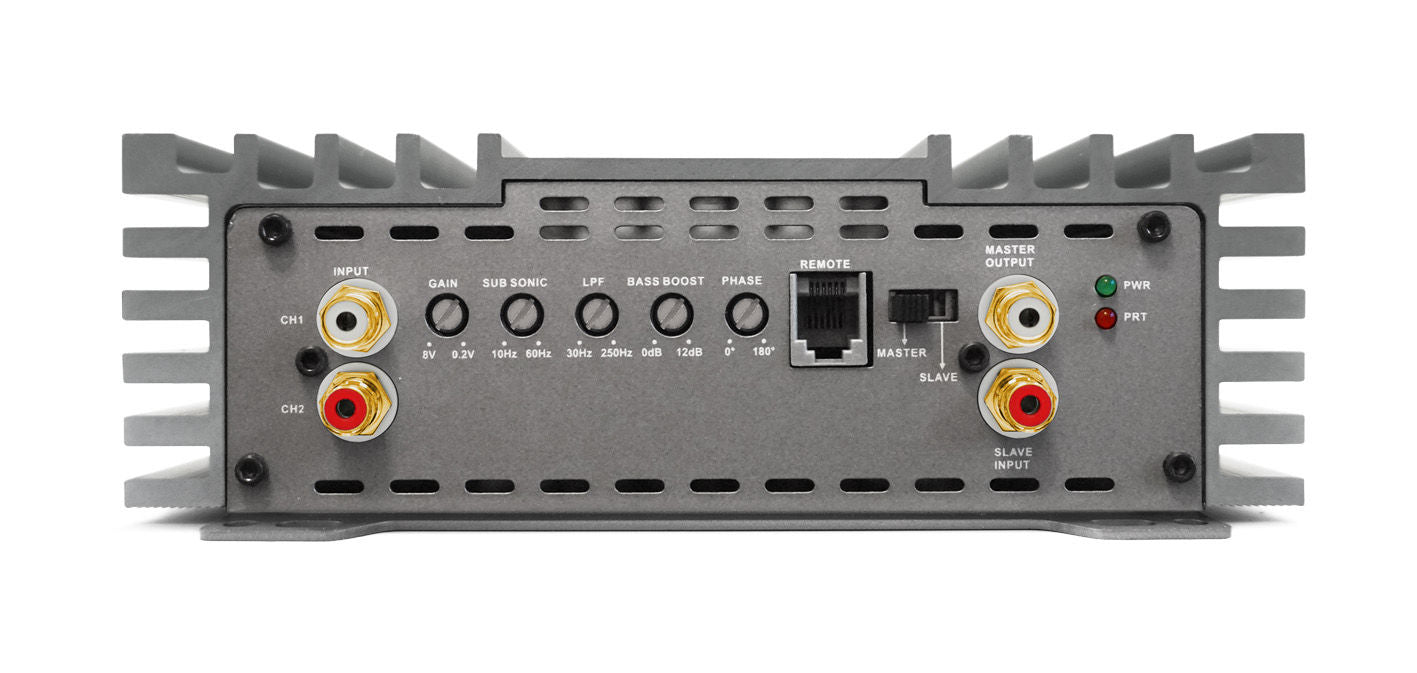

24 dB Variable low pass (LPF) crossover

12 dB Variable bass boost equalization

0 – 180 degree variable phase shift

24 dB Variable subsonic filter

Selectable master and slave operation for Linked (strapped) amplifier operation

• Power @ 4Ω: 900 watts
• Power @ 2Ω: 1800 watts
• Power @ 1Ω: 3000 watts
• Linked @ 2Ω: 6000 Watts
• THD @ Rated Power  < 0.05%
• Signal to Noise Ratio > 90dB
• Damping factor: > 350
• Efficiency: 86%
• Input Sensitivity .2v to 8v
• Dimensions in mm: 190(W) x 62(H) x 620(L) Overall: 190(W) x 62(H) x 657(L)
