Zapco HDSP-Z16 V AD-16G

Zapco HDSP-Z16 V AD-16G

Contact us for pricing
$3,677.00 USD
Sale Sold out

In 2004 Zapco led the industry when it introduced the Zapco DSP6 and the Zapco Digital Programming

Network (DPN). In 2015 Zapco offered the DSP-Z8III and Z6III in more compact chassis. Now Zapco

introduces the next generation of in-car processing. The HDSP-V bring tuning features and sound

quality never before offered in a car DSP, with an extraordinary data of -140 dB of floor noise with digital

input (average over 100 Hz) and 115 dB of Crosstalk in all frequencies from 300 Hz to 1 KHz (average

16 ch). Up to 16 ch. means you can build active systems at every corner of a multichannel sound system.

HD means these are available with HD Audio Players as well, and Wi-Fi and HD BT allow the HDSP to

connect to all auxiliary “smart” devices. Hardware is easily up-gradable with different modules that can

be changed later as the situation requires.

Modular, HD Player, full DSP functions and the best of high-end specifications in both the Digital and

Analog realm.

View full details

  • Features

  • Specifications

    • 16 Channels DSP with HD Player
    • 8 Analog Inputs (RCA + High Level), 5 Digital Inputs, 16 Analog Outputs
    • Modular device: High-end solution with 18 independent PCB
    • Player & DSP: All-in-one dual core processor
    • DSP Processor: OMAP L-138 - 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision)
    • DSP Processor Point: Fixed & Floating
    • DSP Sampling Rate: 96 KHz
    • Player power: 456 Mhz - Arm 9 32 Bit. Read till 192 KHz/24 bit
    • File Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3, Direct.: File or Artist/Album or Title
    • USB memory stick support: Formatted FAT32 with limited memory space (2 TB)
    • ADC Processor (standard): AK5558, 32 Bit, 784 KHz, 115 dB DNR
    • ADC Processor (option B): AK5578, 32 Bit, 784 KHz, 121 dB DNR
    • DAC Processor (standard): ES9038PRO, 32 Bit, 784 KHz, 132 dB DNR
    • Frequency response: 5Hz @ 45 KHz
    • THD+N: 0,0008 (Digital Input), 0,001 (Analog Input) 1V Out
    • S/N Device Floor Noise: -125 dB (from 20 Hz to 20 KHz), -135 dB (from 150 Hz to 20 KHz), -140 dB (average from 80 Hz to 20 KHz)
    • S/N Ratio (Digital Inputs): from 115 to 120 dB A
    • S/N Ratio (Analog Inputs): from 109 to 115 dB A
    • Crosstalk: > 110 dB (from 300 Hz to 0.9 KHz)
    • Crosstalk: average 115 dB (from 300 Hz to 0.9 KHz)

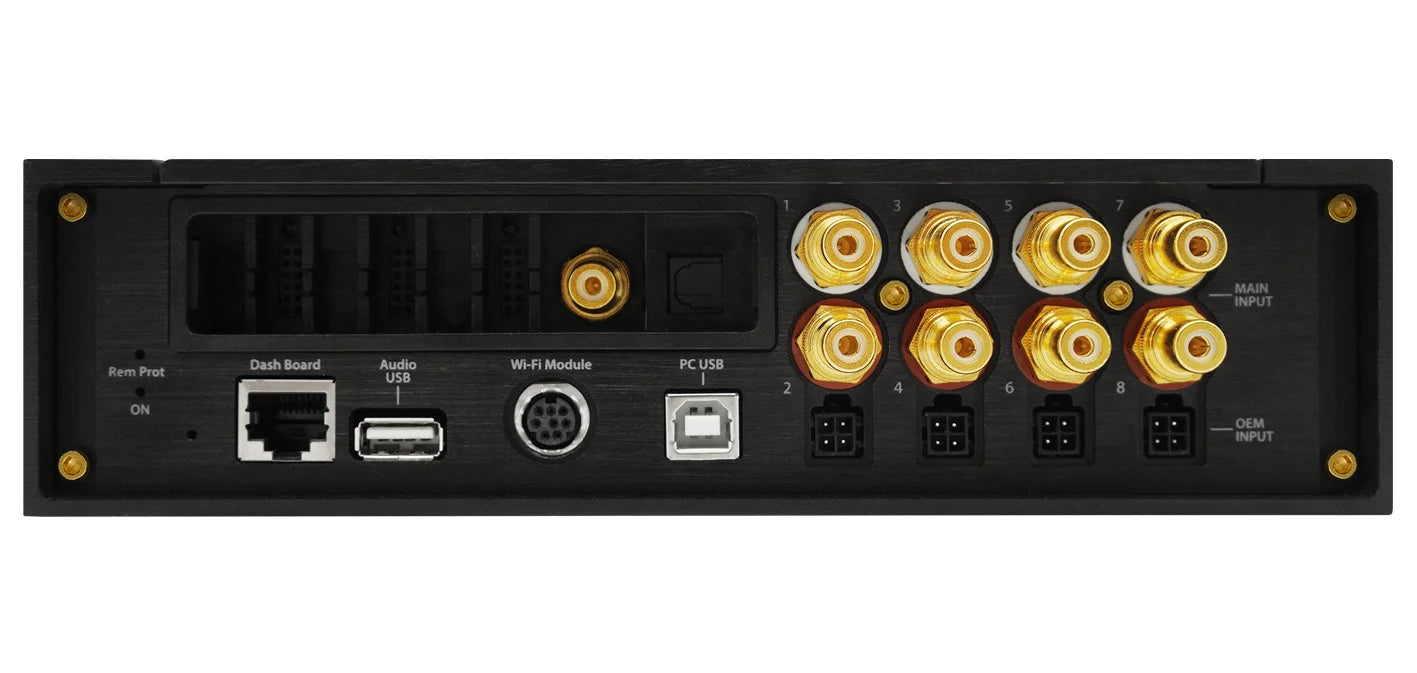

    • Analog Inputs: 6/8 x RCA Low Level 1/5 Volt, 8 x High Level 4/20 Volt
    • Digital Inputs: Optical: 24 Bit - 192 KHz, SPDIF: 24 Bit - 192 KHz, 3 x i2S: 24 Bit - 192 KHz

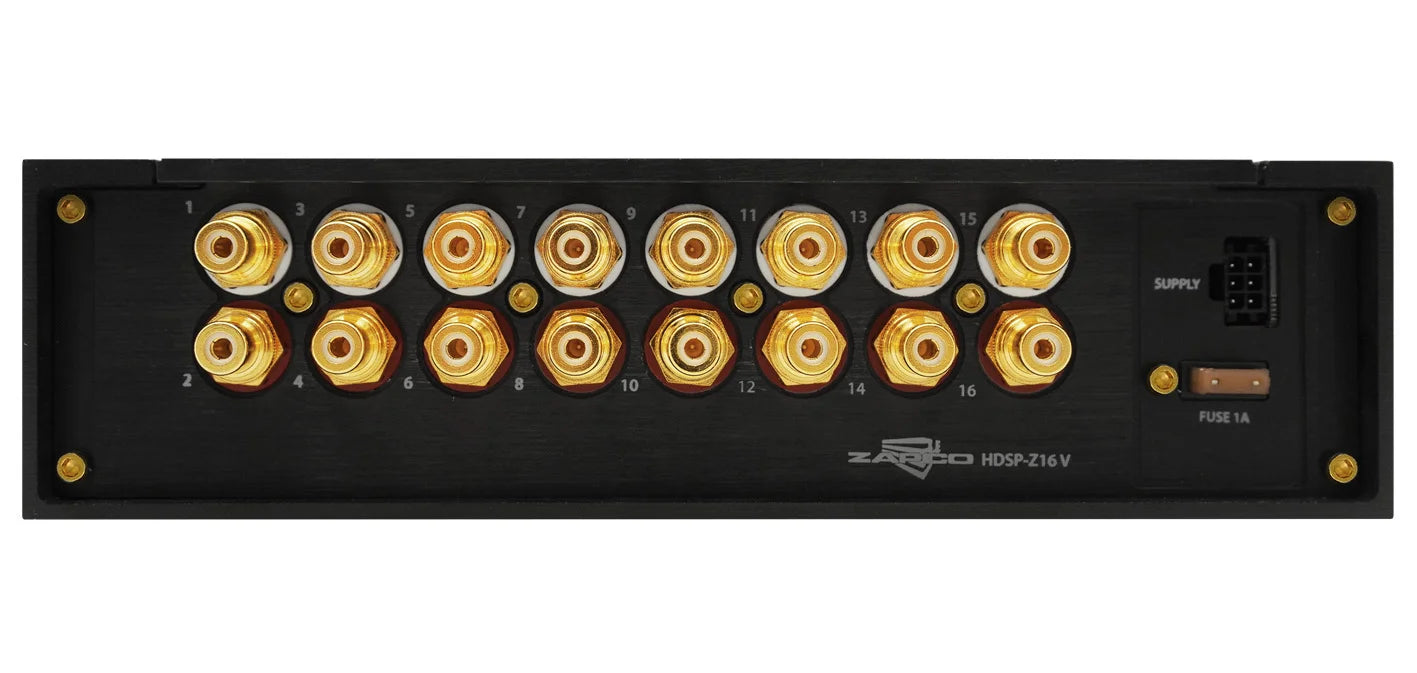

    • Analog Outputs: 16 x RCA, 4 Volt (5 KOhm),  Impedance: 100 Ohm

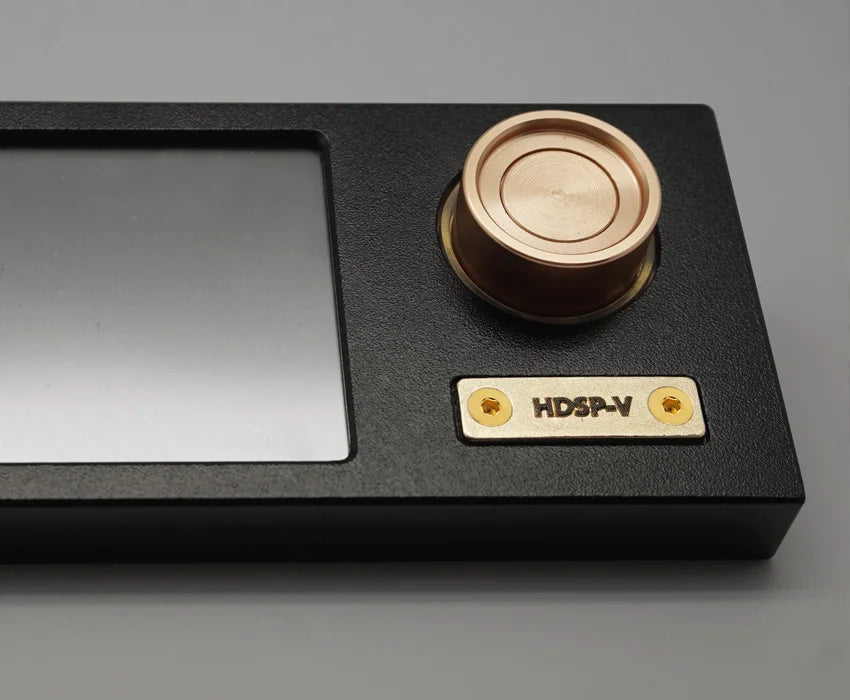

    • Dash Board: 3" Touch Screen, 10 Preset
    • Dash Board Control: Volume/Balance/Fader/Tone
    • Wireless Control: Wi-Fi External Module (incl.)
    • BT Streaming: External APTX HD Module (opt.)
    • Tuning: Easy and Expert, "Double Front"
    • I/O Setup: 2ch, 4ch, 6ch, 8ch, OEM SUM, AUX
    • Digital Input Mode: HD, Optical, Coax, i2S 1, 2, 3
    • EQ Parametric 30 / 6 poles
    • XO Filters: Linkwitz, Butterw., Bessel, Tsecheb.
    • Phase Filter: All channels 1Hz/1 Degree step
    • VSEQ Filter: 50-200 Hz - 1 Hz step
    • Power Supply: Operating: 6-16 Volt, Current Draw: 750 mA/14.4 V, Fuse: 1A
    • Stop-Start ignition system support
    • Main unit overall dimensions (mm): 217(L) x 164(W) x 57(H)
    • Dash Board dim. (mm): 111(L) x 16(W) x 49(H)

    ​

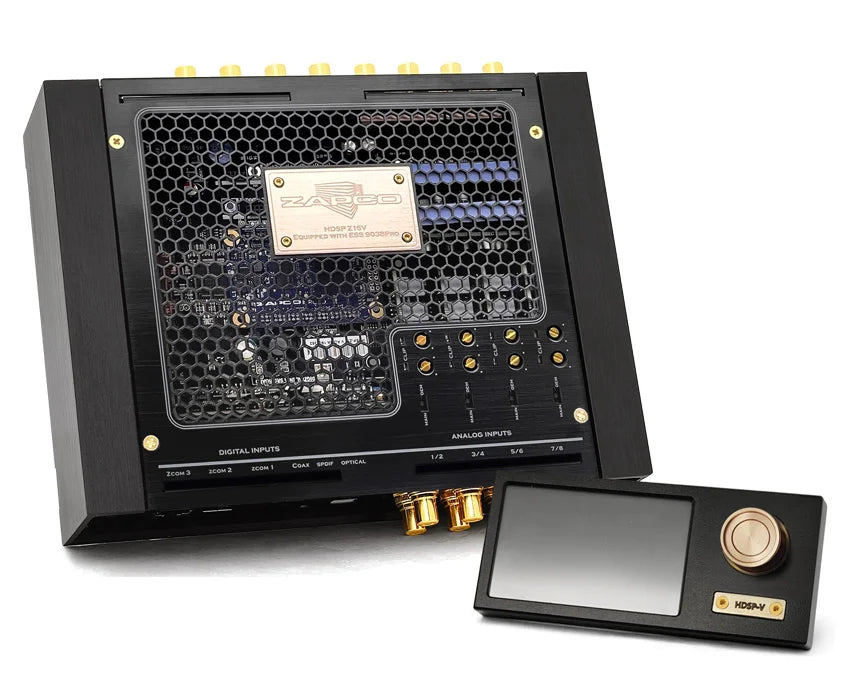

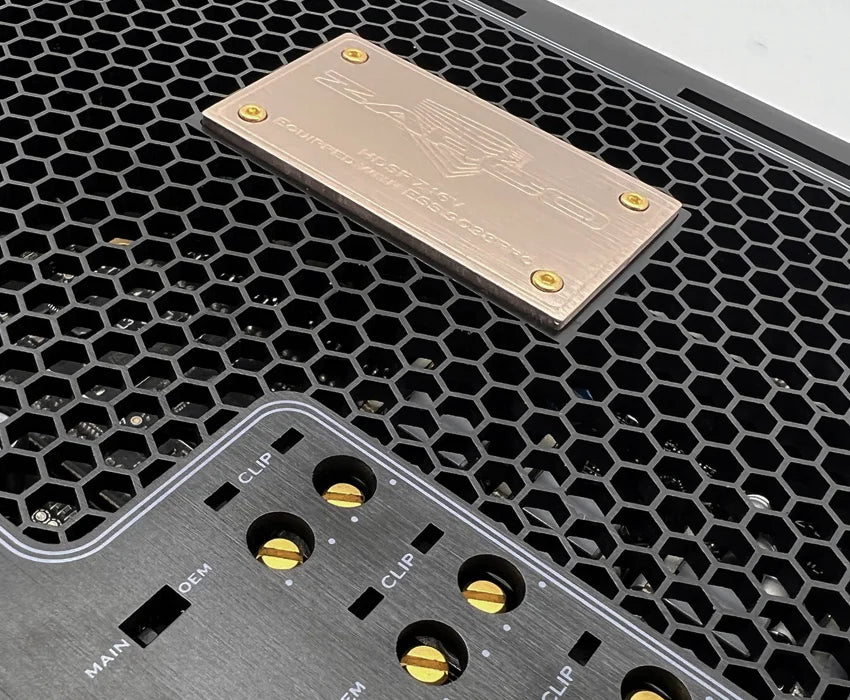

           (optional top panel shown in photo)
