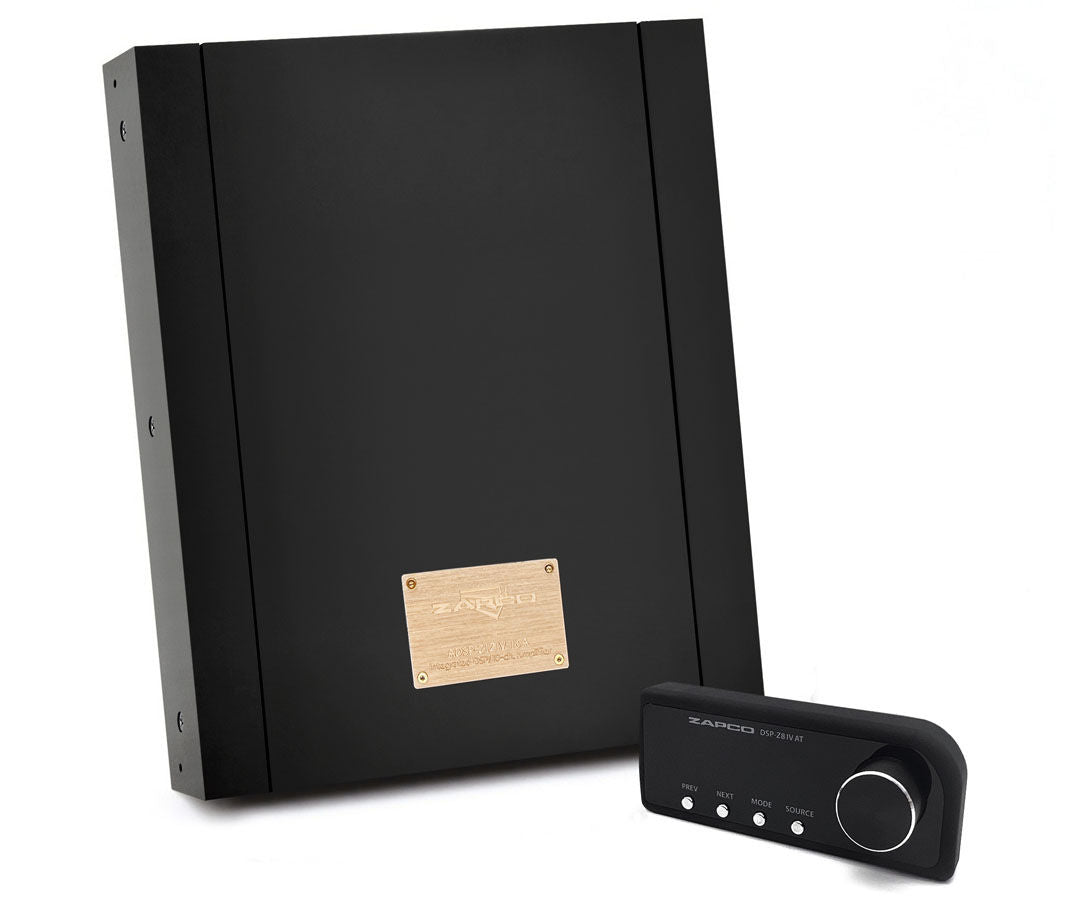

Zapco ADSP-Z16 IV-12A

• DSP Processor: Cirrus Logic CS47048
• Power: 150 MHz/32 bit/192 KHz
• 16-Channels
• ADC: Cirrus Logic CS47048 32 bit/192 KHz
• ADC Dynamic Range/THD: 108 dB/-98 dB
• DAC: Cirrus Logic CS47048 32 bit/192 KHz
• DAC Dynamic Range/THD: 140 dB/-120 dB
• Low level (Pre)/Sensitivity: 1-5 VRMS
• High Level (Spk In)/Sens.: 2-20 V
• Optical Digital IN: 24 bit-192 KHz
• Coaxial Digital IN: 24 bit-192 KHz
• Freq. Response (-3dB): 10 Hz - 22.5 KHz
• S/N Input: 110 dBA (D) - 106 dBA (A)
• S/N Ratio Amp + DSP at max. power: 95 dBA
• THD+N Input: 0,002% (D) - 0,005% (A)
• THD+N Amplif. + DSP Analog Input:  0,07 %
• Crosstalk at 1 Khz only DSP: 90 dB
• Crosstalk Amplifier + DSP: 45 dB
• Amp Power @ 4Ω: 12 x 80 watts
• Amp Power @ 2Ω: 12 x 120 watts
• Amp Power @ 4Ω Bridged: 6 x 240 watts
• F/R EQ: 1-6 ch Gr. & Par./31 poles
• Effect EQ: 7-8 ch Gr. & Par./11 poles
• Mute/Solo: Yes, each channel
• Time Align. (Range/Steps): 0/15 ms / 0.02 ms
• Max Delay (Cm/Steps): 515 cm / 0.68 cm
• Polarity: 0/180°
• Remote Control included
• HD-BT Streaming (with optional HD-BT)
• PC/Display Connection: USB/6-pin Mini DIN
• Unit Dimensions: 213(W) x 291(L) x 50(H)

​
