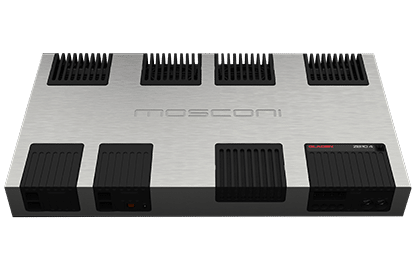

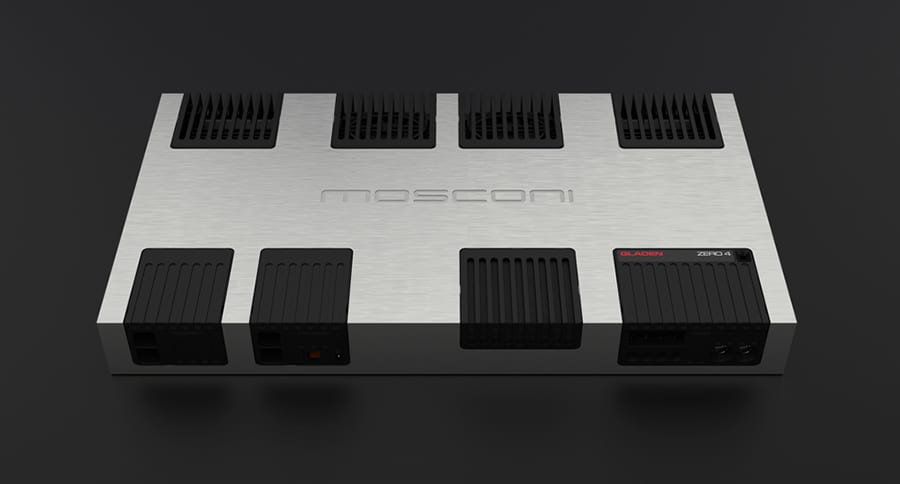

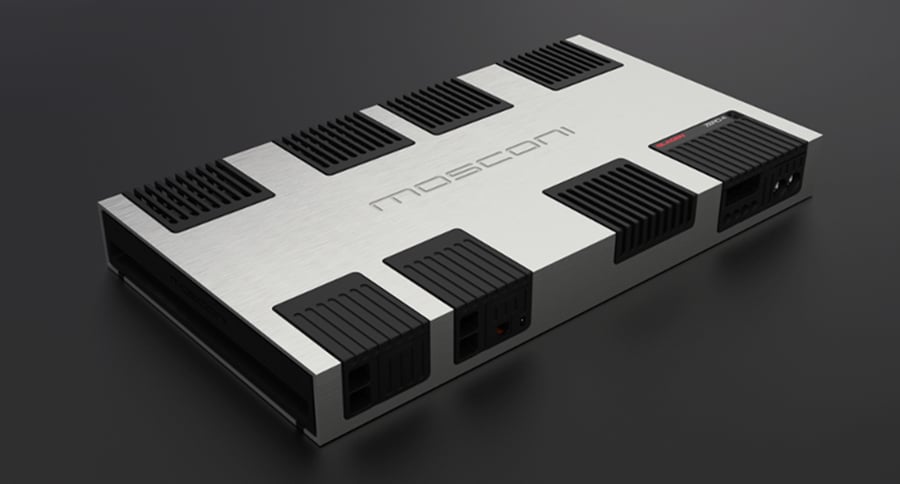

Mosconi Zero 4

• AB class, full MOSFET
• 1 Ohm stable.
• Very low THD and IMD
• Regulated power supply
• High/Low level selector
• Auto REMOTE function
• Cross Over with separate High Pass and Low Pass filter, Band Pass allowed
• Slot for G_cards (G_HOC, G_HP, G_LP, G_FSA)
• Remote Volume Control RTC_MOS (optional)
• Side panels in soft touch finishing with red LED lighting

Stereo Power RMS @ 4 Ohm2×100 W (CH 1/2) + 2×210 W (CH 3/4)Stereo Power RMS @ 2 Ohm2×145 W (CH 1/2) + 2×325 W (CH 3/4)Bridge Power RMS @ 4 Ohm1×290 W (CH 1/2) + 1×650 W (CH 3/4)Bridge Power RMS @ 2 Ohm1×450 W (CH 1/2) + 1×900 W (CH 3/4)DC-DC Converter TypologyRegulatedInput Sensitivity Range0.39 ÷ 8.6 V / 1.1 ÷ 25 V (HL)HP Filter Range (Switchable)20 ÷ 175 Hz (CH 1/2 x10) ; 20 ÷ 175 Hz (CH 3/4)HP Filter Slope12 dB/Oct (Stereo & Mono)LP Filter Range (Switchable)50 ÷ 300 Hz (CH 1/2 x20) ; 50 ÷ 300 Hz (CH 3/4)LP Filter Slope12 dB/Oct (Stereo & Mono)Band Pass FilterYesHigh Level InputYesSlot for G_cardsYesInternal Fuse1 x 150 ADimensions450mm x 250mm x 50mmRTC_MOSOptionalFinishingBrushed
