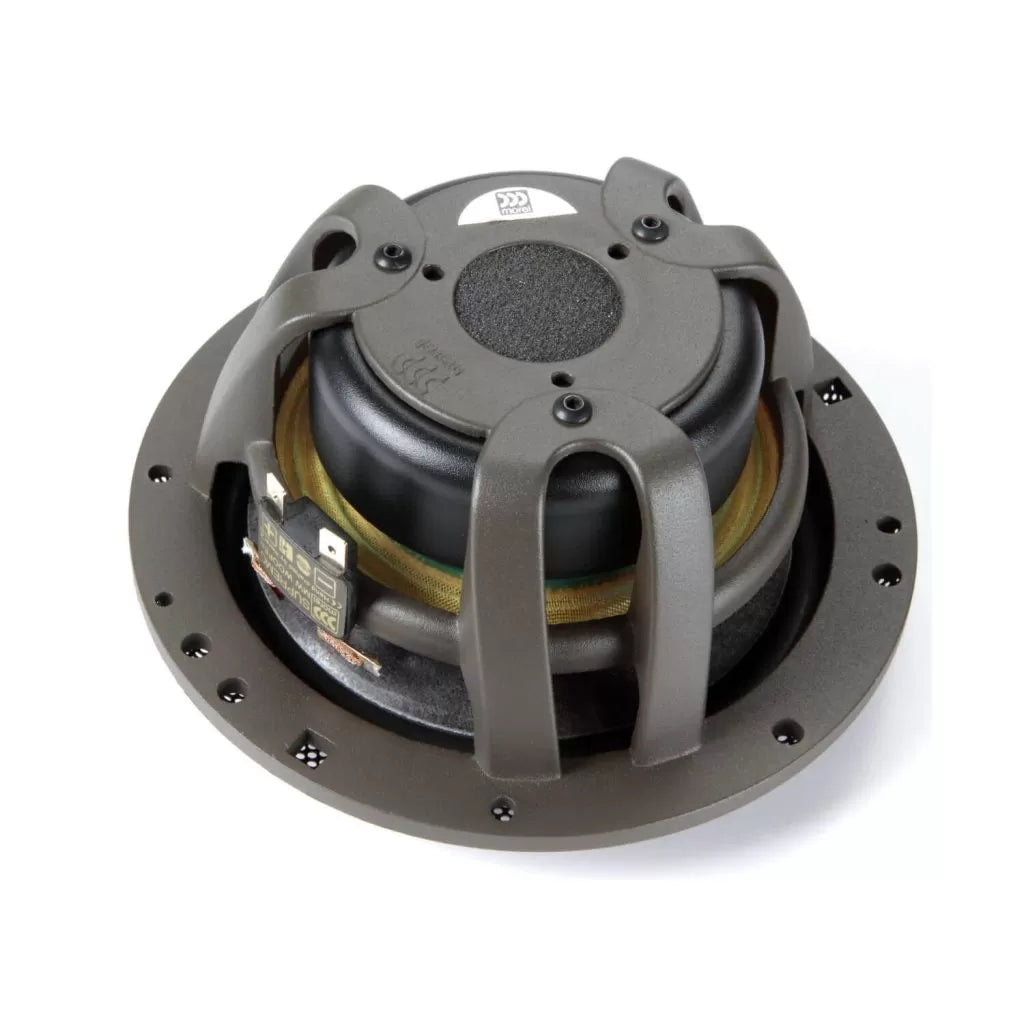

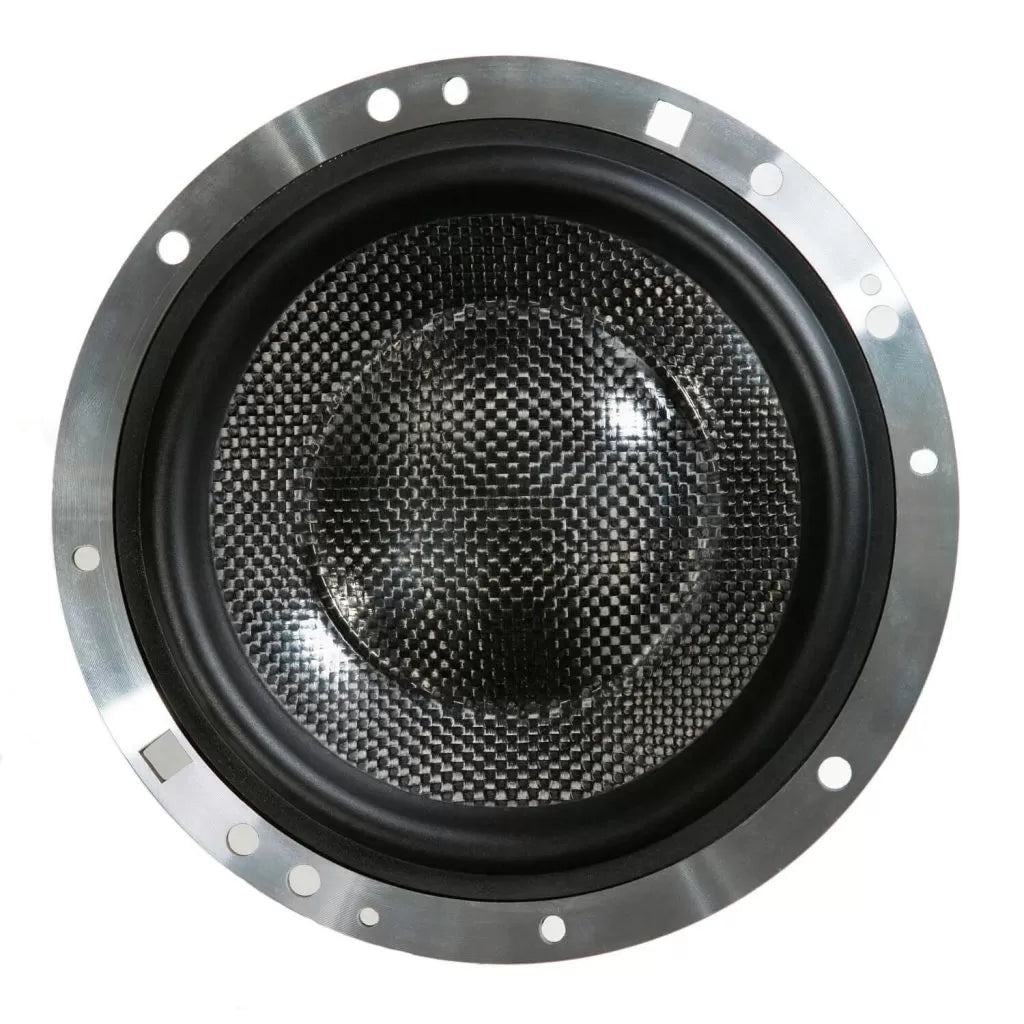

Morel SUPREMO MW6 woofers

Morel SUPREMO MW6 woofers

Contact us for pricing
$4,406.00 USD
Sale Sold out
An optimized version of the fat lady mid-bass woofer, the supremo MW woofer embodies advanced under-hung external voice coil and a powerful motor structure to create precision, linearity, dynamics, and wide frequency range. The Supremo woofer is the culmination of years of development and engineering know-how to deliver accurate and dynamic midbass with a very low distortion level.
View full details

  • Features

  • Specifications

    Nominal Impendance (ohm)4ΩPower Handling Wrms140WMax. Trans. Pwr Handling Wrms600WSensitivity (2.83 V/1M) dB89dBFrequency response Hz30-15000Resonant Freq. Fs Hz60Voice Coil Diameter mm (inch)75 (3)Voice Coil Height mm (inch)6 (0.23)Voice Coil Type/FormerAluminiumVoice Coil WireHexatech™ AluminiumDC Resistance (ohm)3.5Voice Coil Induct. @1 kHz (mH)0.13Magnet SystemNeodymium double magnetHE-Magnetic Gap Height mm (inch)16 (0.64)B-Flux Density (T)0.65BL Product/BXL5.19Max. Linear Ex./Xmax mm (inch)± 5 (± 0.02)Suspension Compliance CMS - mm/N0.41Electrical Q Factor QES0.76QTS0.57QMS2.25Mech.Resistance RMS - Ohm/meter2.64Moving Mass MMS - gr14.59Equiv. Can Air Load VAS - L (cu.ft3)8.08 (0.28)Effective Piston Area SD sq.cm (sq.inch)119 (18.45)Cone typeOne-piece formedCone MaterialCarbon fiber/ Rohacell sandwichUnit Diameter mm(inch)165 (6.50)Mounting Depth mm (inch)61 (2.4)Mounting Cutout141 (5.55)Net Wight Kg (lb)1.47 (3.20)
