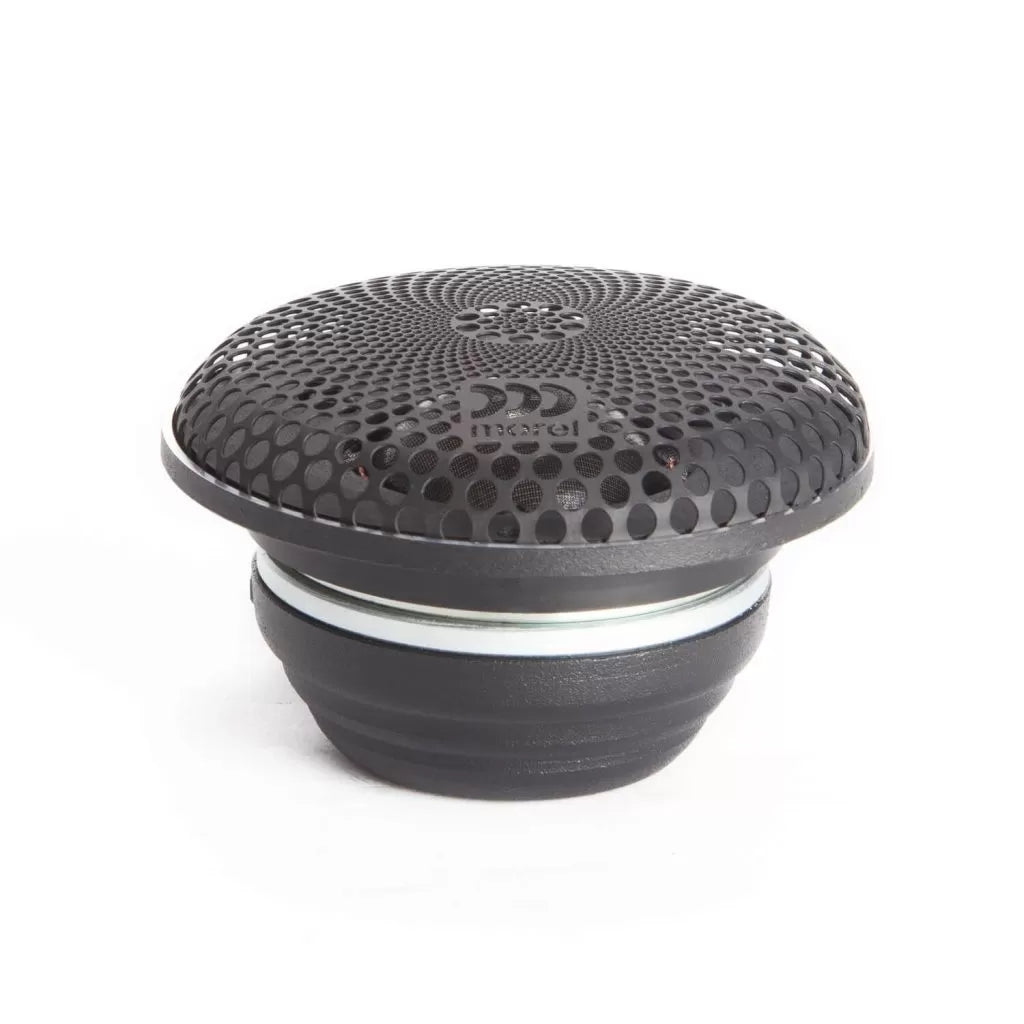

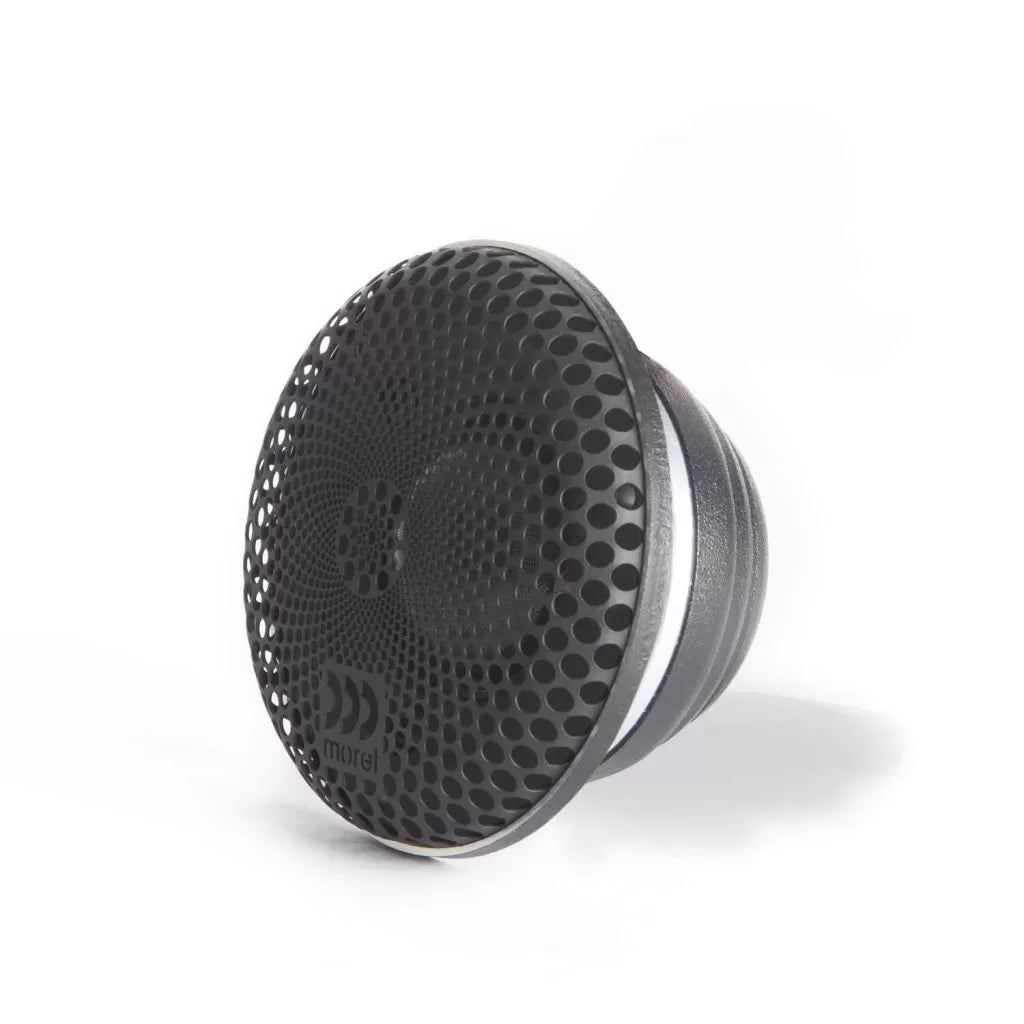

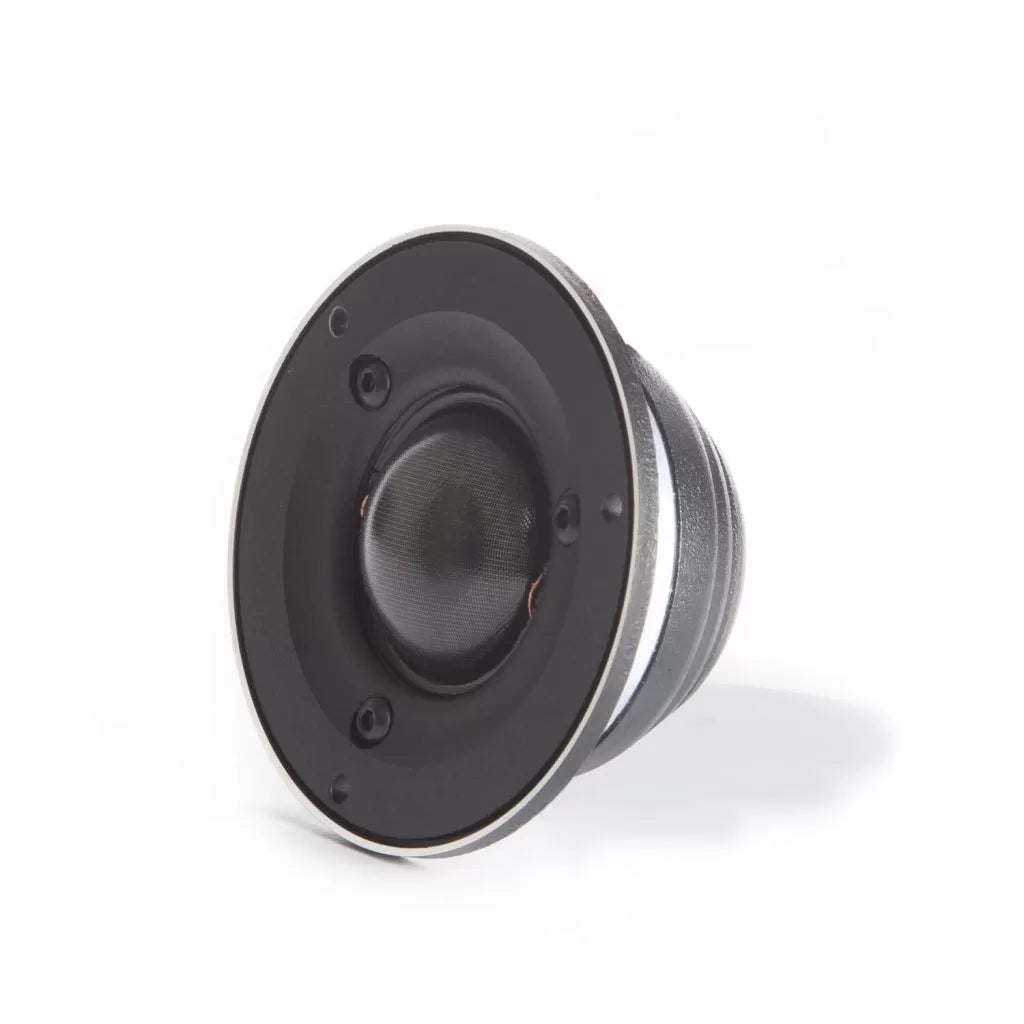

Morel ELATE CARBON ALTO
Morel ELATE CARBON ALTO
Sharing its mechanics with the Supremo Piccolo, the new Elate Alto tweeter embodies the best of Morel’s technologies giving a higher level of performance to the Elate Carbon Pro systems. The hand-coated Acuflex 28mm diameter soft dome, Hexatech aluminum voice coil, and a powerful neodymium magnet with a specially designed damped rear chamber allow it to achieve a staggeringly low 800Hz resonance point and flat response. The Elate Alto can be used with a very low crossover point while obtaining incredible realism and transparency for a highly accurate soundstage.
Share
-
Features
1.1” Acuflex silk dome, cavity-back tweeters, 6 ohm
-
Specifications
Nominal Impendance
(ohm)6Power Handling Wrms220Max. Trans. Pwr Handling Wrms (10ms)1000Sensitivity (2.83 V/1M) dB91Frequency Response Hz1400-25000FS Hz900Voice Coil Diameter mm (inch)28 (1.125)Voice Coil FormerAluminiumVoice Coil WireHexatech™ aluminiumDC Resistance ohm5.2Magnet SystemNeodymium flat pancake underhungDome TypeAcuflex™ hand coated soft domeDome MaterialSilkUnit Diameter mm (inch)67.00 (2.6)Mounting Dept mm (inch)32.00 (1.25)Mounting Cutout mm (inch)55 (2.16)Net Weight Kg (lb)0.35 (0.77)
