JL Audio XD700/5v2

5-Channel Class D System Amplifier, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V

The XD700/5v2 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any vehicle. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 300 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

The XD700/5v2 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.

The XD700/5v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

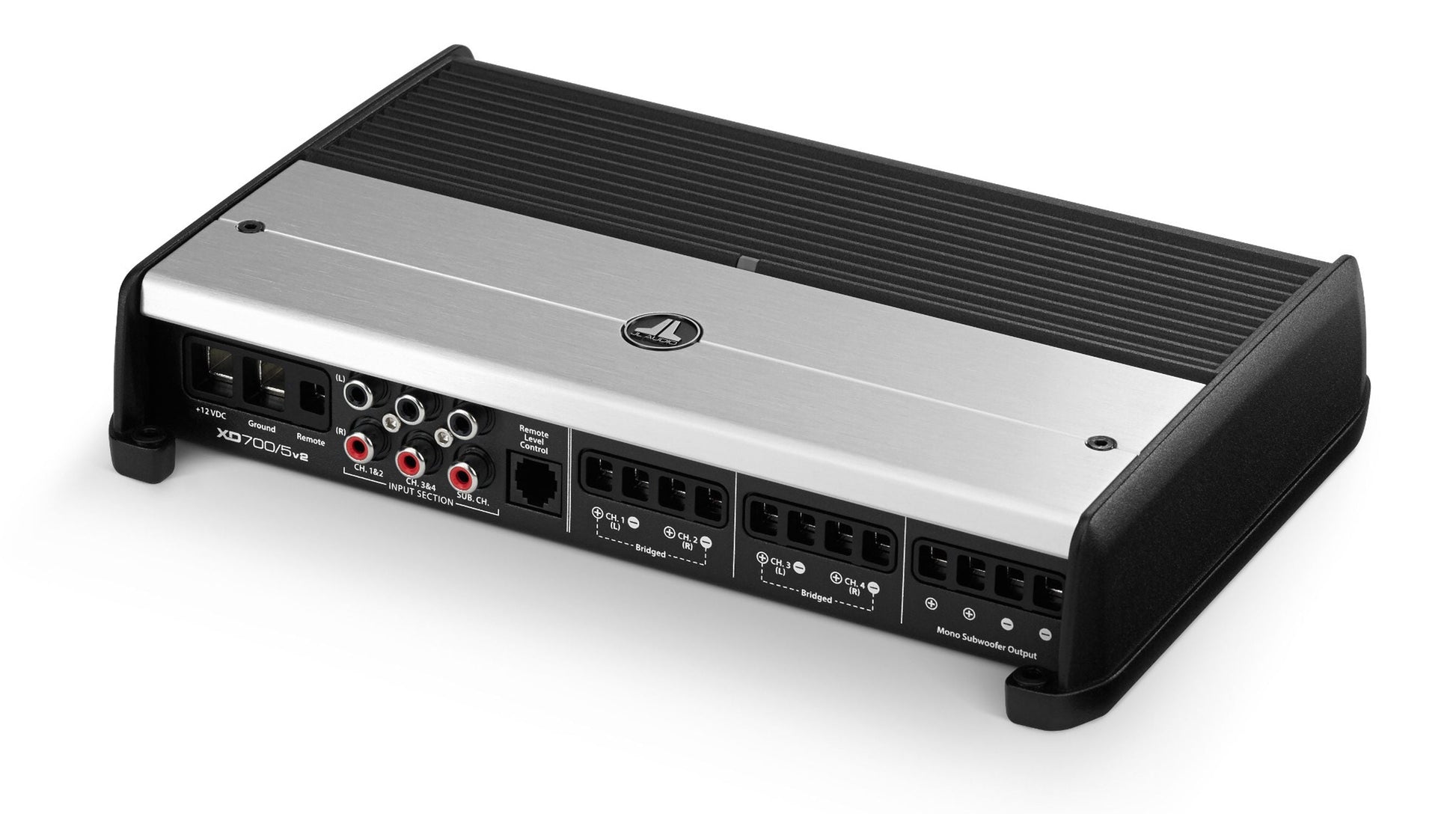

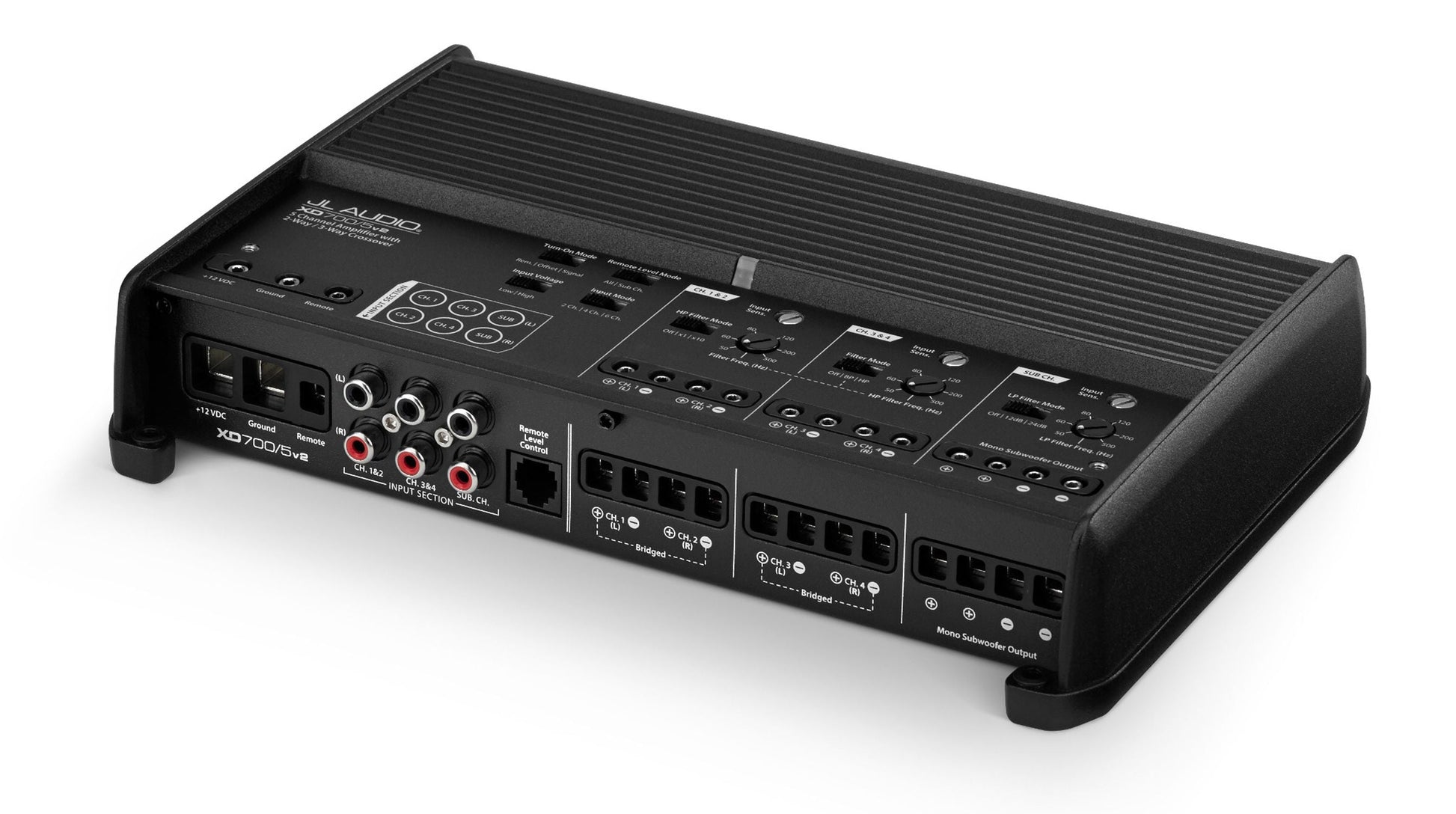

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Rated Continuous (RMS) Power @ 14.4 VMain Channels @ 4 Ω75 W RMS x 4Main Channels @ 2 Ω100 W RMS x 4Main Channels - Bridged @ 4Ω200 W RMS x 2Subwoofer Channel @ 4 Ω180 W RMS x 1Subwoofer Channel @ 3 Ω240 W RMS x 1Subwoofer Channel @ 2 Ω300 W RMS x 1Subwoofer Channel @ 1.5 ΩN/A

Rated Continuous (RMS) Power @ 12.5 VMain Channels @ 4 Ω60 W RMS x 4Main Channels @ 2 Ω90 W RMS x 4Main Channels - Bridged @ 4Ω180 W RMS x 2Subwoofer Channel @ 4 Ω180 W RMS x 1Subwoofer Channel @ 3 Ω240 W RMS x 1Subwoofer Channel @ 2 Ω300 W RMS x 1Subwoofer Channel @ 1.5 ΩN/A

General SpecificationsFrequency Response (Main Channels)12 Hz - 22 kHz (+0, -1dB)Frequency Response (Subwoofer Channel)10 Hz - 1 kHz (+0, -1dB)S/N Ratio, referred to highest rated power (Main Channels)>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 4 Ω>150 / 50 HzDamping Factor @ 2 Ω>75 / 50 HzTHD+N @ Rated Power (Main Channels)<1% @ 2 Ω per Ch.THD+N @ Rated Power (Subwoofer Channels)<1% @ 2 Ω per Ch.Input Voltage Range @ RCA InputsSwitchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)Min.Copper Power / Ground Wire Gauge4 AWG wireFuse Rating60 A (AFS, AGU or MaxiFuse™)

Signal ProcessingFilter Mode(s): Channels 1 & 2 (front)High-Pass onlyFilter Slope(s): Channels 1 & 2 (front)12 dB/octaveFilter Frequency Range: Channels 1 & 2 (front)50 Hz - 5 kHzFilter Mode(s): Channels 3 & 4 (rear)High-Pass or BandpassFilter Slope(s): Channels 3 & 4 (rear)12 dB/octaveFilter Frequency Range: Channels 3 & 450 Hz - 500 HzFilter Mode(s): Subwoofer ChannelLow-Pass onlyFilter Slope(s): Subwoofer Channel12/24 dB/octaveFilter Frequency Range: Subwoofer Channel50 Hz - 500 HzDetented, Calibrated Filter Freq. PotentiometersYesFilter Defeat FunctionYesInfrasonic Filter: Subwoofer ChannelnoneRemote Level ControlOptional (HD-RLC)Remote Level ModesSub Ch. or All ChannelsChannel Input Mode SwitchYes (2/4/6 ch.)Pass-Through Preamp OutputNoneSource Channel Selection for PreOutsN/A

Physical SpecificationsHeight (H)2.05 in / 52 mmWidth (W)10.23 in / 260 mmDepth (D)7.09 in / 180 mmNet Weight6.15 lb / 2.79 kg
