JL Audio XD400/4v2

JL Audio XD400/4v2

Contact us for pricing
$604.00 USD
Sale Sold out

XDv2 amplifiers feature hyper-efficient NexDª Class D technology to deliver audiophile-grade performance from within an incredibly compact package.
Advanced thermal management systems and a full complement of studio-grade signal processing features are standard, and an HD-RLC (sold separately)
can be added to all models for remote level control. Available in a wide range of configurations to suit any system design.

View full details

  • Features

    4-Channel Class D Full-Range Amplifier, 100 W x 4 @ 2 Ω / 75 W x 4 @ 4 Ω - 14.4V





    This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

    Use the XD400/4v2 in combination with our XD600/1 monoblock to build a 1000 W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat. Or, use the XD400/4v2 by itself to power two satellites, plus a subwoofer. With XD's, the possibilities are endless.

    The XD400/4v2 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz.

    The XD400/4v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

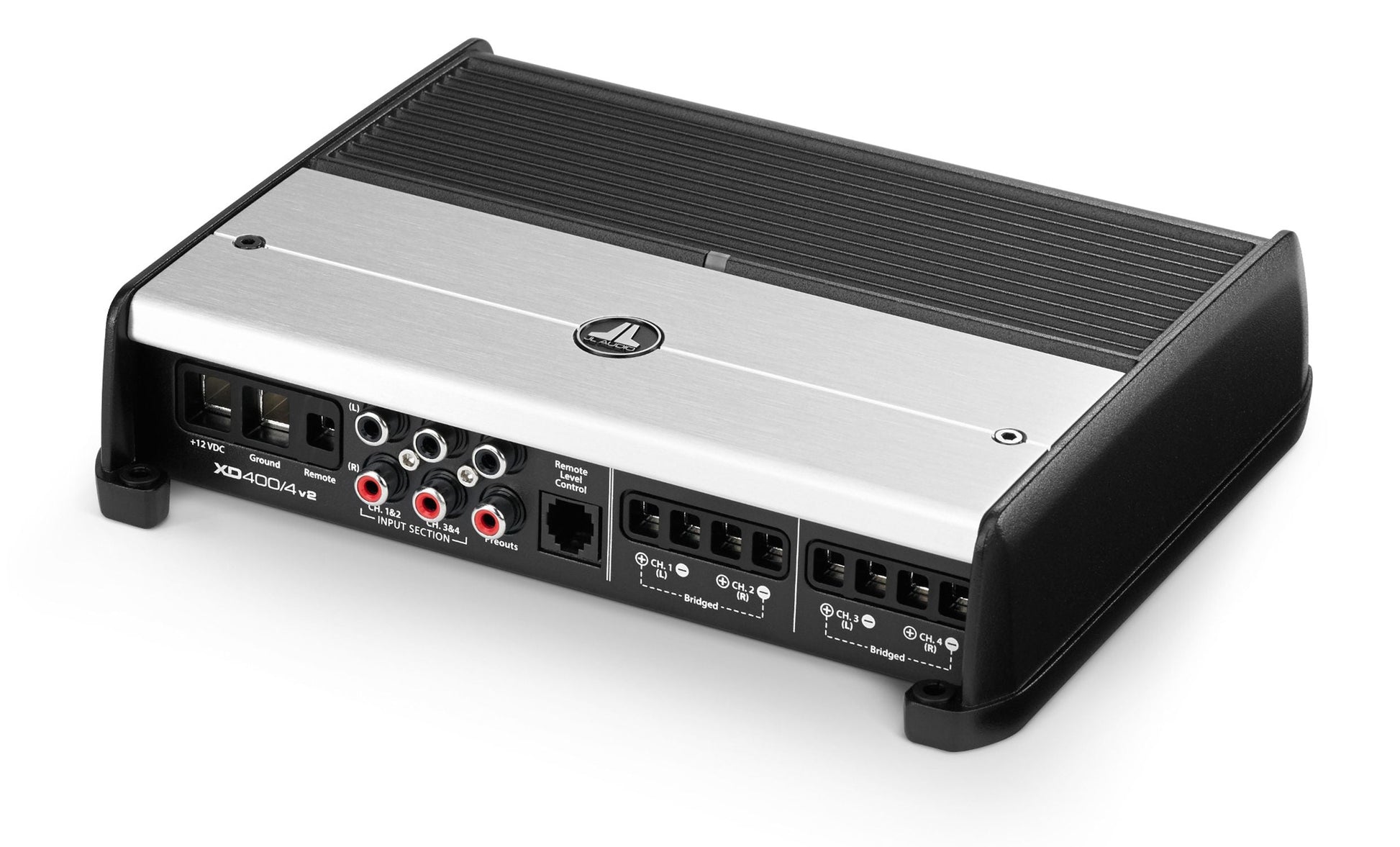

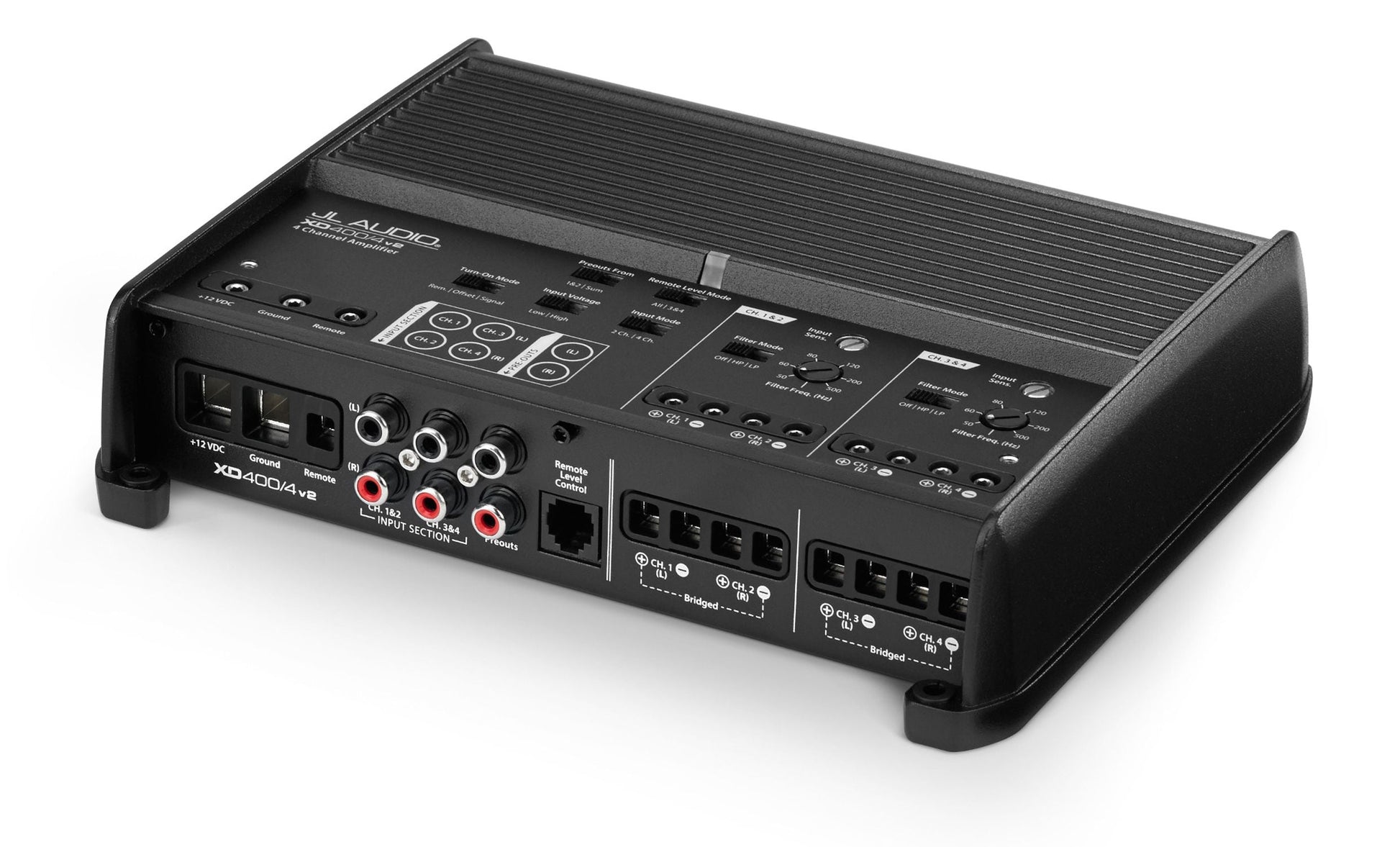

    This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.



  • Specifications

    Rated Continuous (RMS) Power @ 14.4 V@ 4 Ω75 W RMS x 4@ 2 Ω100 W RMS x 4Bridged @ 4Ω200 W RMS x 2


    @ 4 Ω60 W RMS x 4@ 2 Ω90 W RMS x 4Bridged @ 4Ω180 W RMS x 2

    General SpecificationsFrequency Response12 Hz - 22 kHz (+0, -1dB)S/N Ratio, referred to highest rated power>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 4 Ω>150 / 50 HzDamping Factor @ 2 Ω>75 / 50 HzTHD+N @ Rated Power<1% @ 2 Ω per Ch.Input Voltage Range @ RCA InputsSwitchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)Min.Copper Power / Ground Wire Gauge4 AWG wireFuse Rating40 A (AFS, AGU or MaxiFuse™)

    Signal ProcessingFilter Mode(s)Low-Pass or High-PassFilter Slope(s)12 dB/octaveFilter Frequency Range50 Hz - 500 HzDetented, Calibrated Filter Freq. PotentiometersYesFilter Defeat FunctionYesRemote Level ControlOptional (HD-RLC)Remote Level Modes2 or All channelsChannel Input Mode SwitchYes (2/4 ch.)Pass-Through Preamp OutputBufferedSource Channel Selection for PreOutsYes

    Physical SpecificationsHeight (H)2.05 in / 52 mmWidth (W)8.52 in / 216 mmDepth (D)7.09 in / 180 mmNet Weight6.3 lb / 2.86 kg
