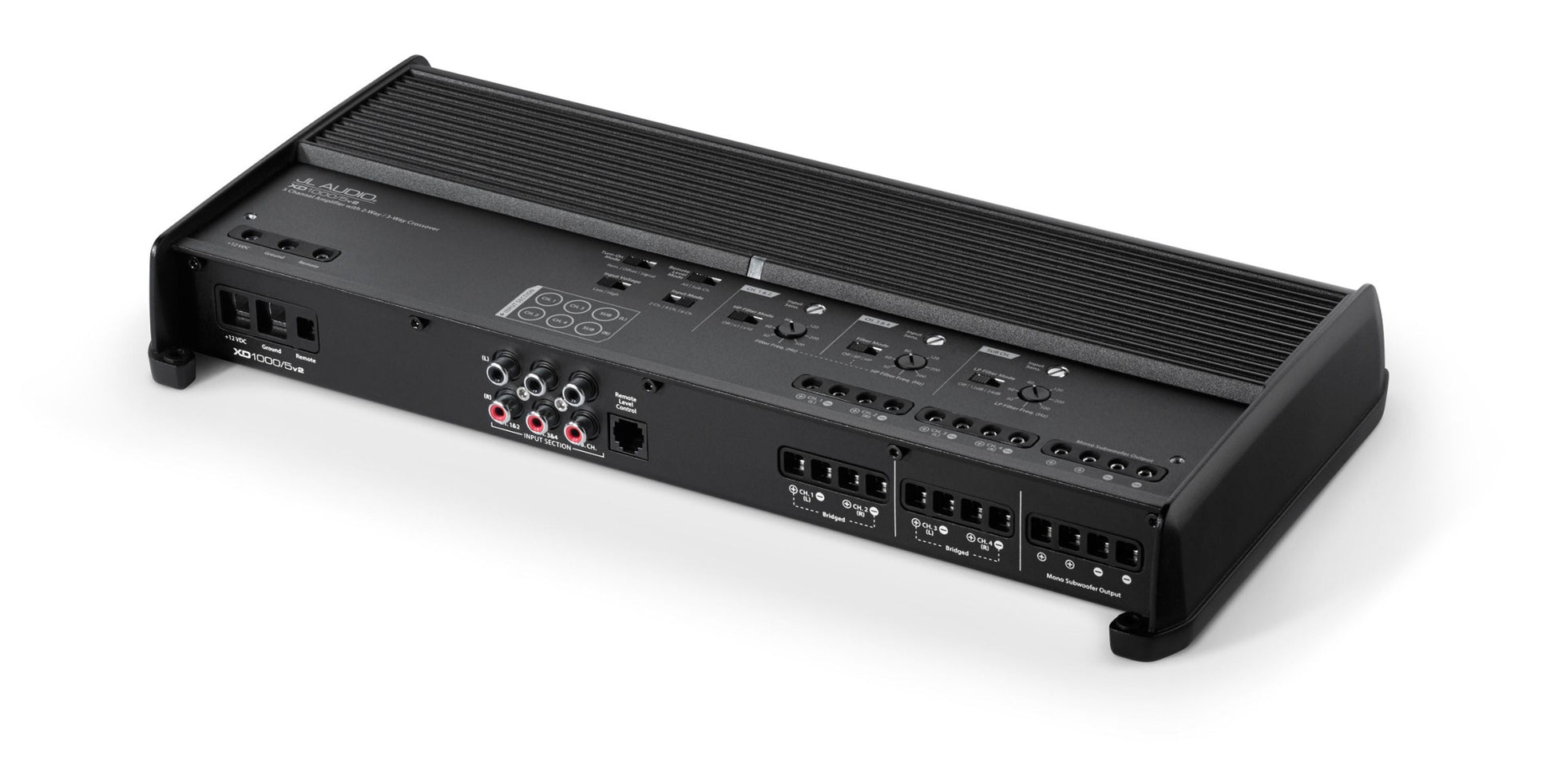

JL Audio XD1000/5v2

5-Channel Class D System Amplifier, 100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V

The XD1000/5v2 delivers up to 1000 W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 600 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching amplifier design.

The XD1000/5v2 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.

The XD1000/5v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

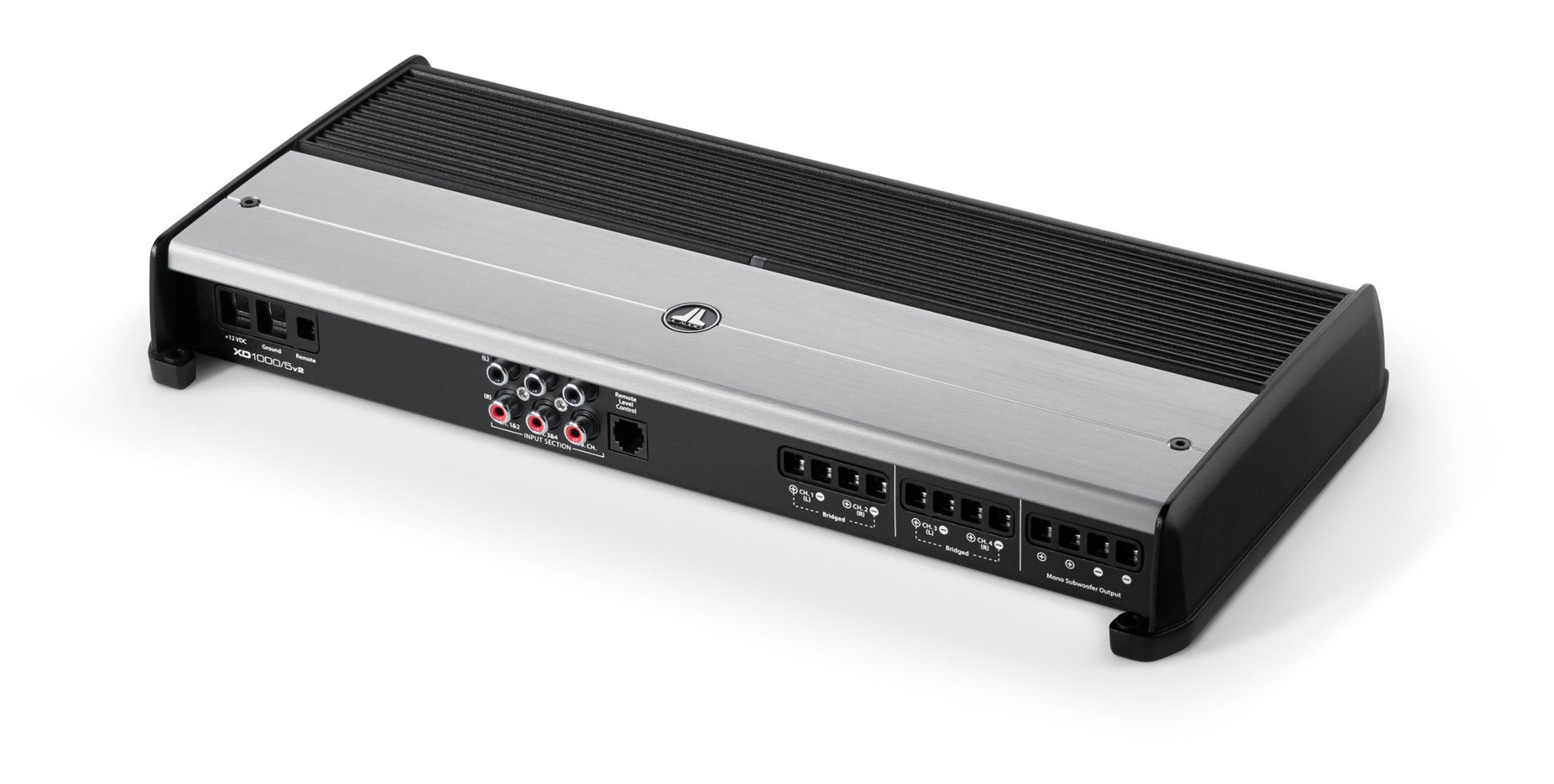

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Rated Continuous (RMS) Power @ 14.4 VMain Channels @ 4 Ω75 W RMS x 4Main Channels @ 2 Ω100 W RMS x 4Main Channels - Bridged @ 4Ω200 W RMS x 2Subwoofer Channel @ 4 Ω400 W RMS x 1Subwoofer Channel @ 3 Ω500 W RMS x 1Subwoofer Channel @ 2 Ω600 W RMS x 1Subwoofer Channel @ 1.5 ΩN/A

Rated Continuous (RMS) Power @ 12.5 VMain Channels @ 4 Ω60 W RMS x 4Main Channels @ 2 Ω90 W RMS x 4Main Channels - Bridged @ 4Ω180 W RMS x 2Subwoofer Channel @ 4 Ω360 W RMS x 1Subwoofer Channel @ 3 Ω480 W RMS x 1Subwoofer Channel @ 2 Ω600 W RMS x 1Subwoofer Channel @ 1.5 ΩN/A

General SpecificationsFrequency Response (Main Channels)12 Hz - 22 kHz (+0, -1dB)Frequency Response (Subwoofer Channel)10 Hz - 1 kHz (+0, -1dB)S/N Ratio, referred to highest rated power (Main Channels)>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 4 Ω>150 / 50 HzDamping Factor @ 2 Ω>75 / 50 HzTHD+N @ Rated Power (Main Channels)<1% @ 2 Ω per Ch.THD+N @ Rated Power (Subwoofer Channels)<1% @ 2 Ω per Ch.Input Voltage Range @ RCA InputsSwitchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)Min.Copper Power / Ground Wire Gauge4 AWG wireFuse Rating80 A (AFS, AGU or MaxiFuse™)

Signal ProcessingFilter Mode(s): Channels 1 & 2 (front)High-Pass onlyFilter Slope(s): Channels 1 & 2 (front)12 dB/octaveFilter Frequency Range: Channels 1 & 2 (front)50 Hz - 5 kHzFilter Mode(s): Channels 3 & 4 (rear)High-Pass or BandpassFilter Slope(s): Channels 3 & 4 (rear)12 dB/octaveFilter Frequency Range: Channels 3 & 450 Hz - 500 HzFilter Mode(s): Subwoofer ChannelLow-Pass onlyFilter Slope(s): Subwoofer Channel12/24 dB/octaveFilter Frequency Range: Subwoofer Channel50 Hz - 500 HzDetented, Calibrated Filter Freq. PotentiometersYesFilter Defeat FunctionYesInfrasonic Filter: Subwoofer ChannelnoneRemote Level ControlOptional (HD-RLC)Remote Level ModesSub Ch. or All ChannelsChannel Input Mode SwitchYes (2/4/6 ch.)Pass-Through Preamp OutputNoneSource Channel Selection for PreOutsN/A

Physical SpecificationsHeight (H)2.05 in / 52 mmWidth (W)14.73 in / 374 mmDepth (D)7.09 in / 180 mm
