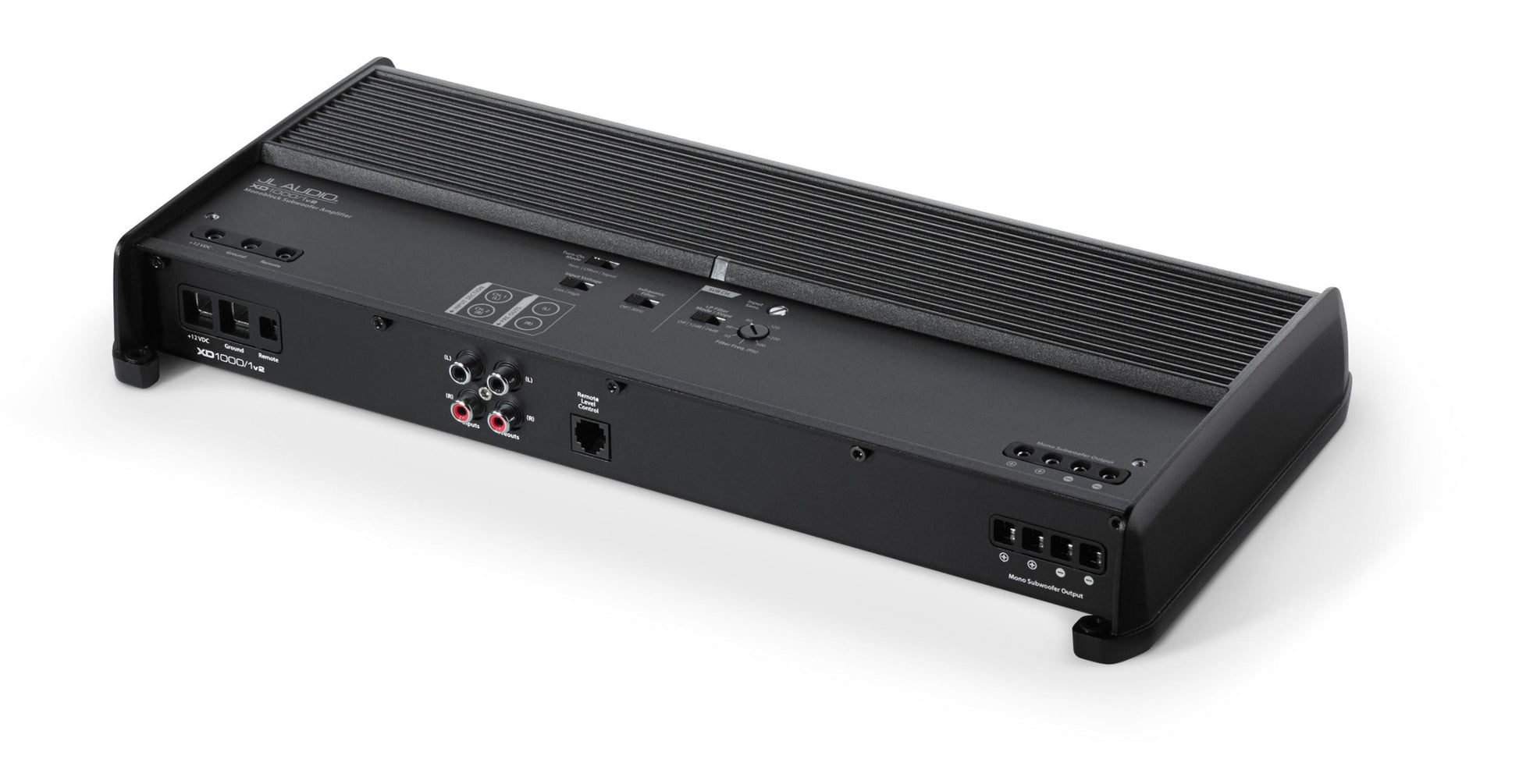

JL Audio XD1000/1v2

JL Audio XD1000/1v2

Contact us for pricing
$817.00 USD
Sale Sold out

XDv2 amplifiers feature hyper-efficient NexDª Class D technology to deliver audiophile-grade performance from within an incredibly compact package.
Advanced thermal management systems and a full complement of studio-grade signal processing features are standard, and an HD-RLC (sold separately)
can be added to all models for remote level control. Available in a wide range of configurations to suit any system design.

View full details

  • Features

    Monoblock Class D Subwoofer Amplifier, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω - 14.4V





    This potent monoblock subwoofer amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. The XD1000/1v2 is capable of delivering 1000 W of continuous power into a 2 ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.

    Designed specifically for subwoofer applications, the XD1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz and a defeatable infrasonic filter (30 Hz, 24 dB/oct.). The XD1000/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

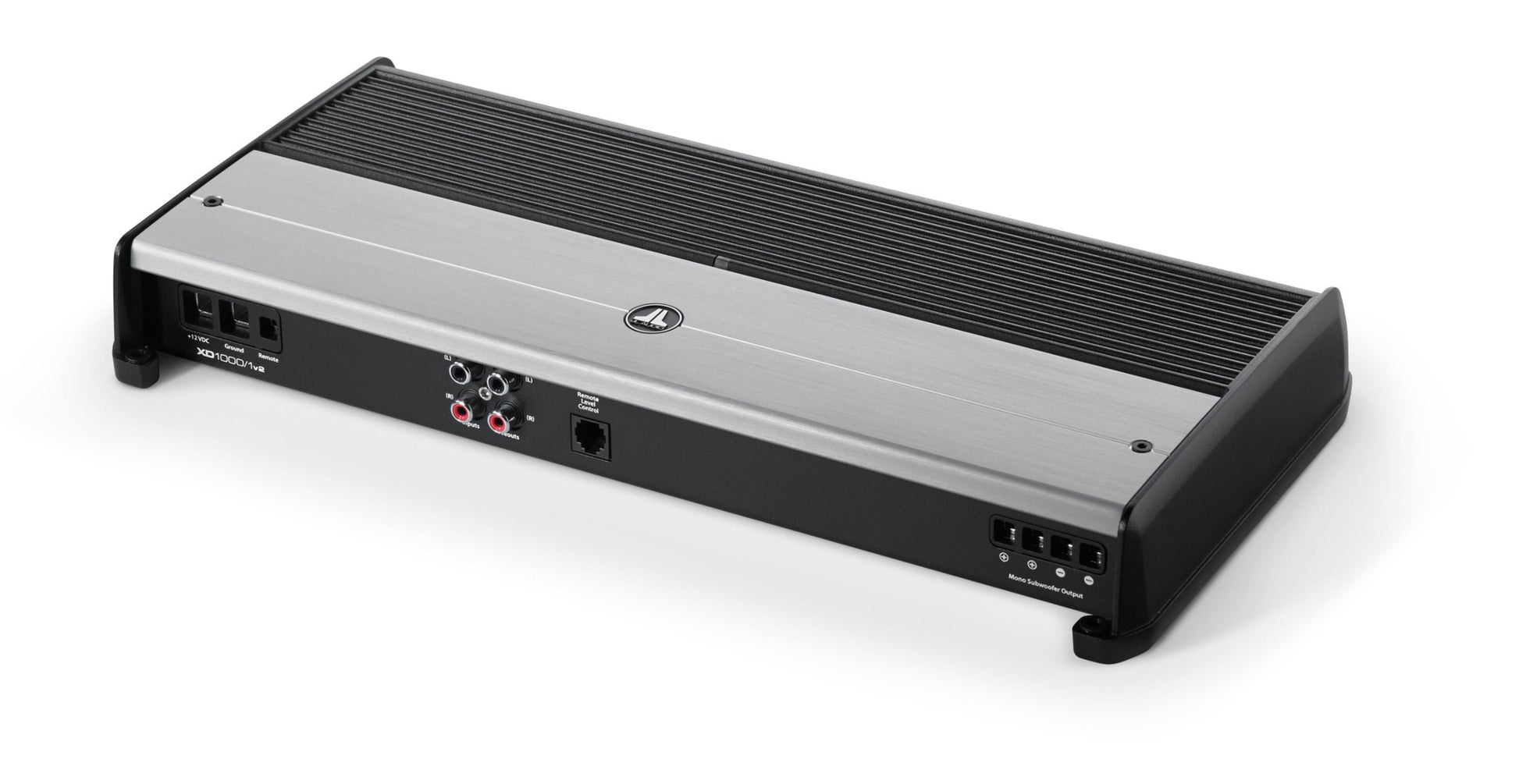

    This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

  • Specifications

    Rated Continuous (RMS) Power @ 14.4 V@ 4 Ω600 W RMS x 1@ 3 Ω800 W RMS x 1@ 2 Ω1000 W RMS x 1@ 1.5 ΩN/A

    Rated Continuous (RMS) Power @ 12.5 V@ 4 Ω500 W RMS x 1@ 3 Ω650 W RMS x 1@ 2 Ω800 W RMS x 1@ 1.5 ΩN/A

    General SpecificationsFrequency Response7 Hz - 500 Hz (+0, -1dB)S/N Ratio, referred to highest rated power>83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W>53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 4 Ω>1000 / 50 HzDamping Factor @ 2 Ω>500 / 50 HzTHD+N @ Rated Power<1% @ 2 Ω per Ch.Input Voltage Range @ RCA InputsSwitchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)Min.Copper Power / Ground Wire Gauge4 AWG wireFuse Rating80 A (AFS, AGU or MaxiFuse™)

    Signal ProcessingFilter Mode(s)Low-Pass onlyFilter Slope(s)12/24 dB/octaveFilter Frequency Range50 Hz - 500 HzDetented, Calibrated Filter Freq. PotentiometerYesFilter Defeat FunctionYesInfrasonic Filter30 Hz, defeatableBass Boost EQNoOutput Polarity SwitchNoRemote Subwoofer Level ControlOptional (HD-RLC)Remote Bass EQ Boost ControlNoPass-Through Preamp OutputBuffered

    Physical SpecificationsHeight (H)2.05 in / 52 mmWidth (W)14.73 in / 374 mmDepth (D)7.09 in / 180 mm
