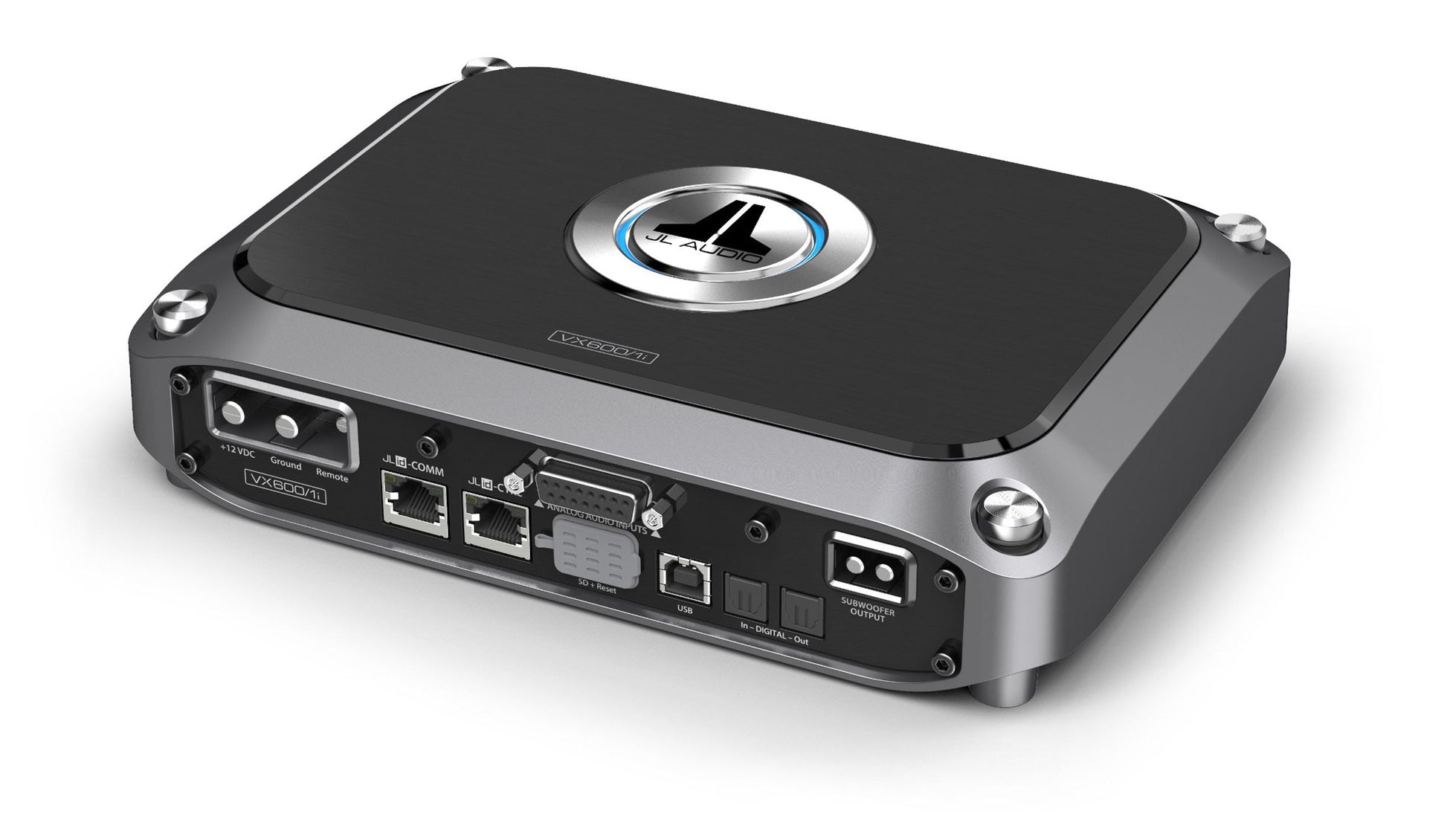

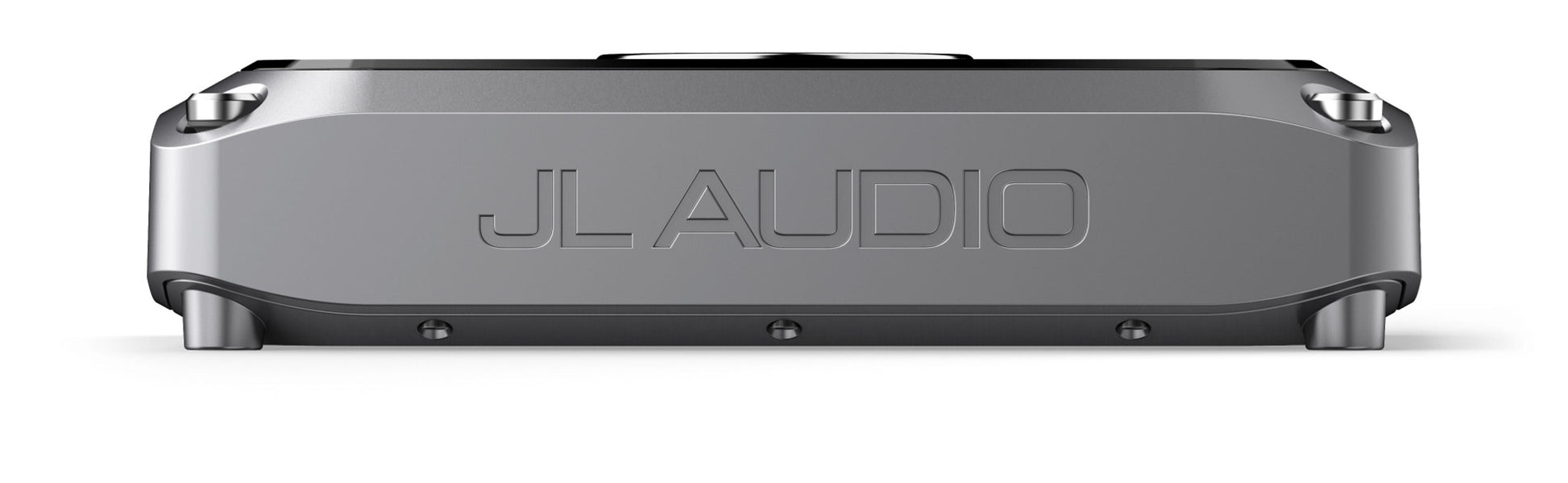

JL Audio VX600/1i

Monoblock Class D Subwoofer Amplifier with Integrated DSP, 600 W x 1 @ 2 Ω / 400 W x 1 @ 4 Ω - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

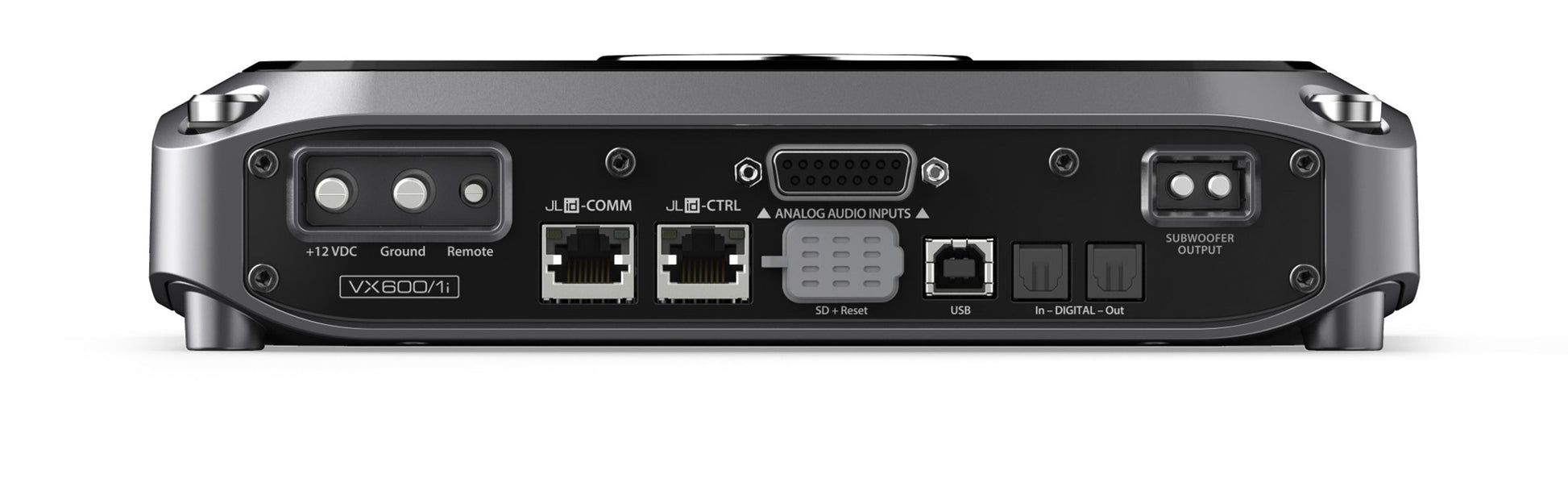

The VX600/1i monoblock subwoofer amplifier outputs up to 400 watts into 4 ohms, or a staggering 600 watts into 2 ohms. A specialized, low-frequency version of our NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

Features:

Unprecedented, Onboard DSP Tuning Power!

• Powerful DSP permits optimizing each channel’s timing, frequency response and output levels, for exceptional sound quality.

• TüN™ Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN™ software is available for computers and most handheld devices.


2nd-Gen NexD2™ Switching Amplifier Technology

• Advanced, high-speed switching technology delivers reference-grade power and efficiency.
• DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.


Ultra-Versatile Analog and Digital Inputs/Outputs


• Differential-Balanced Analog Inputs accept speaker level signals up to 16V RMS, including those from factory systems. Delivers outstanding noise rejection to prevent alternator whine and other noises.
• Optical Digital (Toslink) Inputs permit direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
• Analog and Digital Pre-Outs (pass-through or fully configurable): RCA Pre-Outs (4V RMS Max) and Optical (Toslink) Output at 24 bit/96 kHz
• Automatic turn-on options via signal-sensing or DC-offset sensing


JLid™ System Command and Control with Networking Capabilities

• Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid™ accessories, including:

DRC-100/DRC-205(Digital Remote Controllers): Offers convenient DSP preset selection and level adjustments from the driver’s seat.VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS® or Android® device.
VXi-HUB Optical Network Hub:Provides network connectivity for up to six VXi amplifiers, allowing full-system DRC control and preset selection. Up to two VXi-HUBs can be daisy-chained to control up to ten VXi amplifiers.

Rated Continuous (RMS) Power @ 14.4 V@ 4 Ω400 W RMS x 1@ 3 Ω500 W RMS x 1@ 2 Ω600 W RMS x 1@ 1.5 ΩN/A

Rated Continuous (RMS) Power @ 12.5 V@ 4 Ω300 W RMS x 1@ 3 Ω400 W RMS x 1@ 2 Ω500 W RMS x 1@ 1.5 ΩN/A

General SpecificationsFrequency Response12 Hz - 500 Hz (+0, -1dB)S/N Ratio, referred to highest rated power(Analog Inputs)90 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W(Analog Inputs)64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to highest rated power(Digital Inputs)90 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W(Digital Inputs)64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 4 Ω>125 / 50 HzDamping Factor @ 2 Ω>125 / 50 HzTHD+N @ Rated Power<1% @ 2 Ω per Ch.Input Voltage Range @ RCA Inputs200 mV - 16 V RMSMin.Copper Power / Ground Wire Gauge4 AWG wireFuse Rating50 A (AFS, AGU or MaxiFuse™)

Physical SpecificationsHeight (H)2.12 in / 54 mmWidth (W)9.02 in / 229 mmDepth (D)6.62 in / 168 mmNet Weight5.0 lb / 2.27 kg
