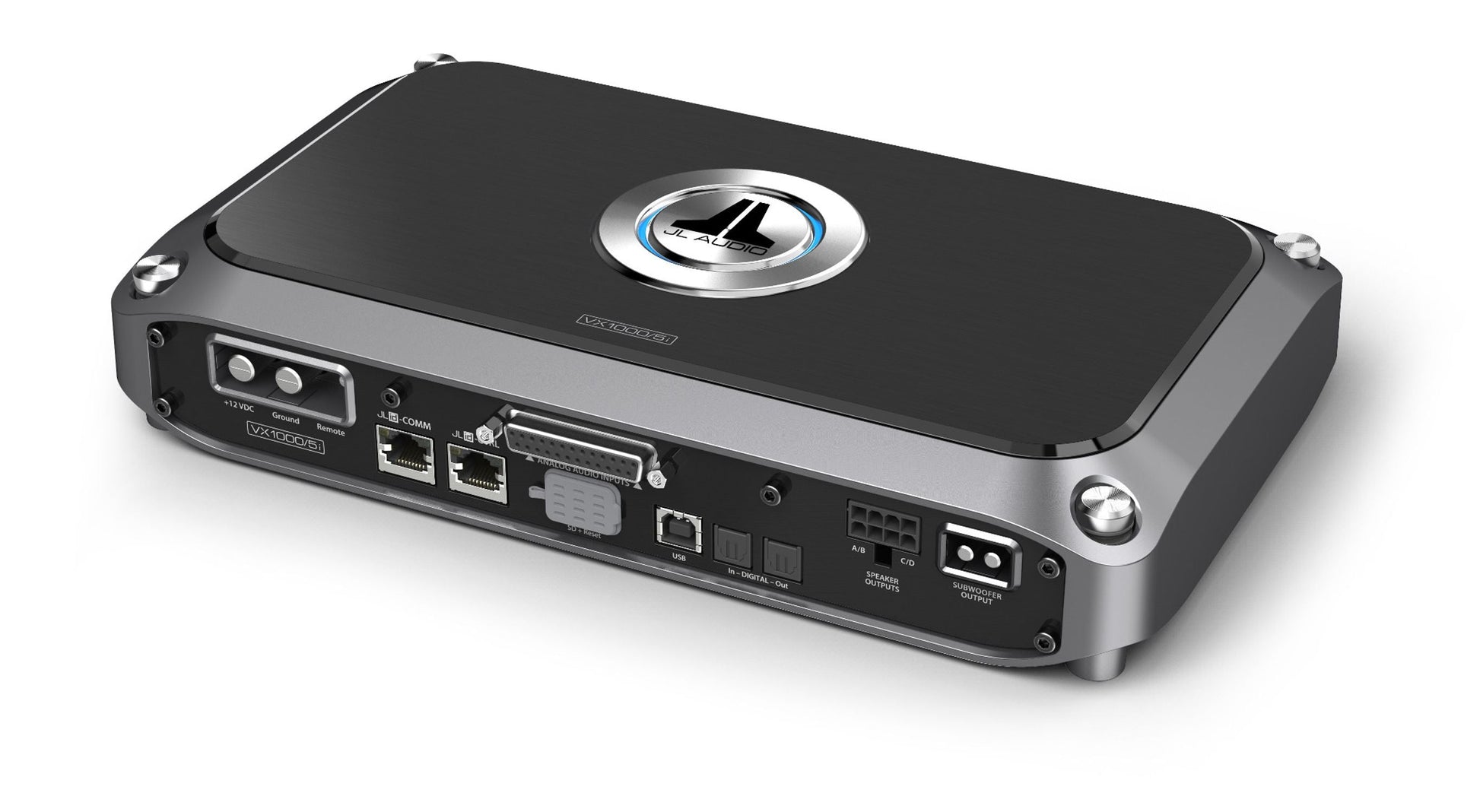

JL Audio VX1000/5i

5-Channel Class D System Amplifier with Integrated DSP, 100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing our second generation NexD2™ amplifier technology, the VX1000/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.

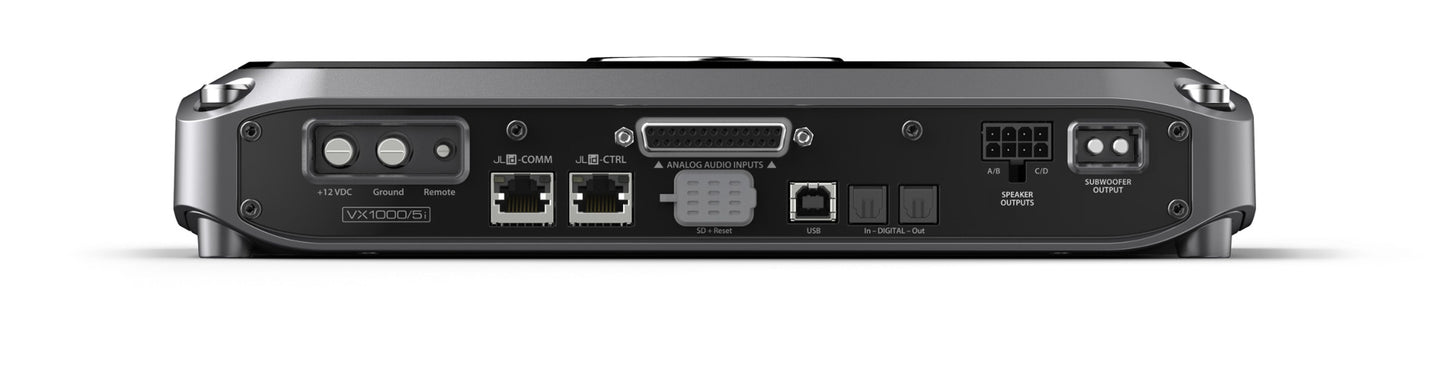

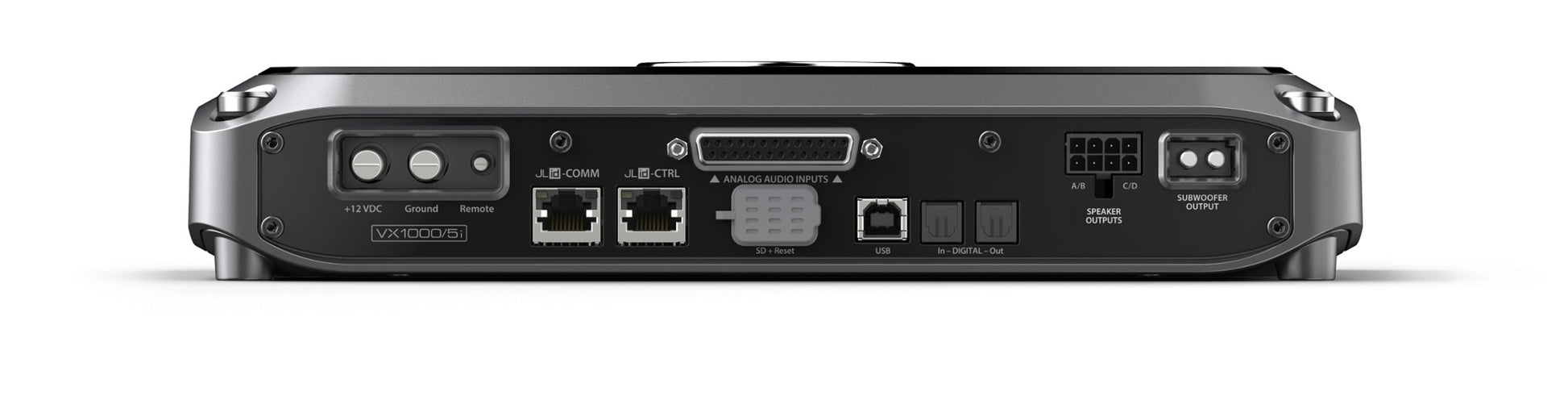

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

Features:

Unprecedented, Onboard DSP Tuning Power!

• Powerful DSP permits optimizing each channel’s timing, frequency response and output levels, for exceptional sound quality.

• TüN™ Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN™ software is available for computers and most handheld devices.


2nd-Gen NexD2™ Switching Amplifier Technology

• Advanced, high-speed switching technology delivers reference-grade power and efficiency.
• DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.


Ultra-Versatile Analog and Digital Inputs/Outputs


• Differential-Balanced Analog Inputs accept speaker level signals up to 16V RMS, including those from factory systems. Delivers outstanding noise rejection to prevent alternator whine and other noises.
• Optical Digital (Toslink) Inputs permit direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
• Analog and Digital Pre-Outs (pass-through or fully configurable): RCA Pre-Outs (4V RMS Max) and Optical (Toslink) Output at 24 bit/96 kHz
• Automatic turn-on options via signal-sensing or DC-offset sensing


JLid™ System Command and Control with Networking Capabilities

• Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid™ accessories, including:

DRC-100/DRC-205(Digital Remote Controllers): Offers convenient DSP preset selection and level adjustments from the driver’s seat.VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS® or Android® device.
VXi-HUB Optical Network Hub:Provides network connectivity for up to six VXi amplifiers, allowing full-system DRC control and preset selection. Up to two VXi-HUBs can be daisy-chained to control up to ten VXi amplifiers.

Rated Continuous (RMS) Power @ 14.4 VMain Channels @ 4 Ω75 W RMS x 4Main Channels @ 2 Ω100 W RMS x 4Main Channels - Bridged @ 4Ω200 W RMS x 2Subwoofer Channel @ 4 Ω400 W RMS x 1Subwoofer Channel @ 3 Ω500 W RMS x 1Subwoofer Channel @ 2 Ω600 W RMS x 1Subwoofer Channel @ 1.5 ΩN/A

Rated Continuous (RMS) Power @ 12.5 VMain Channels @ 4 Ω60 W RMS x 4Main Channels @ 2 Ω90 W RMS x 4Main Channels - Bridged @ 4Ω180 W RMS x 2Subwoofer Channel @ 4 Ω360 W RMS x 1Subwoofer Channel @ 3 Ω480 W RMS x 1Subwoofer Channel @ 2 Ω600 W RMS x 1Subwoofer Channel @ 1.5 ΩN/A

General SpecificationsFrequency Response (Main Channels)12 Hz - 21 kHz (+0, -1dB)Frequency Response (Subwoofer Channel)12 Hz - 1 kHz (+0, -1dB)S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels)99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels)99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel)99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W (Analog Inputs - Main Channels)80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel)72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels)100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel)99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W (Digital Inputs - Main Channels)81 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel)73 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 2 Ω>50 / 50 HzDamping Factor @ 4 Ω>150 / 50 HzTHD+N @ Rated Power (Main Channels)<1% @ 2 Ω per Ch.THD+N @ Rated Power (Subwoofer Channels)<1% @ 2 Ω per Ch.Input Voltage Range @ RCA Inputs200 mV - 16 V RMSMin.Copper Power / Ground Wire Gauge4 AWG wireFuse Rating80 A (AFS, AGU or MaxiFuse™)

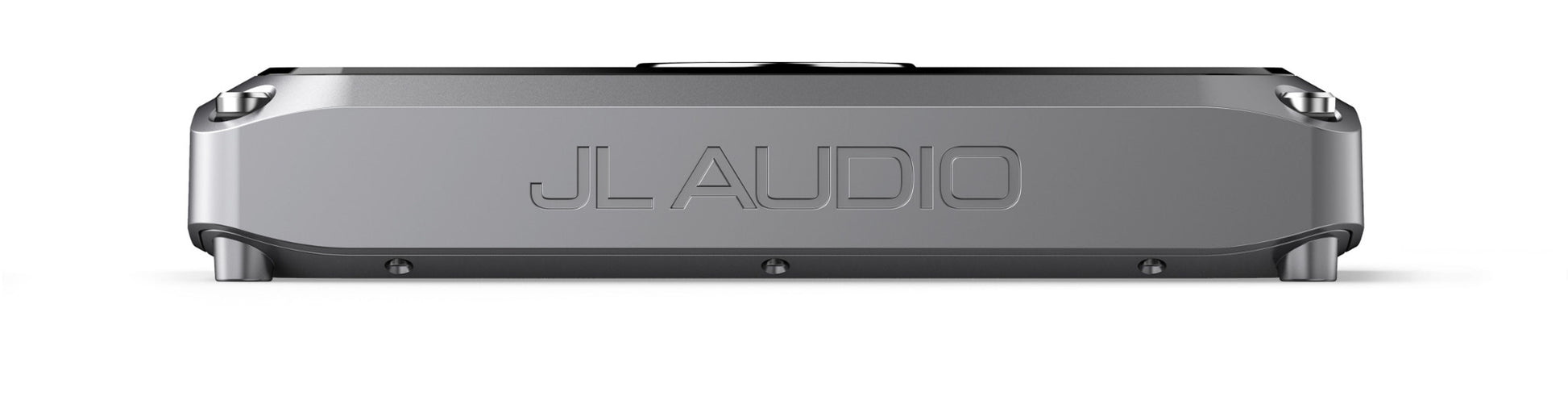

Physical SpecificationsHeight (H)2.12 in / 54 mmWidth (W)11.32 in / 287 mmDepth (D)6.62 in / 168 mmNet Weight6.45 lb / 2.93 kg
