JL Audio C3-650cw

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

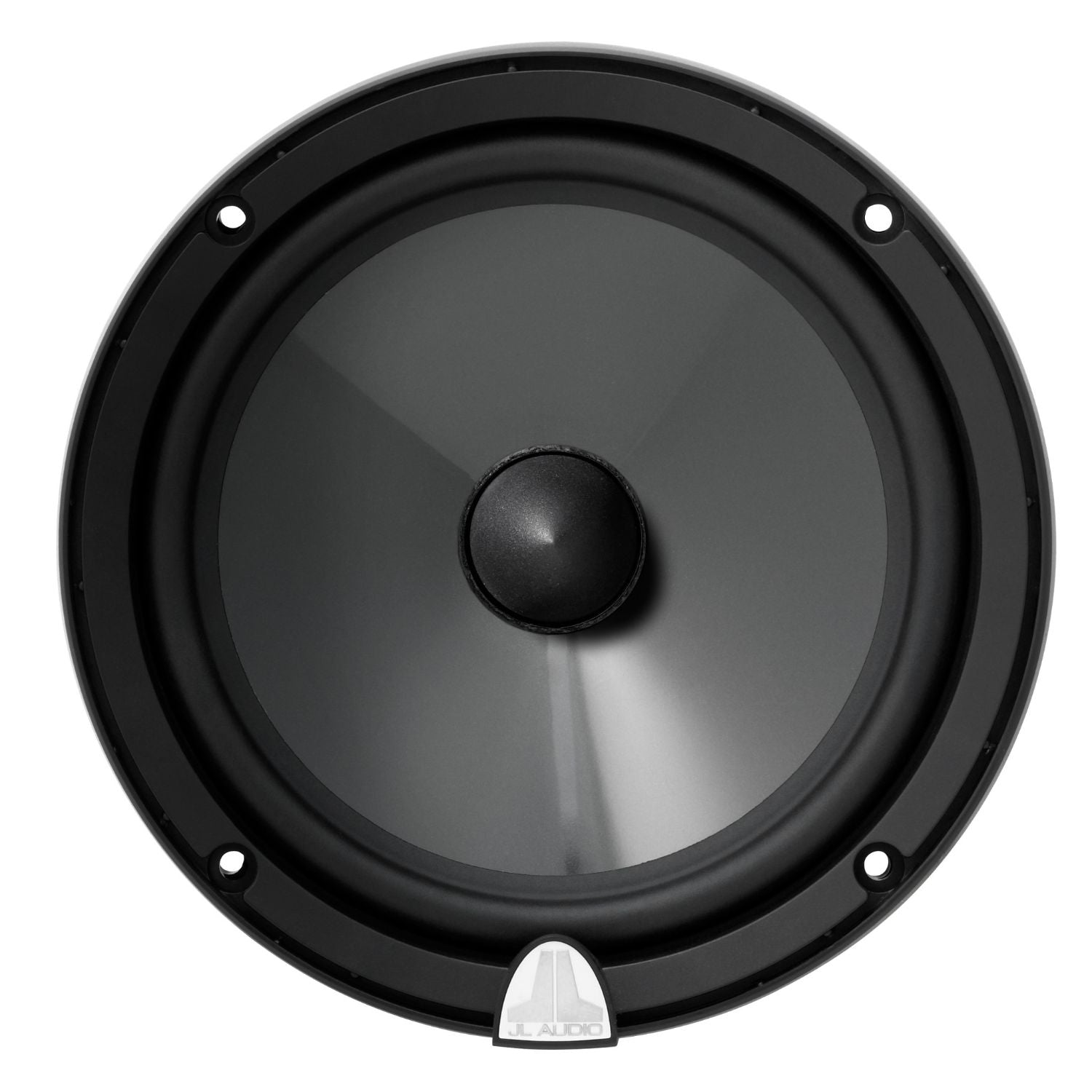

The C3-650cw is a 6.5-inch (165 mm) component woofer with an oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Powerful

Sold individually.

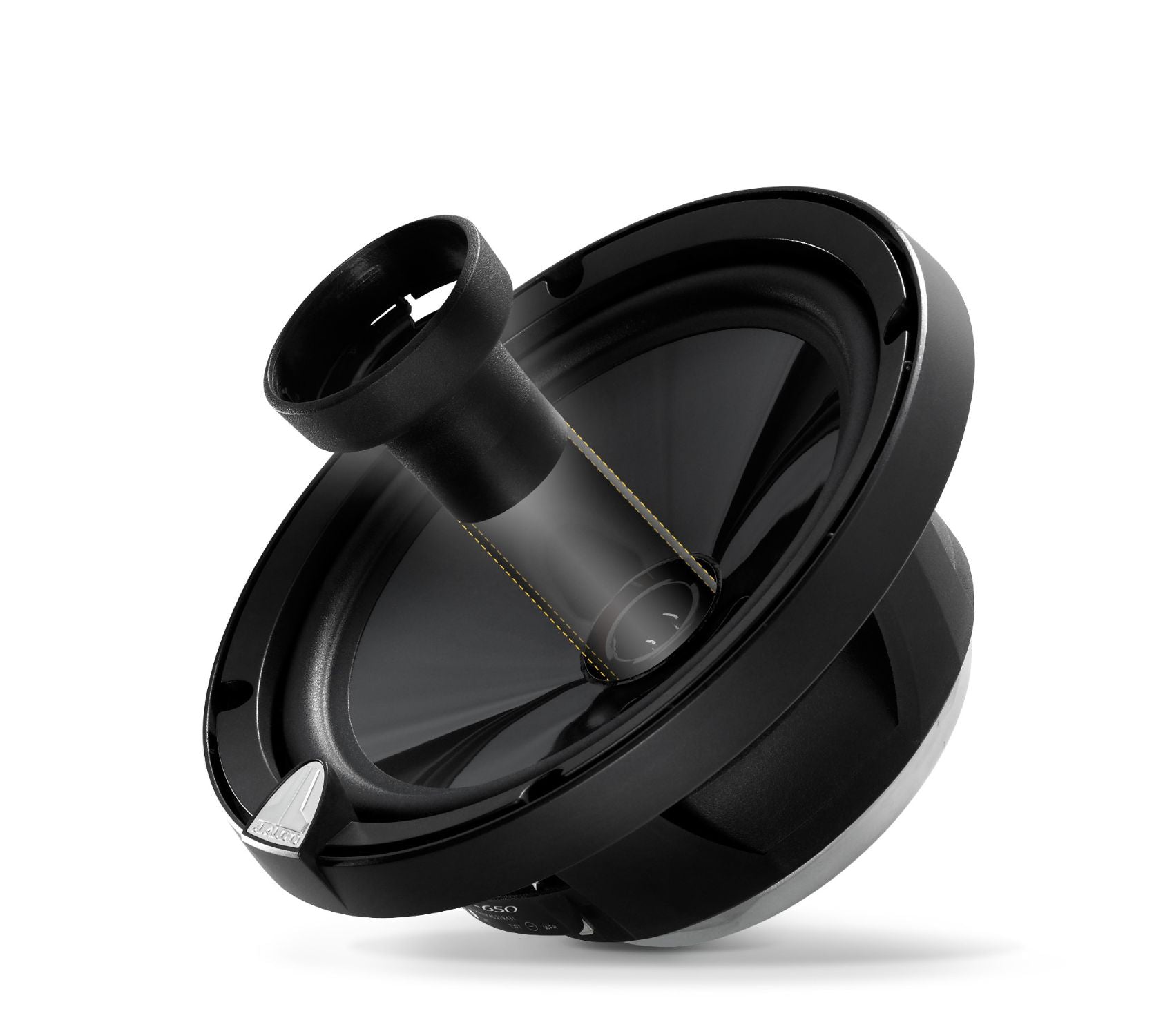

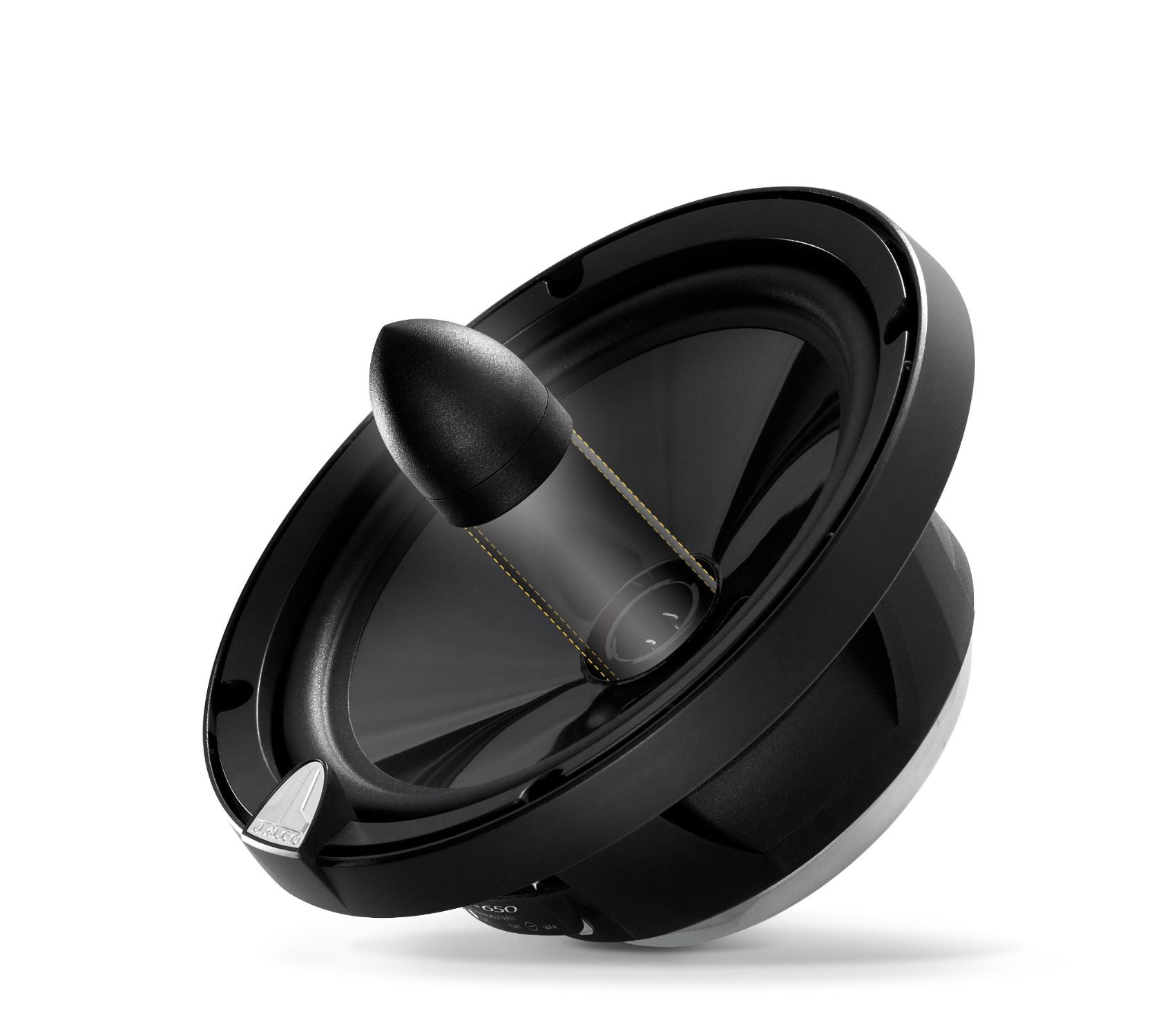

Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).

General SpecificationsContinuous Power Handling (RMS)75 WRecommended Amplifier Power (RMS)25 - 150 W / Ch.System Efficiency90.0 dB @ 1 W / 1 mSystem Nominal Impedance4 ΩSystem Frequency Response48 Hz - 25 KHz ± 3 dB

Woofer Physical SpecificationsFrame Outer Diameter (A)6.50 in / 165 mmGrille Tray Outer Diameter (B)6.74 in / 171 mmMotor Outer Diameter (C)4.08 in / 104 mmFrontal Coaxial Tweeter Protrusion* (D)0.75 in / 19 mmFrontal Grille Protrusion** (E)1.03 in / 26 mmMounting Hole Diameter (F)5.56 in / 141 mmMounting Depth (G)2.55 in / 65 mm

*Frontal coaxial tweeter protrusion measured from mounting surface
**Frontal grille protrusion measured from mounting surface
