JL Audio C3-600cw
JL Audio C3-600cw
Share
-
Features
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600cw expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.

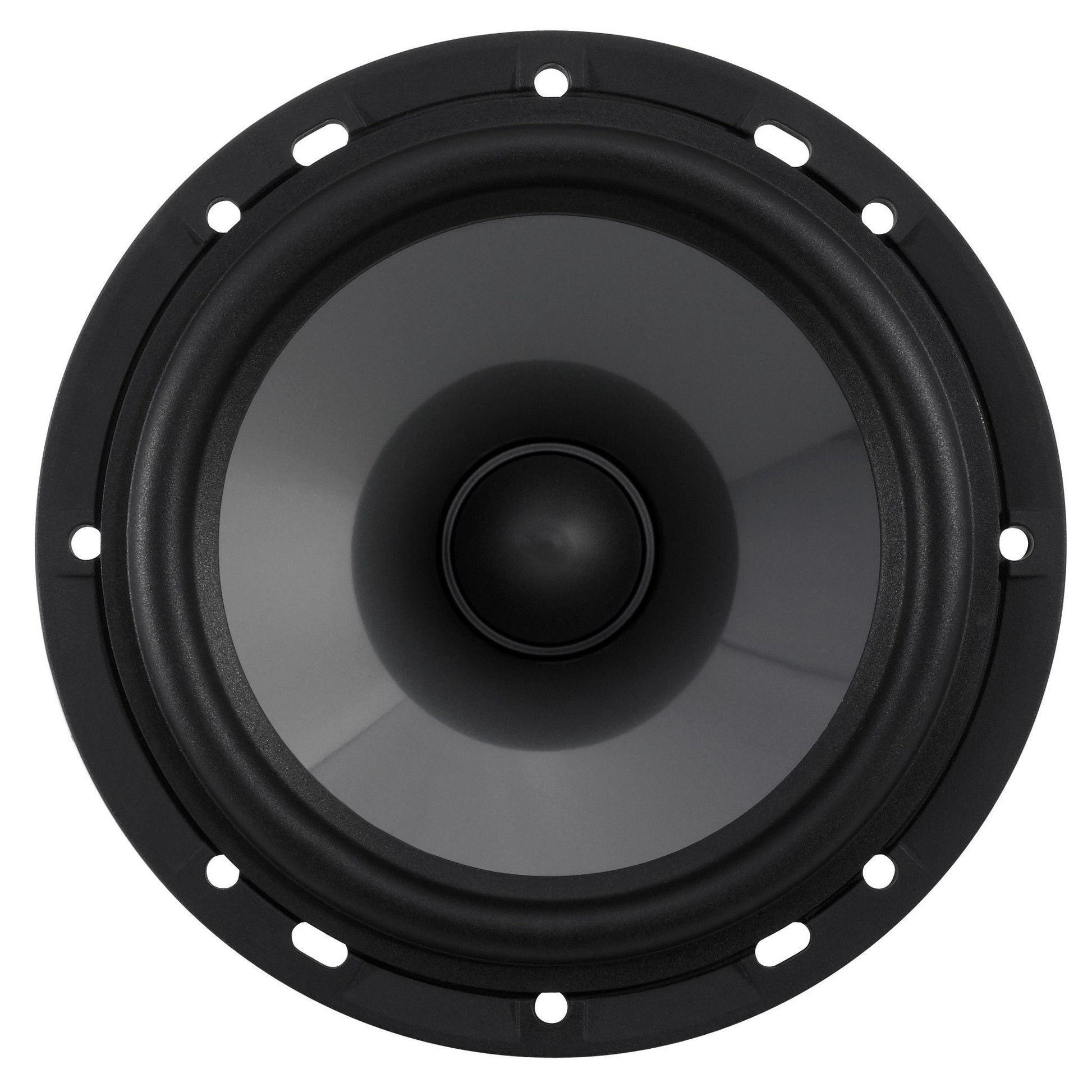

The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.

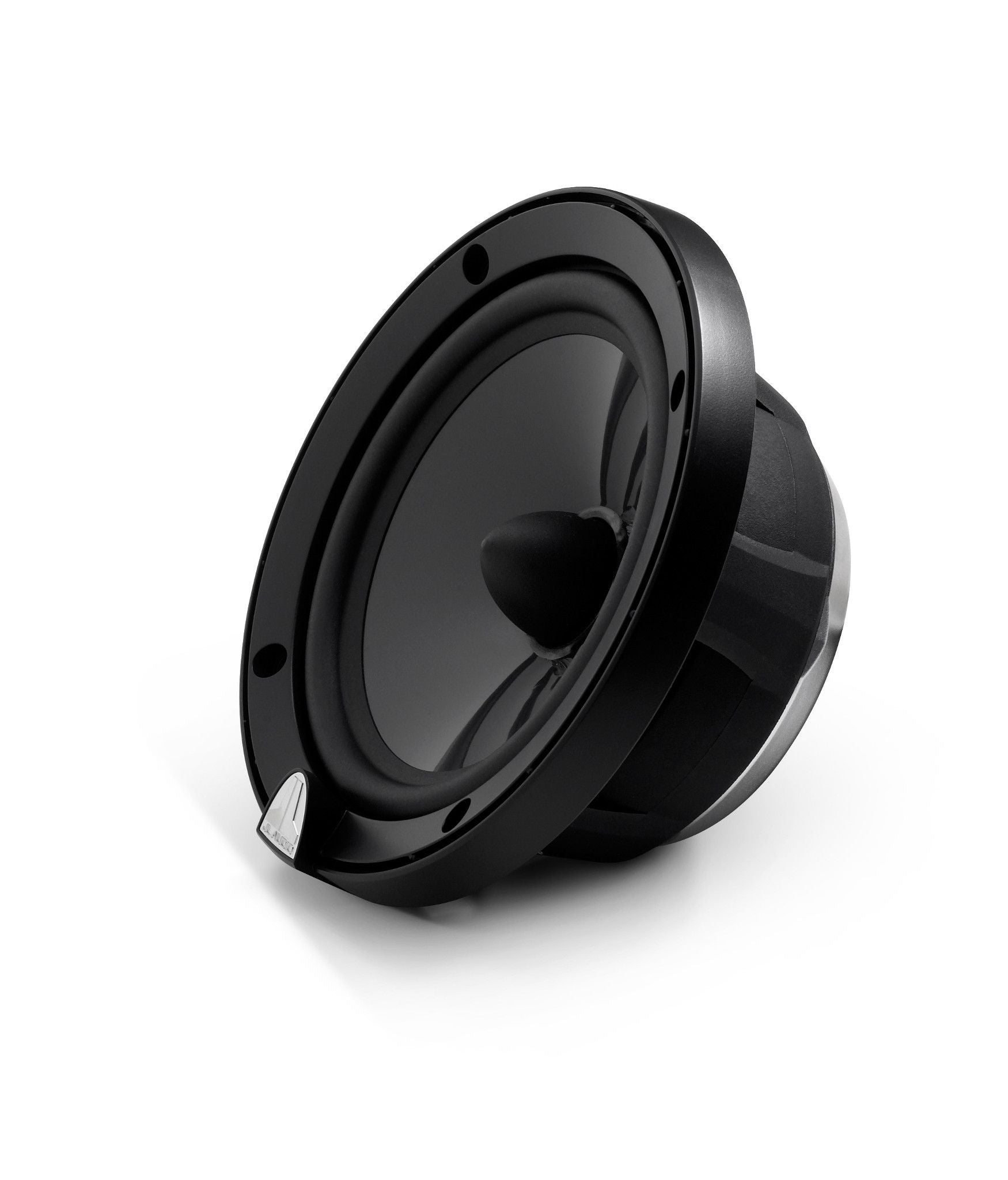

Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
-
Specifications
General SpecificationsContinuous Power Handling (RMS)75 WRecommended Amplifier Power (RMS)25 - 150 W / Ch.System Efficiency89.5 dB @ 1 W / 1 mSystem Nominal Impedance4 ΩSystem Frequency Response50 Hz - 25 KHz ± 3 dB
Woofer Physical SpecificationsFrame Outer Diameter (A)6.21 in. / 157.7 mmGrille Tray Outer Diameter (B)6.46 in. / 164.1 mmMotor Outer Diameter (C)4.08 in. / 103.6 mmFrontal Coaxial Tweeter Protrusion* (D)0.81 in. / 20.6 mmFrontal Grille Protrusion** (E)1.03 in. / 26.2 mmMounting Hole Diameter (F)5.00 in. / 127 mmMounting Depth (G)2.49 in. / 63 mm
*Frontal coaxial tweeter protrusion measured from mounting surface
**Frontal grille protrusion measured from mounting surface
