JL Audio C3-570

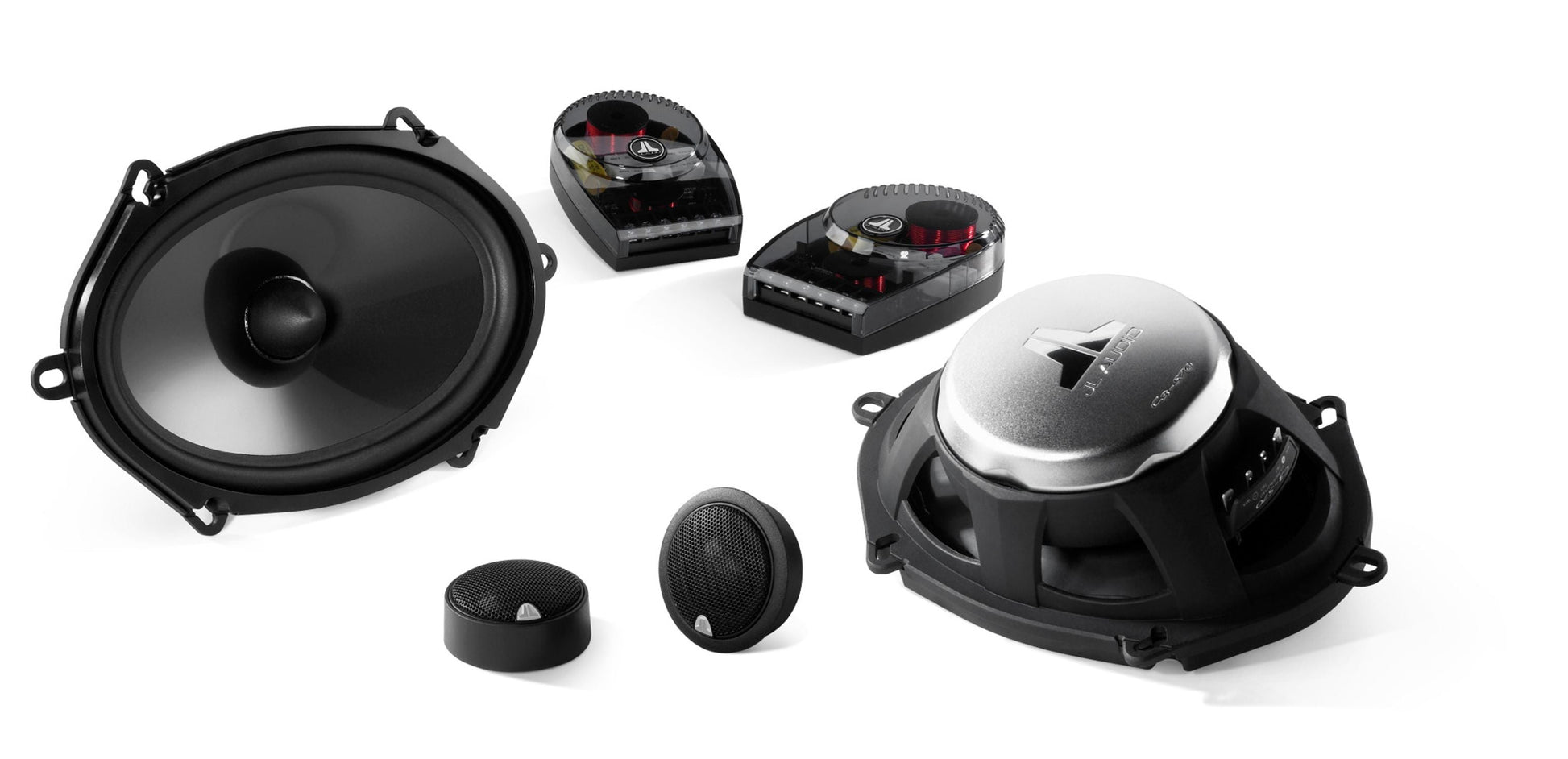

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.

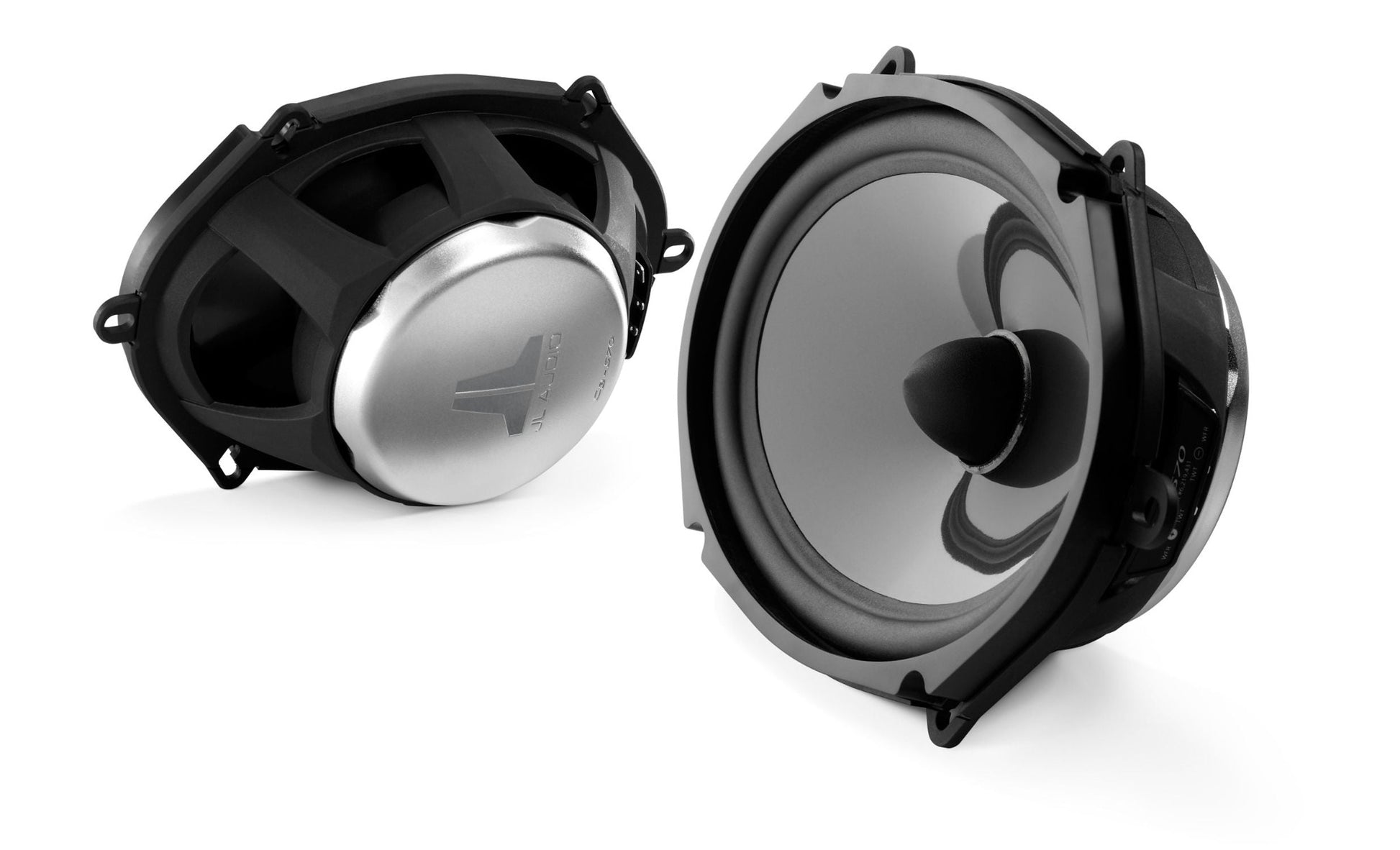

The C3-570 system features 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

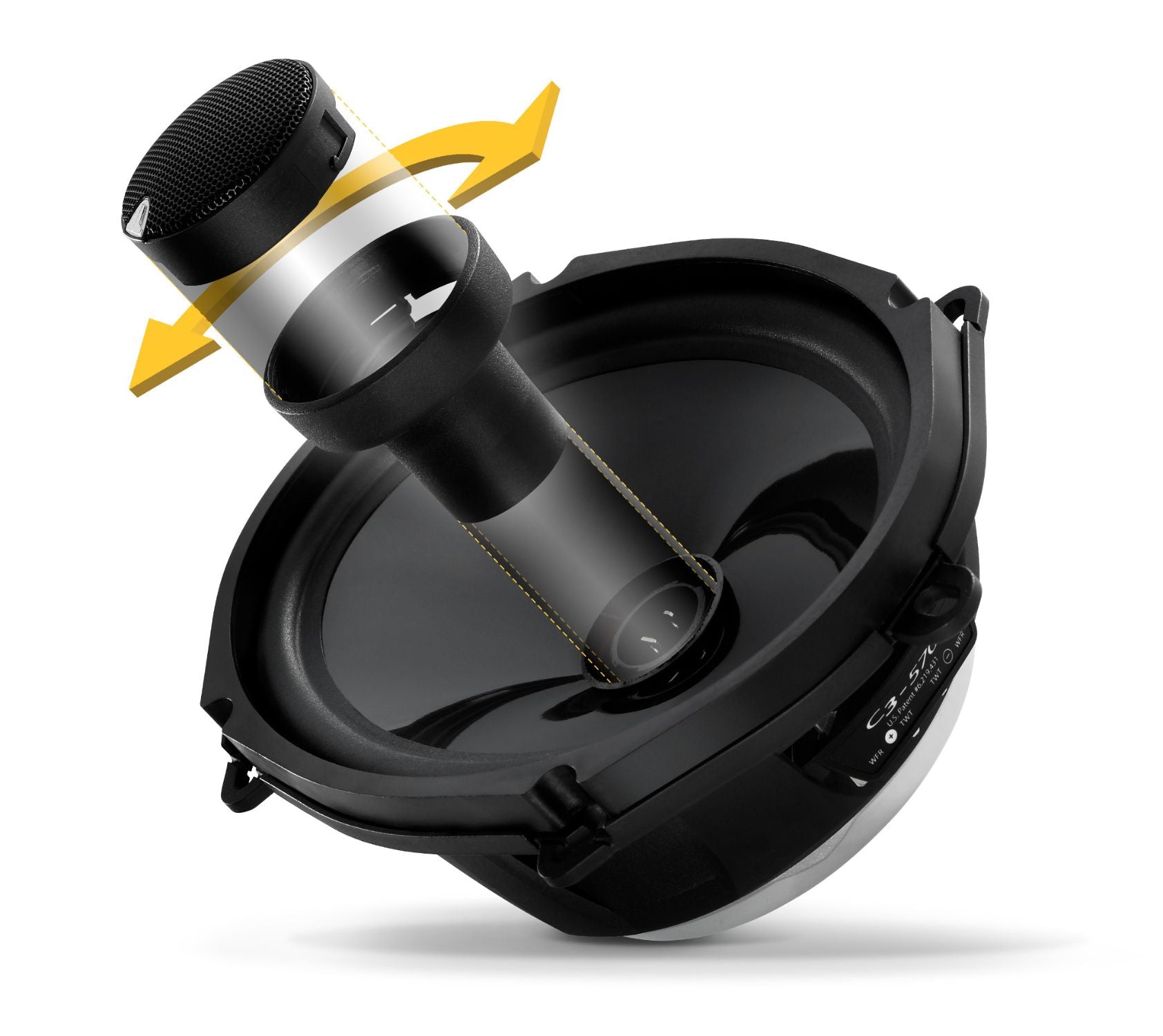

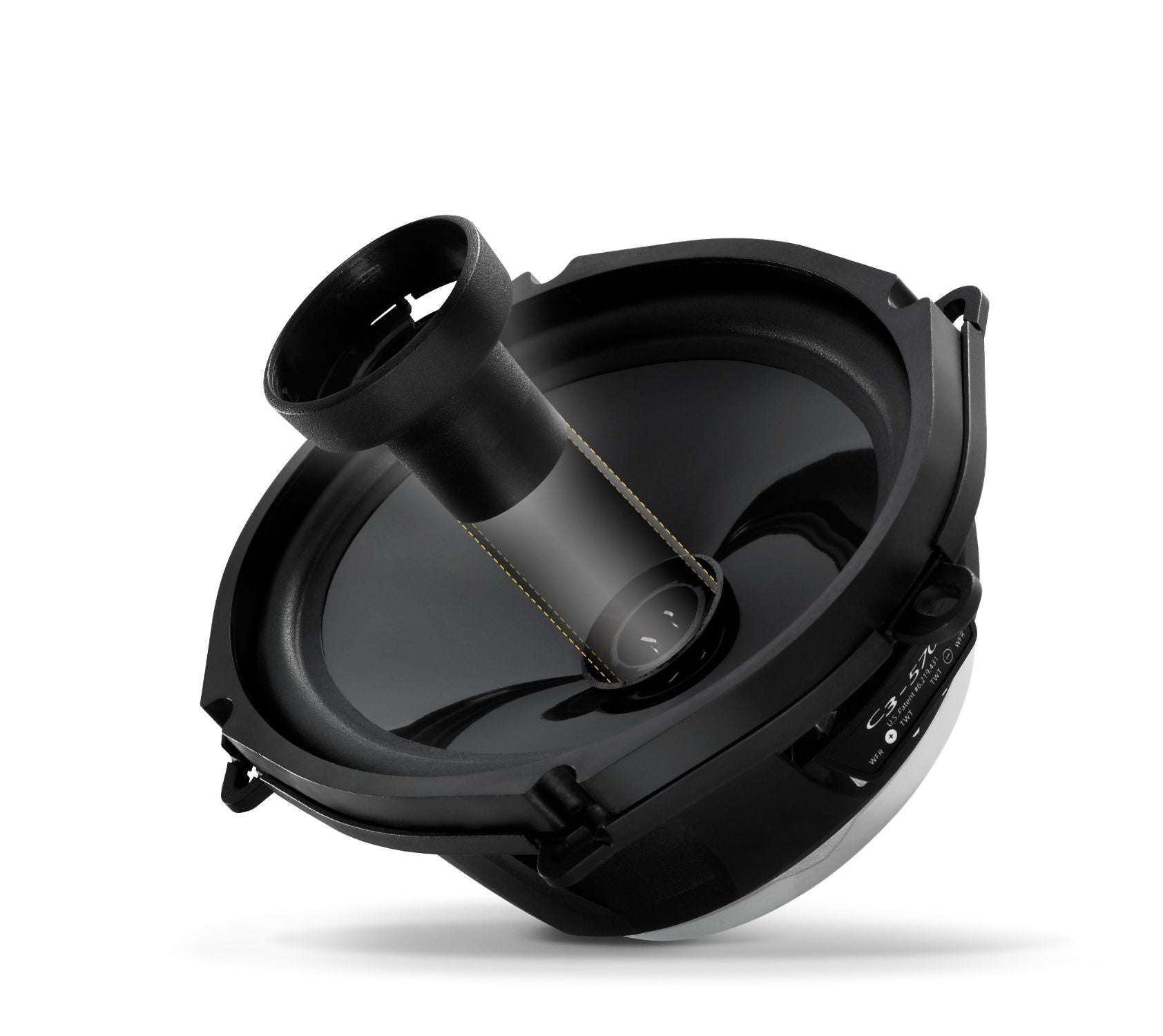

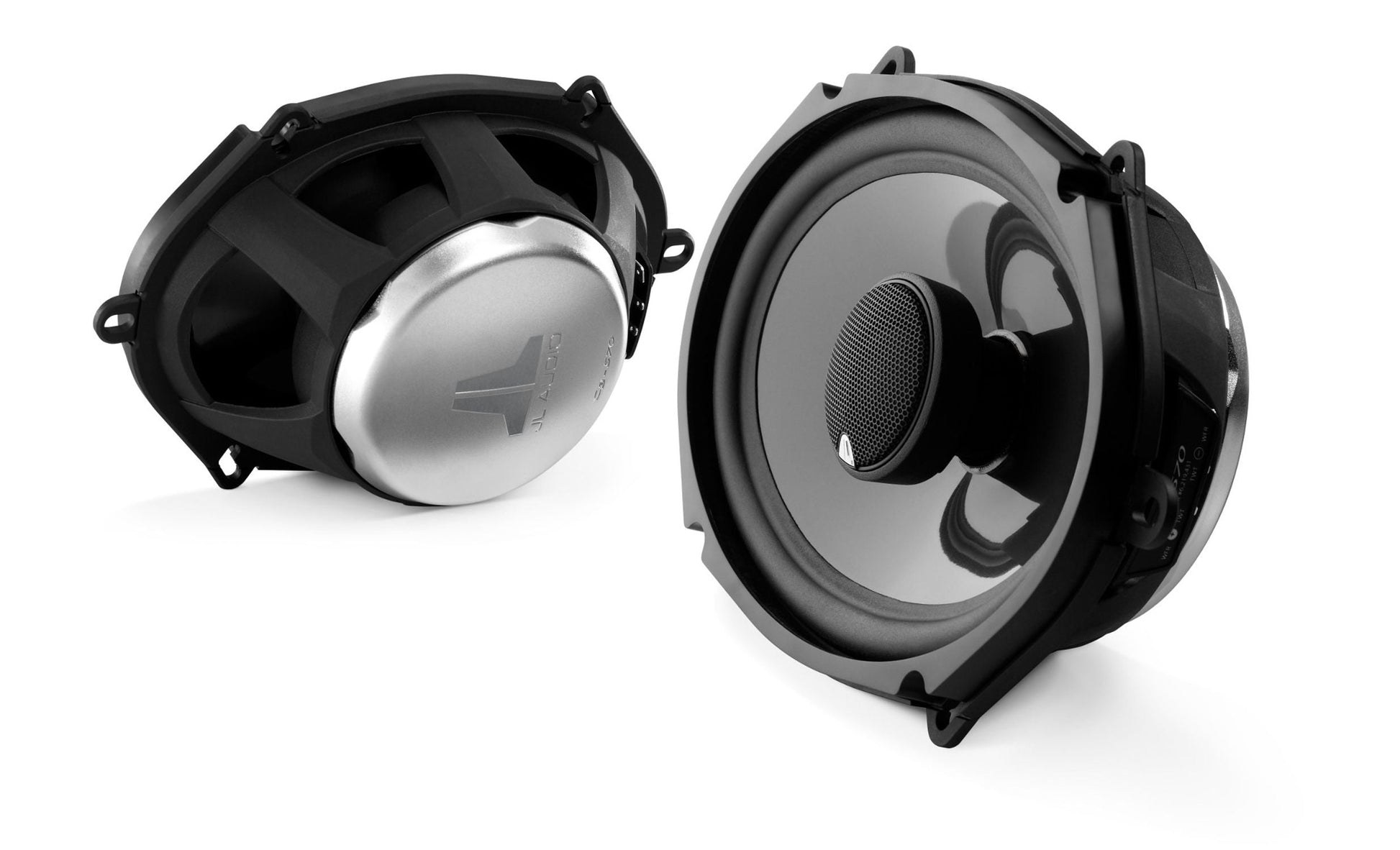

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

Woofer grilles are not available for this product.

Sonic character: Clean and Powerful

Sold as a pair.

General SpecificationsContinuous Power Handling (RMS)75 WRecommended Amplifier Power (RMS)25 - 150 W / Ch.System Efficiency90.0 dB @ 1 W / 1 mSystem Nominal Impedance4 ΩSystem Frequency Response48 Hz - 25 KHz ± 3 dB

Woofer Physical SpecificationsFrame Outer Diameter* (A)5.52 x 7.68 in / 140 x 195 mmGrille Tray Outer Diameter (B)N/AMotor Outer Diameter (C)4.08 in / 104 mmFrontal Coaxial Tweeter Protrusion** (D)0.78 in / 20 mmFrontal Grille Protrusion (E)N/AMounting Hole Diameter (F)N/AMounting Depth (G)2.52 in / 64 mm

*Does not take into account mounting tabs
**Frontal coaxial tweeter protrusion measured from mounting surface

Tweeter Physical SpecificationsFlush Mount Fixture Diameter (A1)2.12 in / 54 mmSurface Mount Fixture Diameter (A2)1.93 in / 49 mmFlush Mount Mounting Hole Diameter (B)1.875 in / 48 mmFlush Mount Fixture Mounting Depth (C)0.71 in / 18 mmFlush Mount Tweeter Frontal Protrusion (D1)0.32 in / 8 mmSurface Mount Tweeter Frontal Protrusion (D2)0.95 in / 24 mm

Crossover Physical SpecificationsWidth (W)3.36 in / 85 mmHeight (H)1.44 in / 37 mmDepth (D)4.72 in / 120 mm
