JL Audio C3-525cw

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

The C3-525cw is a 5.25-inch (130 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Powerful

Sold individually.

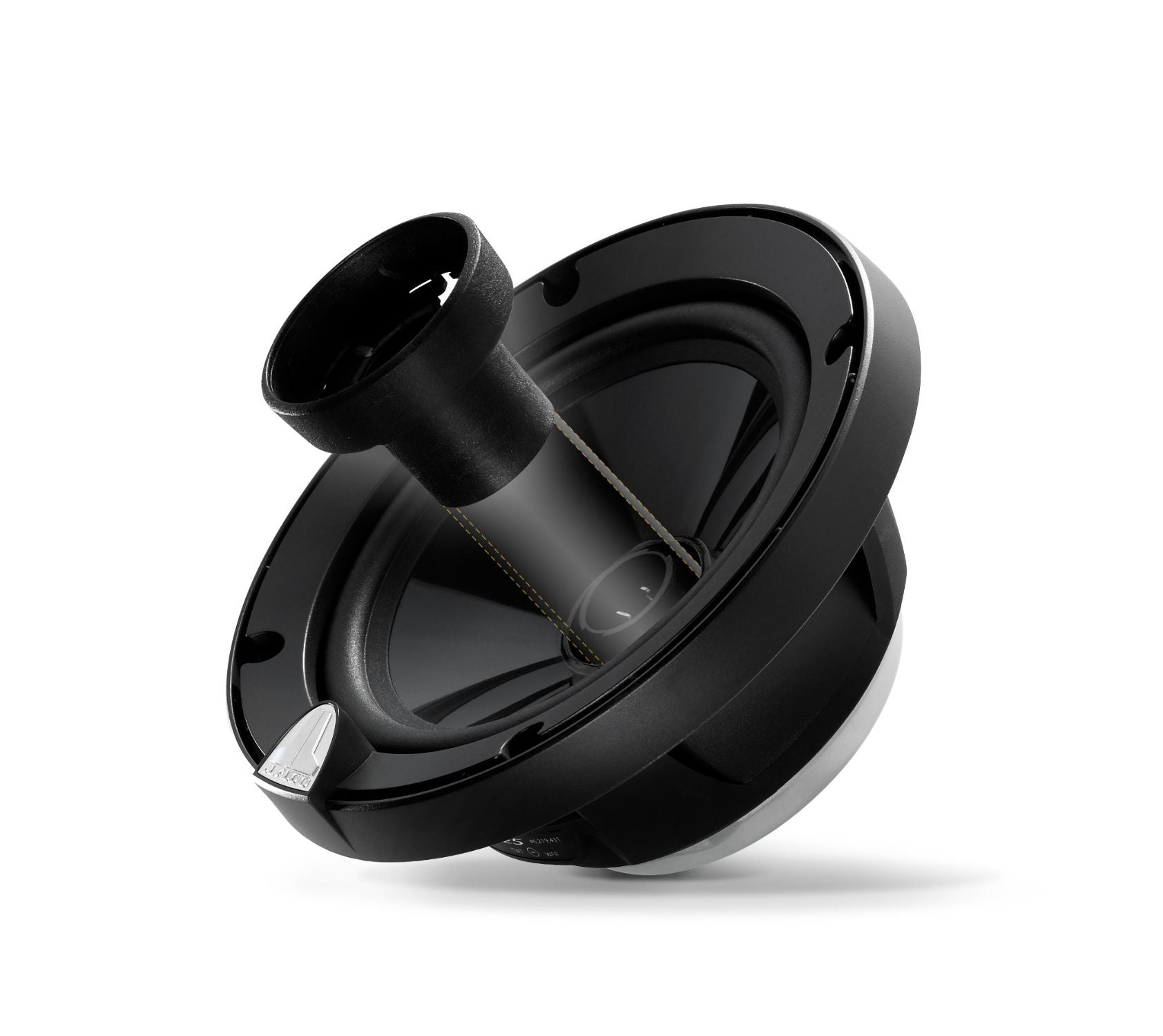

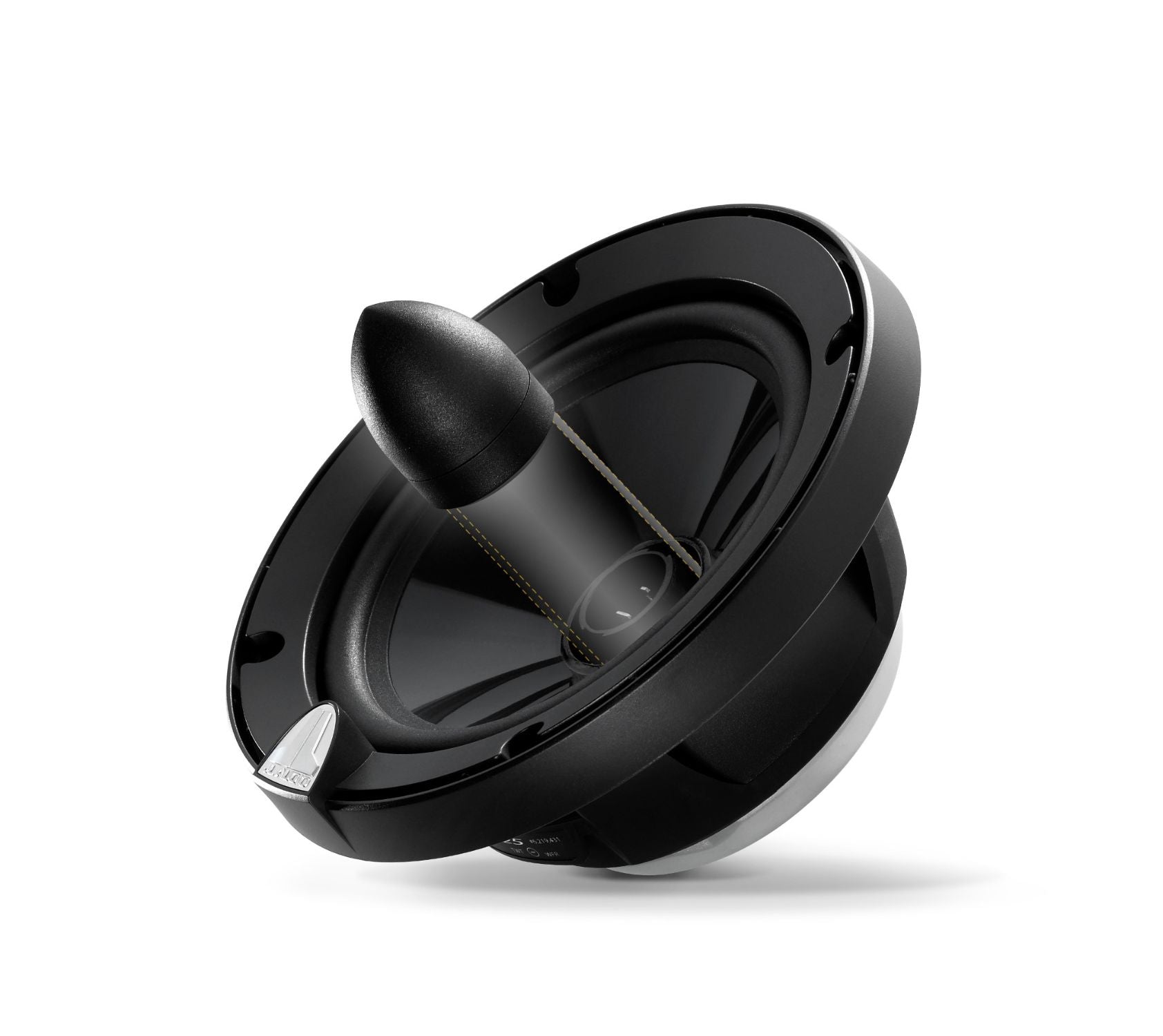

Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).

General SpecificationsContinuous Power Handling (RMS)75 WRecommended Amplifier Power (RMS)25 - 150 W / Ch.System Efficiency90.0 dB @ 1 W / 1 mSystem Nominal Impedance4 ΩSystem Frequency Response48 Hz - 25 KHz ± 3 dB

Woofer Physical SpecificationsFrame Outer Diameter* (A)5.80 in / 147 mmGrille Tray Outer Diameter (B)6.00 in / 152 mmMotor Outer Diameter** (C)3.38 in / 86 mmFrontal Coaxial Tweeter Protrusion*** (D)0.69 in / 18 mmFrontal Grille Protrusion**** (E)1.00 in / 25 mmMounting Hole Diameter (F)4.56 in / 116 mmMounting Depth (G)2.27 in / 58 mm

*Does not take into account mounting tabs
**Does not include decorative cover
***Frontal coaxial tweeter protrusion measured from mounting surface

****Frontal grille protrusion measured from mounting surface
