JL Audio

JL Audio C3-525

JL Audio C3-525

Contact us for pricing
$533.00 USD
Sale Sold out

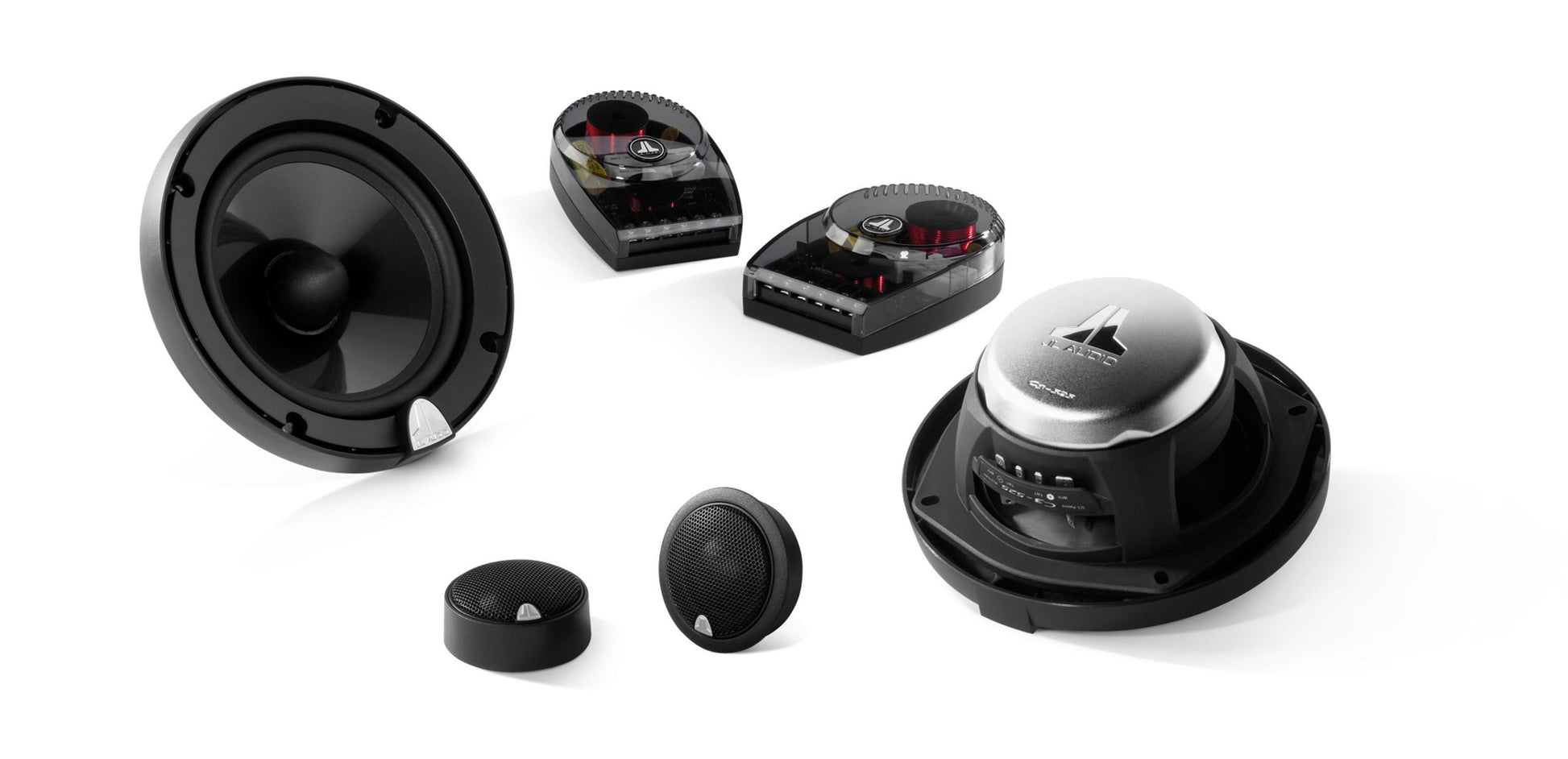

Component System or Coaxial System... you decide with these convertible loudspeaker systems featuring programmable outboard crossover networks and pure silk soft-dome tweeters. Glass-filled, non-magnetic, injection-molded polymer woofer baskets, oversized 1.2-inch voice coils, Mica-filled polypropylene cones. Grilles included (except C3-570 and C3-570cw).
View full details

  • Features

    There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

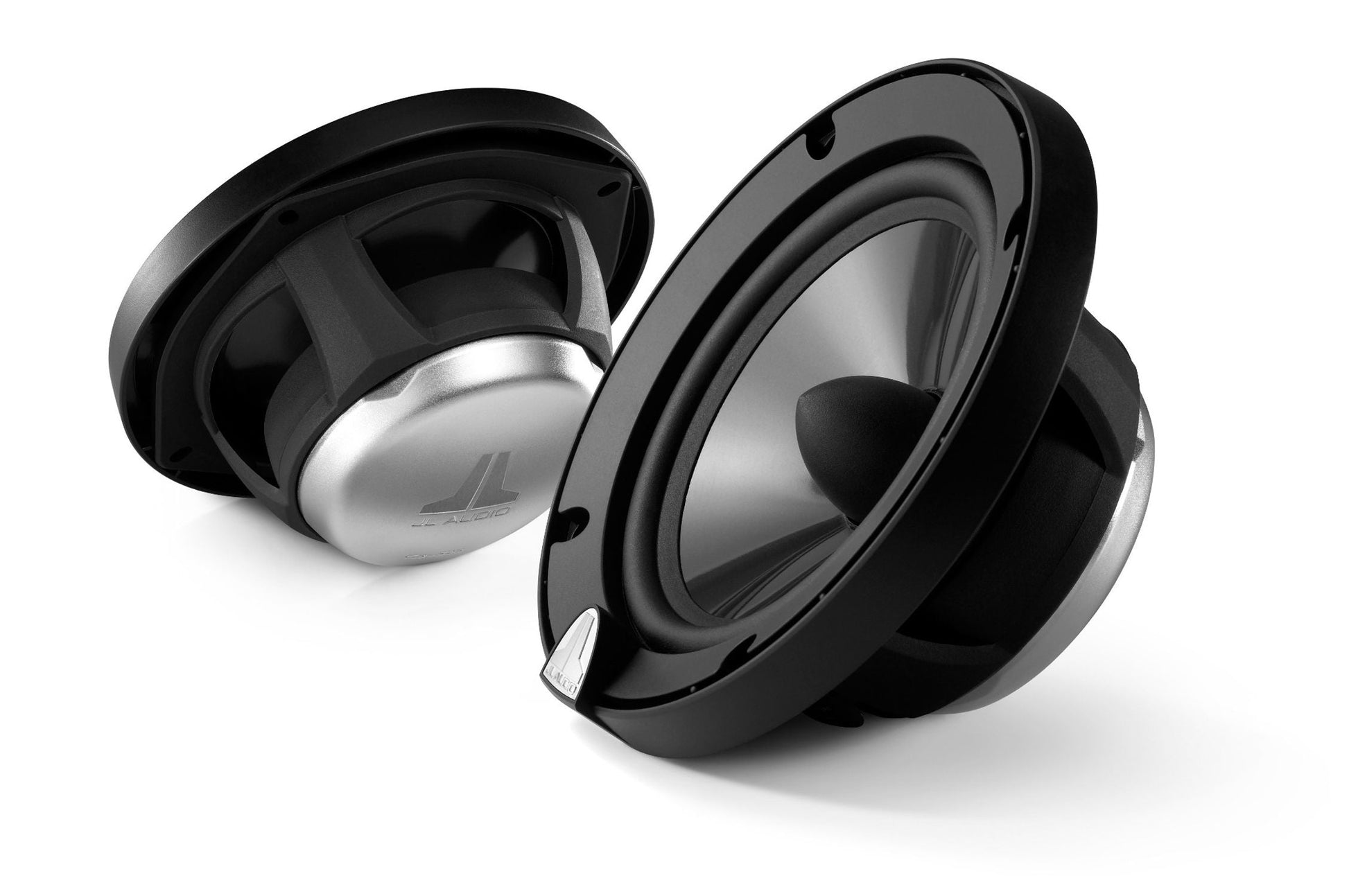

    The C3-525 system features 5.25-inch (130 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

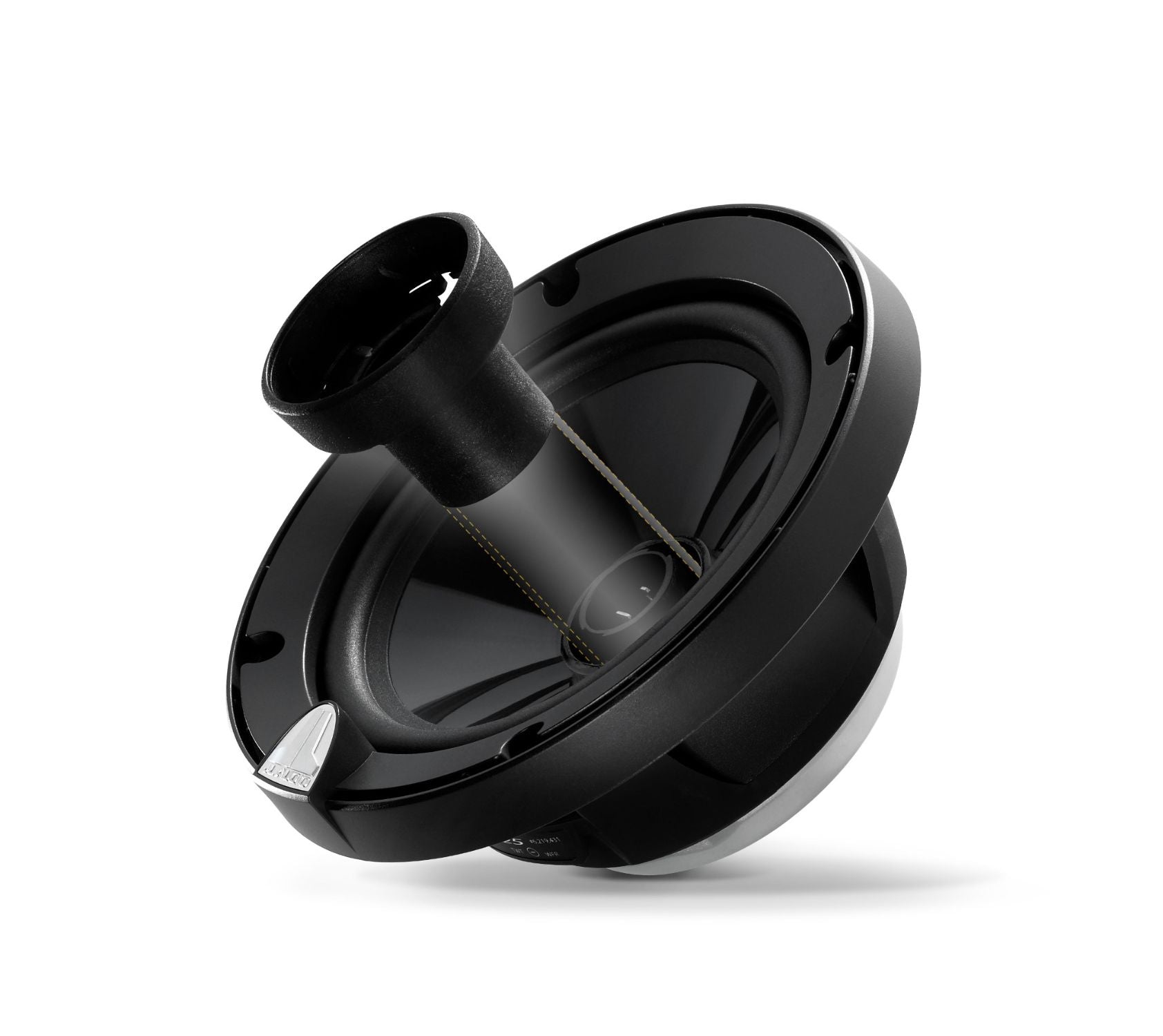

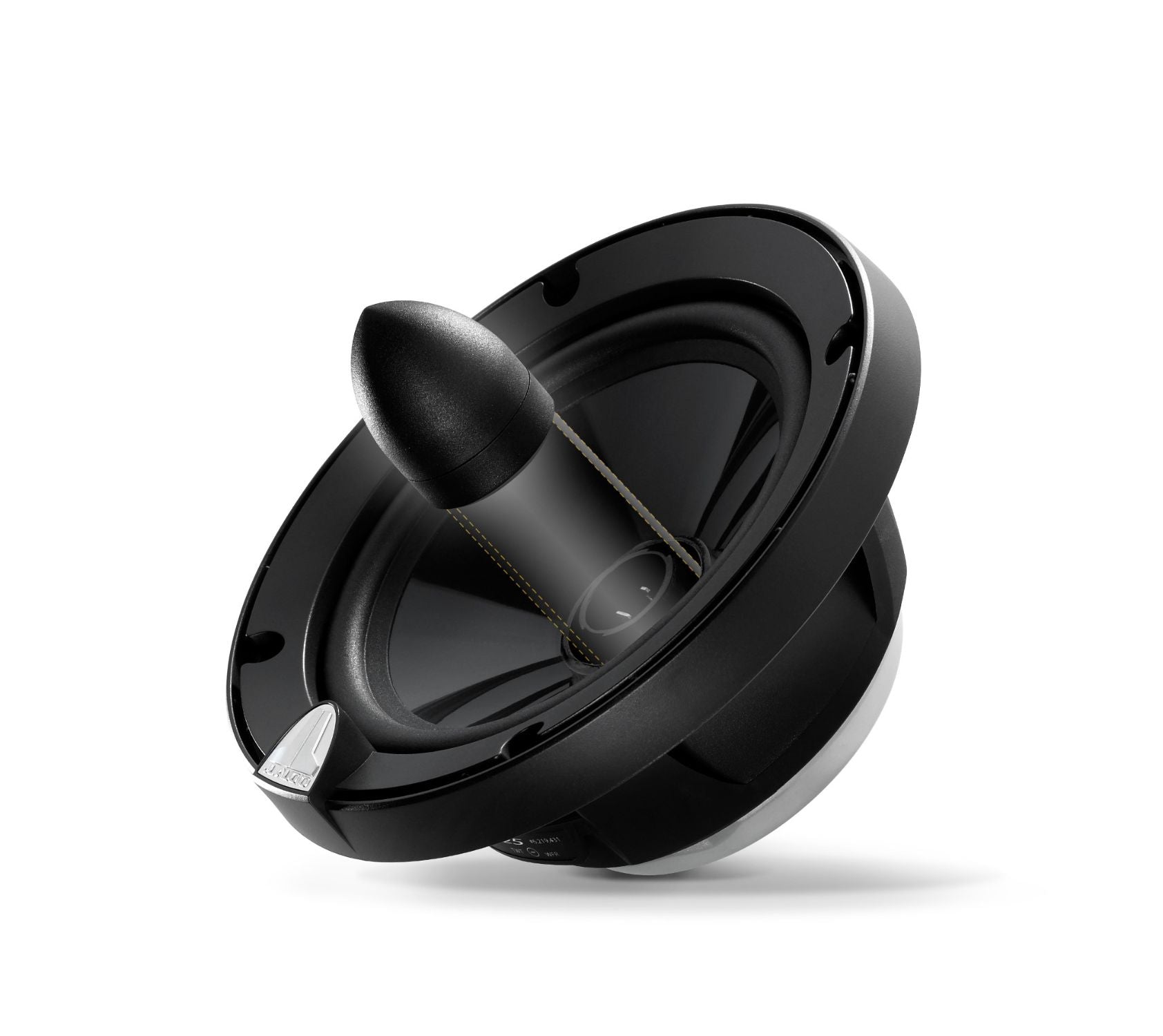

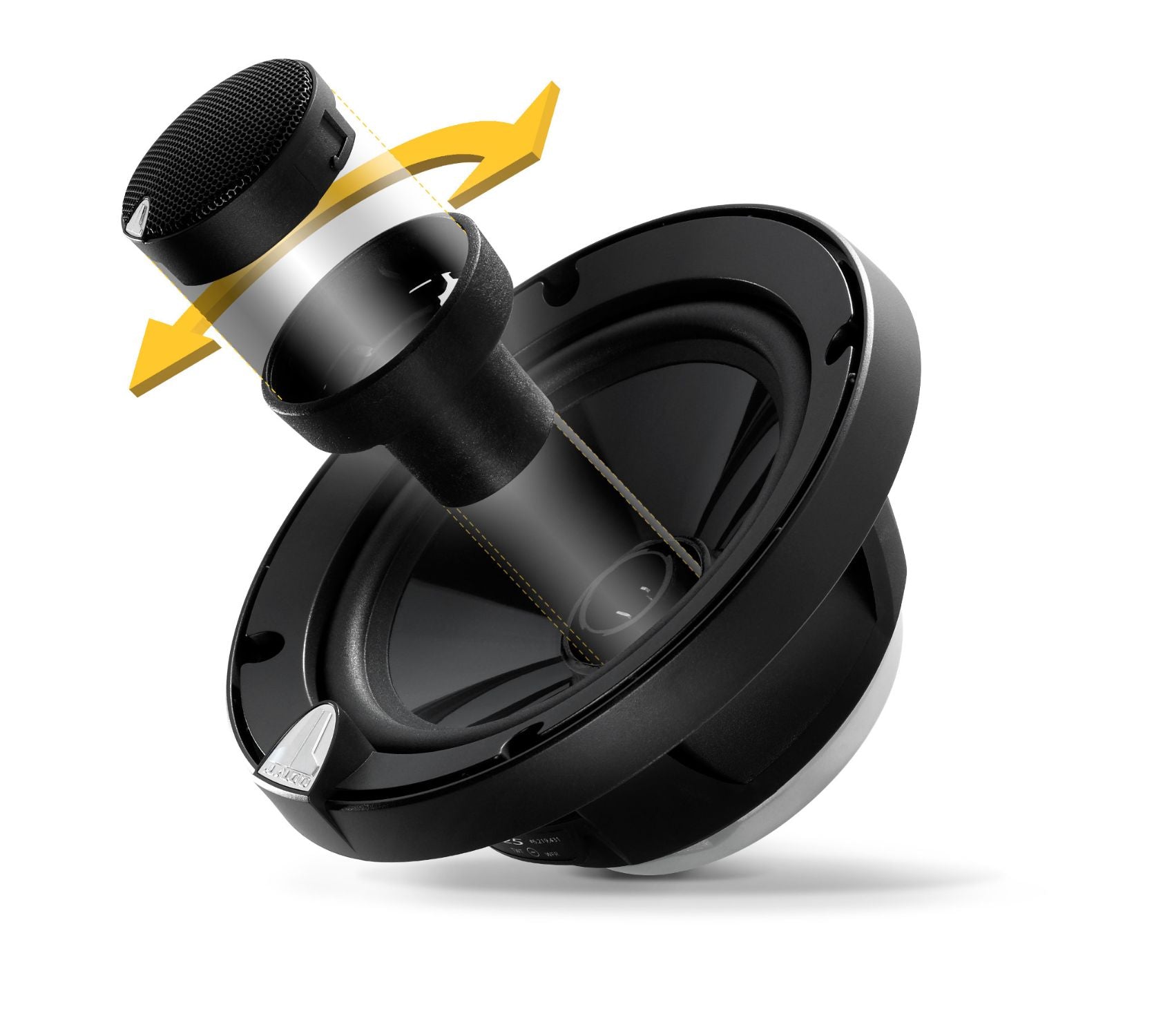

    The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

    C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

    Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

    Sonic character: Clean and Powerful

    Sold as a pair.

  • Specifications

    General SpecificationsContinuous Power Handling (RMS)75 WRecommended Amplifier Power (RMS)25 - 150 W / Ch.System Efficiency90.0 dB @ 1 W / 1 mSystem Nominal Impedance4 ΩSystem Frequency Response48 Hz - 25 KHz ± 3 dB

    Woofer Physical SpecificationsFrame Outer Diameter* (A)5.80 in / 147 mmGrille Tray Outer Diameter (B)6.00 in / 152 mmMotor Outer Diameter** (C)3.38 in / 86 mmFrontal Coaxial Tweeter Protrusion*** (D)0.69 in / 18 mmFrontal Grille Protrusion**** (E)1.00 in / 25 mmMounting Hole Diameter (F)4.56 in / 116 mmMounting Depth (G)2.27 in / 58 mm

    *Does not take into account mounting tabs
    **Does not include decorative cover
    ***Frontal coaxial tweeter protrusion measured from mounting surface

    ****Frontal grille protrusion measured from mounting surface

    Tweeter Physical SpecificationsFlush Mount Fixture Diameter (A1)2.12 in / 54 mmSurface Mount Fixture Diameter (A2)1.93 in / 49 mmFlush Mount Mounting Hole Diameter (B)1.875 in / 48 mmFlush Mount Fixture Mounting Depth (C)0.71 in / 18 mmFlush Mount Tweeter Frontal Protrusion (D1)0.32 in / 8 mmSurface Mount Tweeter Frontal Protrusion (D2)0.95 in / 24 mm

    Crossover Physical SpecificationsWidth (W)3.36 in / 85 mmHeight (H)1.44 in / 37 mmDepth (D)4.72 in / 120 mm
