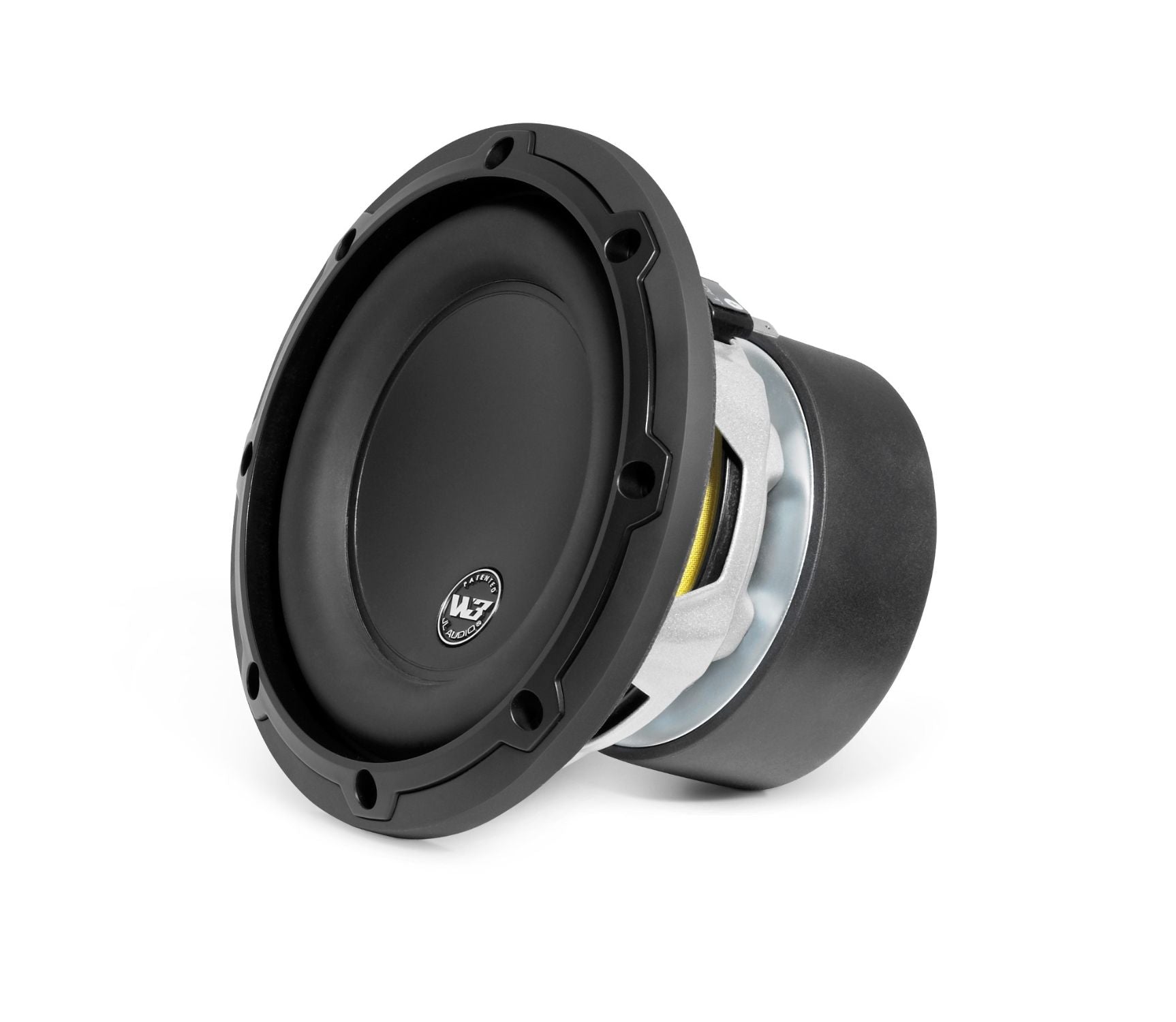

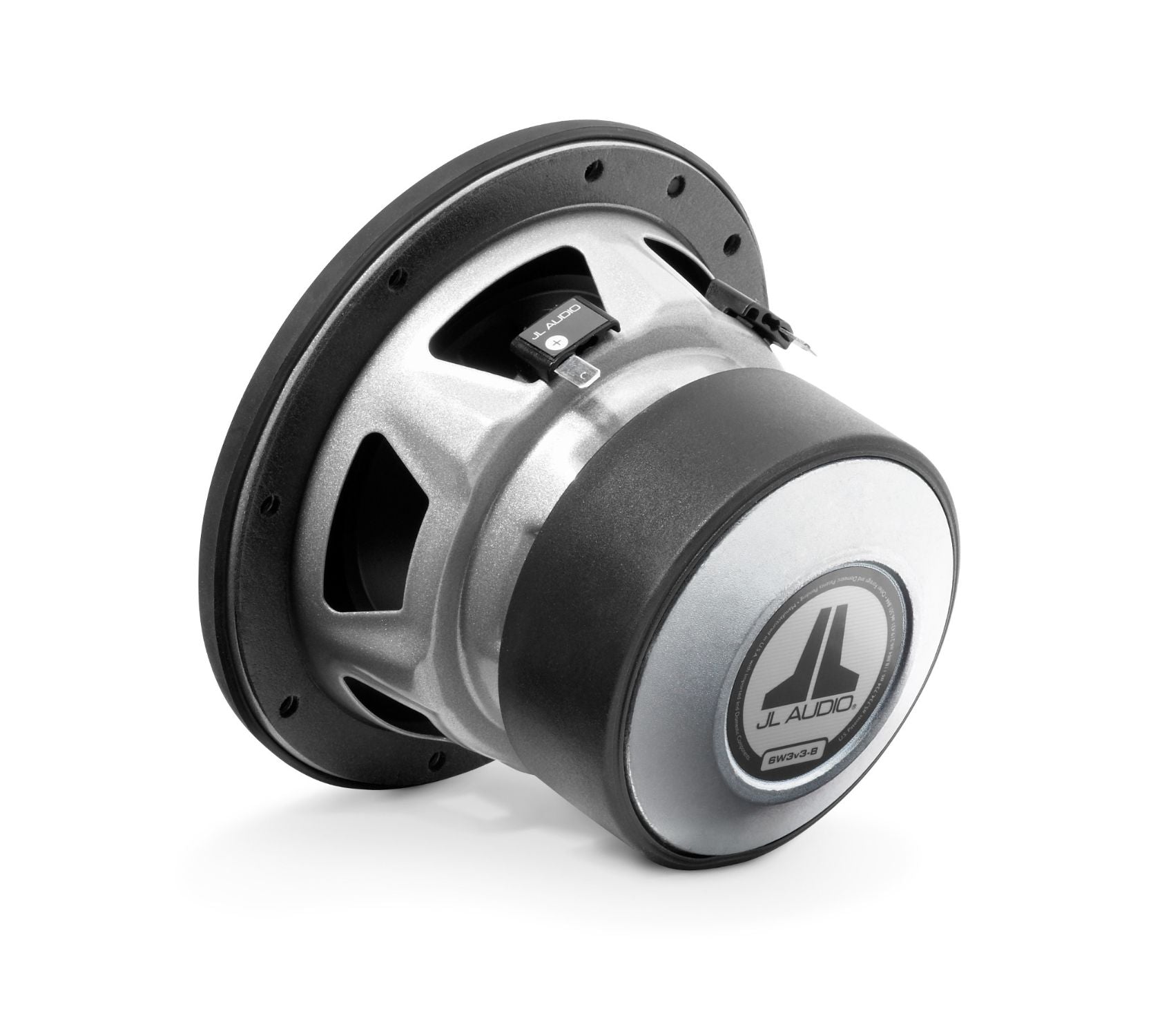

JL Audio 6W3v3-4

If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.

The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. (7.1 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General SpecificationsContinuous Power Handling (RMS)150 WRecommended Amplifier Power (RMS)50 - 150 WNominal Impedance (Znom)4 Ω

Physical SpecificationsNominal Diameter6.5 in / 165 mmOverall Diameter (A)6.85 in / 174 mmMounting Hole Diameter (B)5.5 in / 140 mmBolt Hole Circle Diameter (C)6.125 in / 156 mmMotor Outer Diameter (D)4.25 in / 108 mmMounting Depth (E)4.25 in / 108 mmDriver Displacement0.02 cu ft / 0.57 LNet Weight6.1 lb / 2.8 kg

ParametersFree Air Resonance (Fs)41.80 HzElectrical “Q” (Qes)0.533Mechanical “Q” (Qms)11.027Total Speaker “Q” (Qts)0.508Equivalent Compliance (Vas)0.181 cu ft / 5.13 LOne-Way Linear Excursion (Xmax)*0.35 in / 8.89 mmReference Efficiency (no)0.07%Efficiency (1 W / 1 m)**80.49 dB SPLEffective Piston Area (Sd)17.36 sq in / 0.0112 sq mDC Resistance (Re)3.476 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure SpecificationsWall Thickness0.5 in / 13 mmFront Baffle Thickness0.5 in / 13 mmVolume (net int.)0.15 cu ft / 4.2 LExternal Width (W)8.5 in / 216 mmExternal Height (H)8.5 in / 216 mmExternal Depth (D)6.25 in / 159 mmF358.43 HzFc62.11 HzQtc0.7548

Enclosure Notes
* The enclosure recommendations listed are external dimensions which assume the use of 1/2 in (13 mm) thick material. Do not use any material with a thickness of less than 1/2 in (13 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed are net internal volumes! Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions listed have already taken this into account.
* When using two subwoofers in a common enclosure simply double the required volume and, in the case of a ported enclosure, use two times the recommended port(s).
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and amplifiers. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Ported Enclosure SpecificationsWall Thickness0.5 in / 13 mmFront Baffle Thickness0.5 in / 13 mmVolume (net int.)0.25 cu ft / 7.1 LExternal Width (W)14.50 in / 368 mmExternal Height (H)10.125 in / 257 mmExternal Depth (D)5.25 in / 133 mmInternal Slot Port Width (SW)4.25 in / 108 mmInternal Slot Port Height (SH)0.5 in / 13 mmInternal Slot Port Length (SL)14.75 in / 374 mmPort Extension Length (EL)13 in / 330 mmTuning Frequency (Fb)38 HzF334.92 Hz

Enclosure Notes
* The enclosure recommendations listed are external dimensions which assume the use of 1/2 in (13 mm) thick material. Do not use any material with a thickness of less than 1/2 in (13 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
