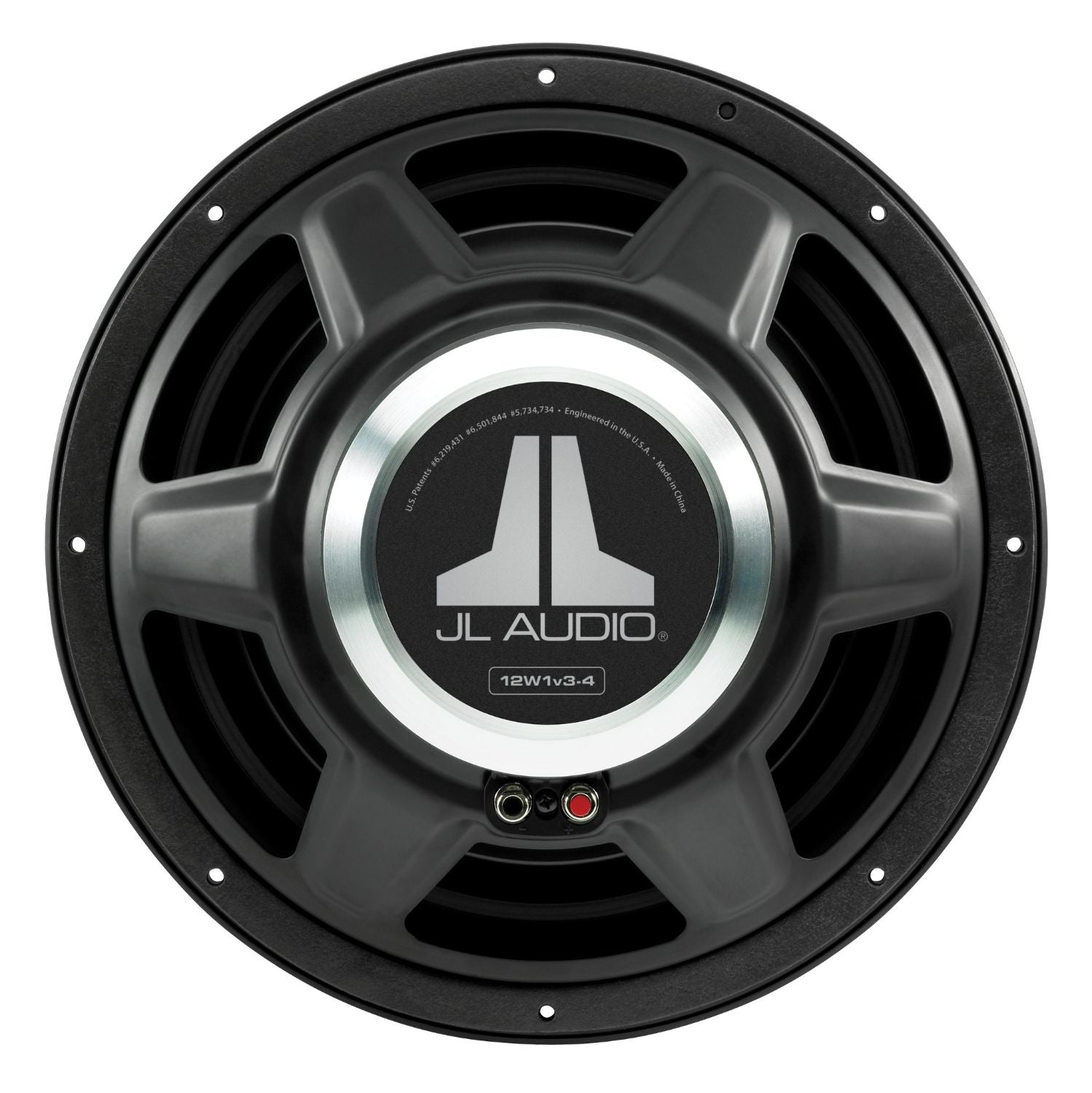

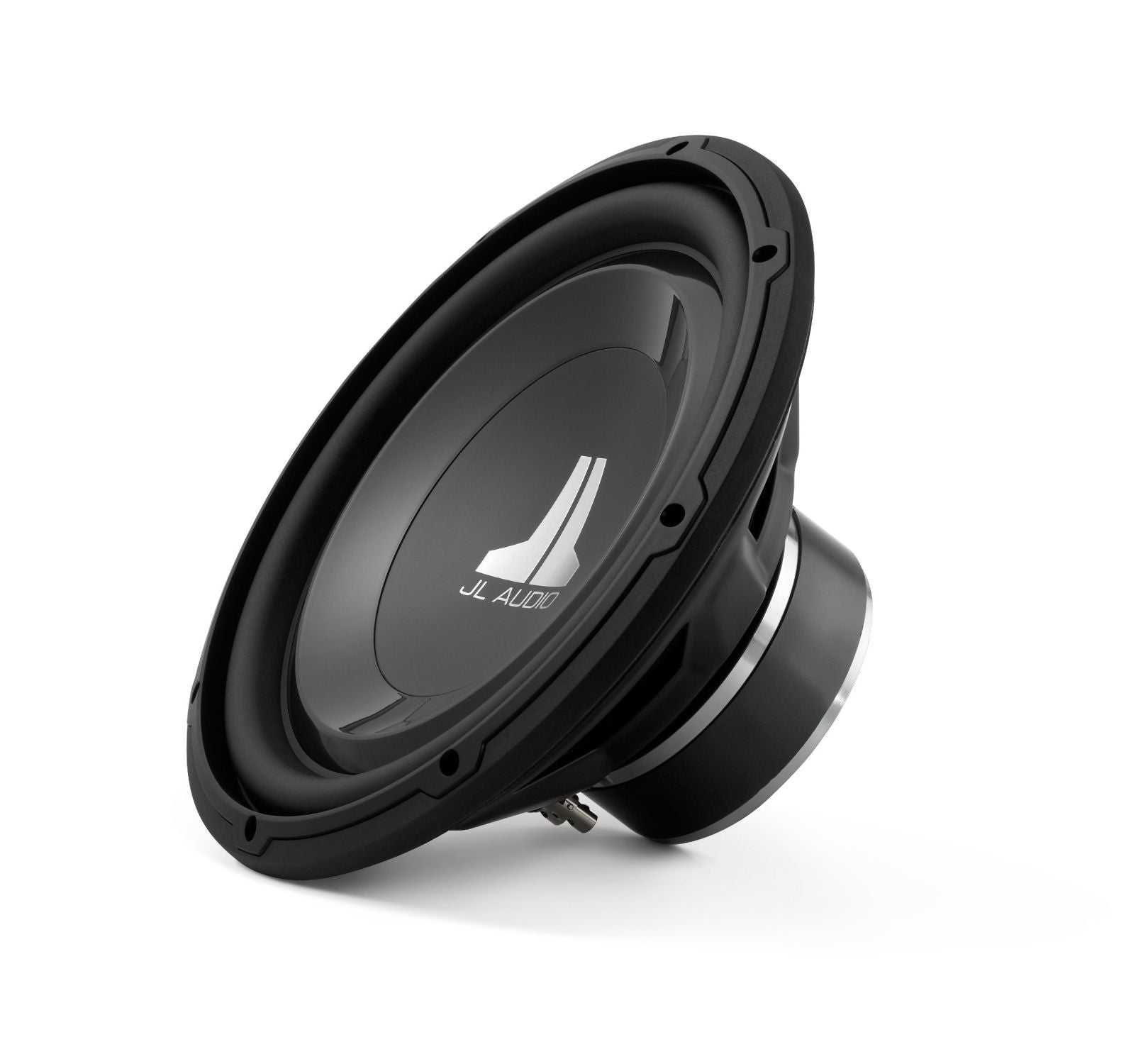

JL Audio 12W1v3-4

The 12W1v3 is a lightweight 12-inch driver with excellent performance capabilities at moderate power levels. It features moderate mounting depth with no pole-vent, so the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.

The 12W1v3-4 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General SpecificationsContinuous Power Handling (RMS)300 WRecommended Amplifier Power (RMS)75 - 300 WNominal Impedance (Znom)4 Ω

Physical SpecificationsNominal Diameter12.0 in / 300 mmOverall Diameter (A)12.5 in / 318 mmMounting Hole Diameter (B)11.0625 in / 281 mmBolt Hole Circle Diameter (C)11.7 in / 297 mmMotor Outer Diameter (D)5.25 in / 133 mmMounting Depth (E)5.41 in / 137 mmDriver Displacement0.052 cu ft / 1.47 LNet Weight12.2 lb / 5.5 kg

ParametersFree Air Resonance (Fs)26.21 HzElectrical “Q” (Qes)0.535Mechanical “Q” (Qms)8.2Total Speaker “Q” (Qts)0.502Equivalent Compliance (Vas)2.706 cu ft / 76.63 LOne-Way Linear Excursion (Xmax)*0.45 in / 11 mmReference Efficiency (no)0.25%Efficiency (1 W / 1 m)**86.1 dB SPLEffective Piston Area (Sd)81.426 sq in / 0.0525 sq mDC Resistance (Re)3.915 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure SpecificationsWall Thickness0.75 in / 19 mmFront Baffle Thickness0.75 in / 19 mmVolume (net int.)1.10 cu ft / 31.5 LExternal Width (W)16 in / 406 mmExternal Height (H)16 in / 406 mmExternal Depth (D)11 in / 279 mmF339.63 HzFc48.75 HzQtc0.9338

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Ported Enclosure SpecificationsWall Thickness0.75 in / 19 mmFront Baffle Thickness0.75 in / 19 mmVolume (net int.)1.6 cu ft / 45.3 LExternal Width (W)25 in / 635 mmExternal Height (H)15.5 in / 394 mmExternal Depth (D)13 in / 330 mmInternal Slot Port Width (SW)1.5 in / 38 mmInternal Slot Port Height (SH)14 in / 356 mmInternal Slot Port Length (SL)30.75 in / 781 mmPort Extension Length (EL)17 in / 432 mmTuning Frequency (Fb)31.79 HzF331.41 Hz

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
