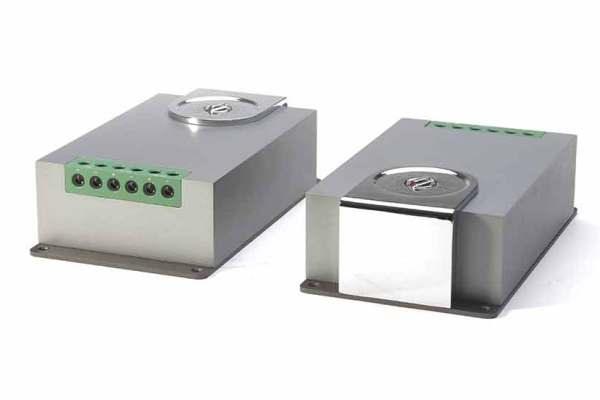

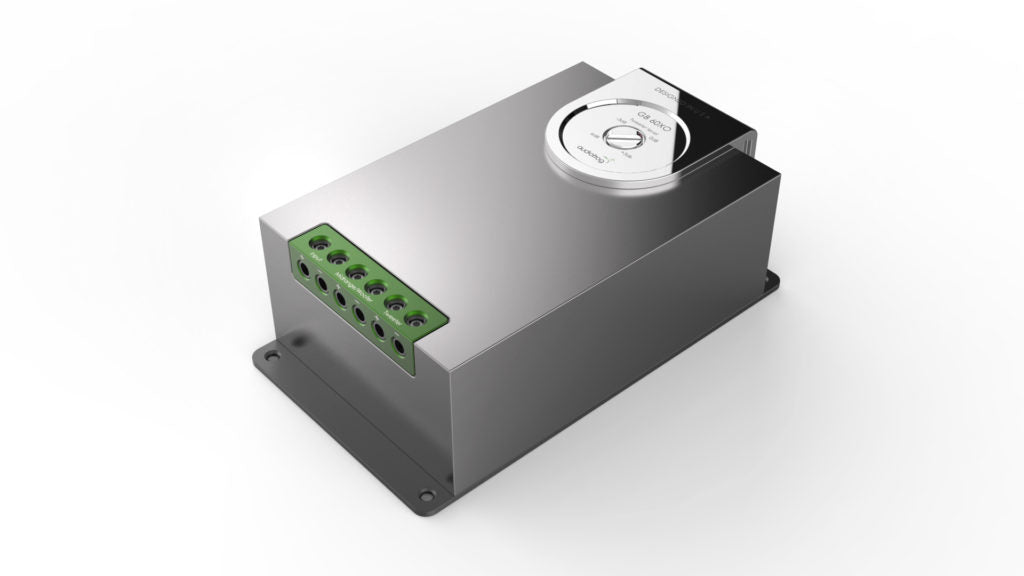

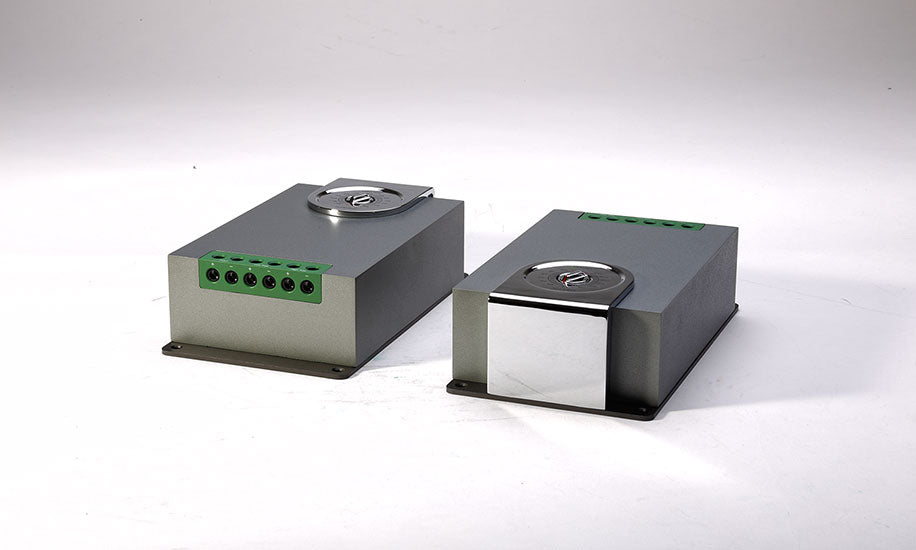

Audiofrog GB610C AUDIOPHILE GRADE PASSIVE CROSSOVER NETWORK

Audiofrog GB610C AUDIOPHILE GRADE PASSIVE CROSSOVER NETWORK

Regular price Sale price $72,983.00 USD
Sale Sold out

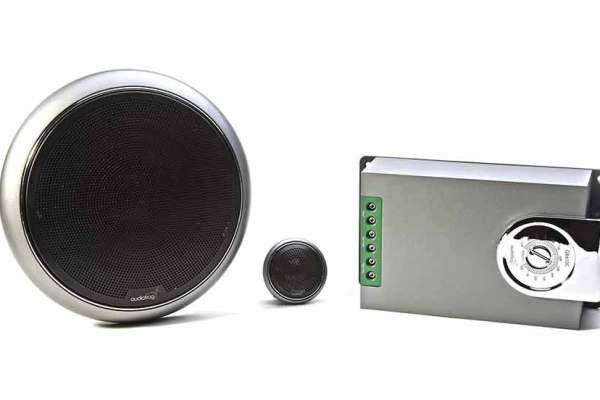

Specifically designed for use with the GB10 and GB60, the GB610C provides high power handling and a seamless transition between woofer and tweeter. A precise L-pad, which keeps the crossover frequency, slope and Q constant over a 12 dB level adjustment range, is included for tweeter tuning.
View full details
  • Features

    • Air Core Coils
    • Polypropylene Capacitors
    • Wire-Wound Resistors

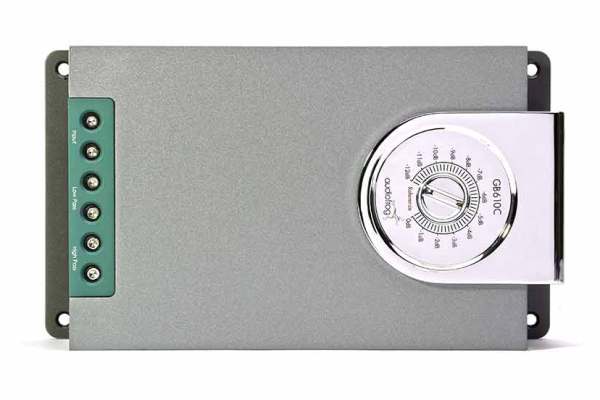

    • L-Pad Tweeter Adjustment Circuit
    • Tweeter Adjustment Scale Marked in 1/4 dB Increments
    • Screw Terminals
    • Cast Aluminum Chassis

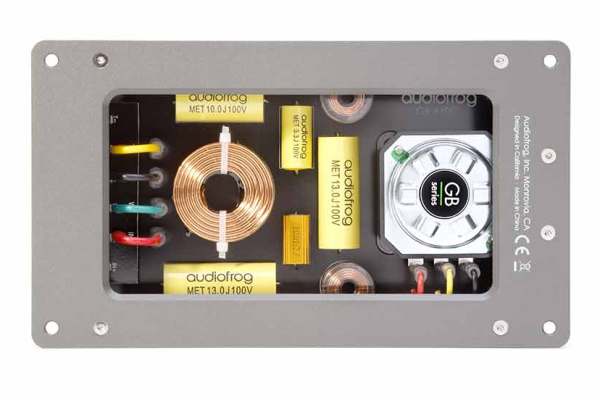

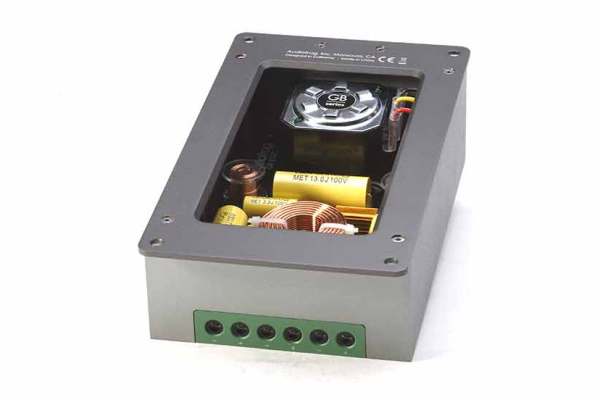

    • Clear Component Viewing Window
  • Specifications

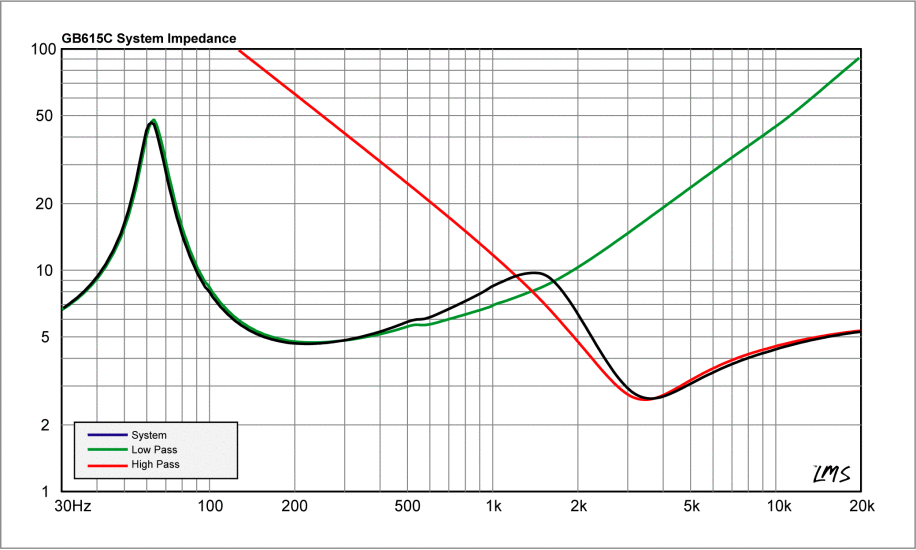

    • Nominal Impedance: 4 Ω
    • RMS Power Handling: 100 W (with recommended crossover)
    • Peak Power Handling: 300 W (with recommended crossover)
    • Frequency Response (-3 dB): 60 Hz – 24 kHz
    • Crossover Frequency: 2.5 kHz
    • Low Pass Filter: 2nd Order
    • High Pass Filter: 3rd Order
    • Recommended Amplifier RMS Power Range: 20 W – 100 W
    • Recommended High Pass Filter Frequency and Slope: ≥ 70 Hz, ≥ 12 dB/oct
    • Reference Tweeter Level Setting: -5 dB
