Audiofrog GB15 1 1/2″ (38 MM) AUDIOPHILE GRADE AUTOMOTIVE TWEETER

Audiofrog GB15 1 1/2″ (38 MM) AUDIOPHILE GRADE AUTOMOTIVE TWEETER

Regular price Sale price $70,990.00 USD
Sale Sold out

Designed primarily for use with the GB60 as the ultimate 2-way system for kick panel or door installation, the GB15 1-1/2” tweeter provides low distortion and high frequency extension not common in other large tweeters.

With its lower optimum crossover frequency, the GB15 is a perfect match for the GB60’s high frequency response. The unique installation kit makes beautiful custom installation a breeze and provides several options for behind-the-panel mounting in many factory locations.

View full details
  • Features

    • 1-1/2” (38 mm) Sealed Polyester Diaphragm
    • 1-1/2” (38 mm) Voice Coil
    • Neodymium motor

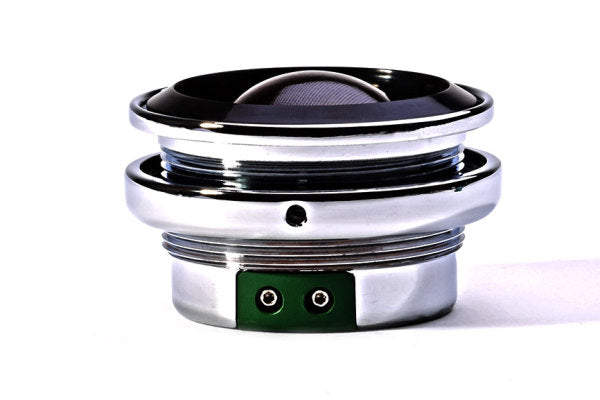

    • Chrome-Plated Cast Zinc Housing
    • Copper Inductance- and Distortion-Reducing Pole Piece Cap

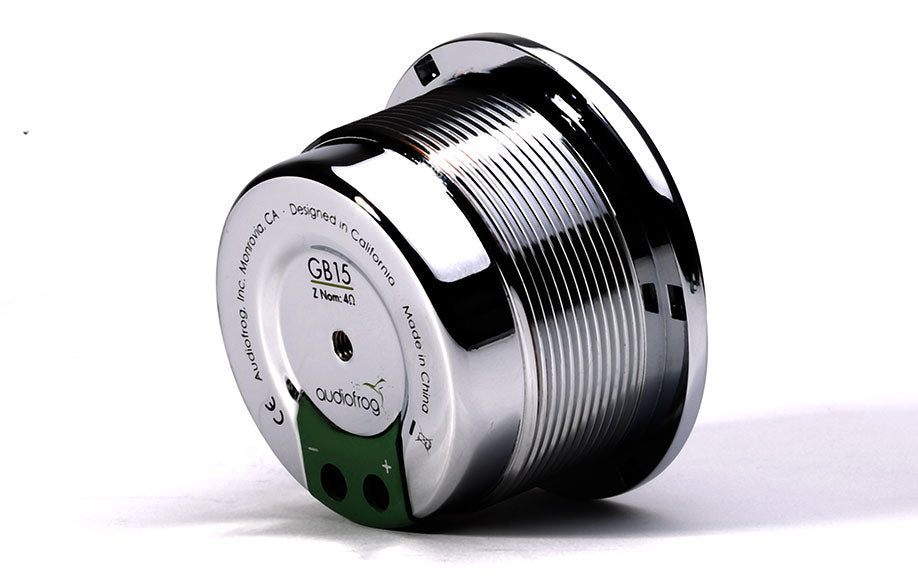

    • Screw Terminals

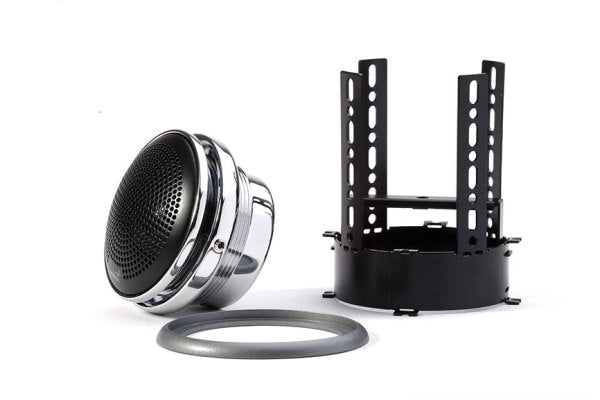

    • All-Metal Flush and Behind-the-Panel Mounting Kits Included
    • Hex Screws and Tools Included
    • Removable and Paintable Grille
    • Rub-On Logos Included for Custom Installation
  • Specifications

    • Nominal Impedance: 4 Ω
    • RMS Power Handling: 100 W (with recommended crossover)
    • Peak Power Handling: 300 W (with recommended crossover

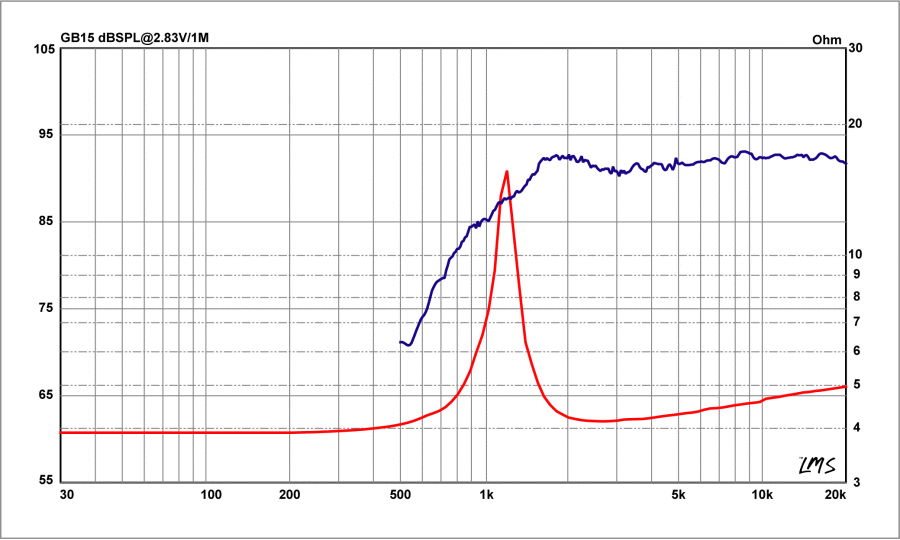

    • Frequency Response (-3 dB): 1.3 kHz – 20 kHz
    • Sensitivity (2.83V / 1M): 90 dB
    • Recommended Amplifier RMS Power Range: 20 W – 100 W
    • Recommended High Pass Filter Frequency and Slope: ≥ 1.8 kHz, ≥ 12 dB/oct
