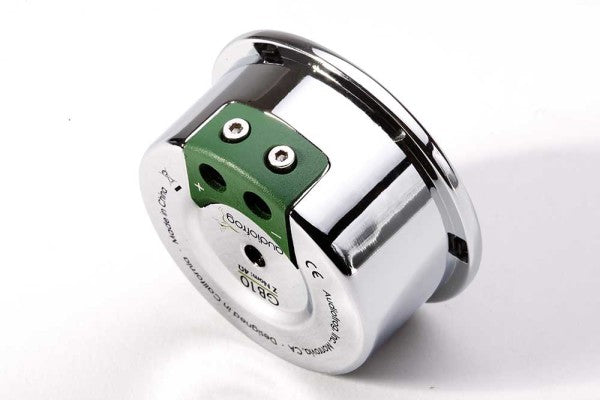

Audiofrog GB10 1″ (25 MM) AUDIOPHILE GRADE AUTOMOTIVE TWEETER

Audiofrog GB10 1″ (25 MM) AUDIOPHILE GRADE AUTOMOTIVE TWEETER

Contact us for pricing
$73,429.00 USD
Sale Sold out
Designed for installation in factory or custom locations, the GB10 1” tweeter provides low distortion audiophile-grade performance with extended high frequency response. The unique installation kit makes beautiful custom installation a breeze and provides several options for behind-the-panel mounting in factory locations.
View full details

  • Features

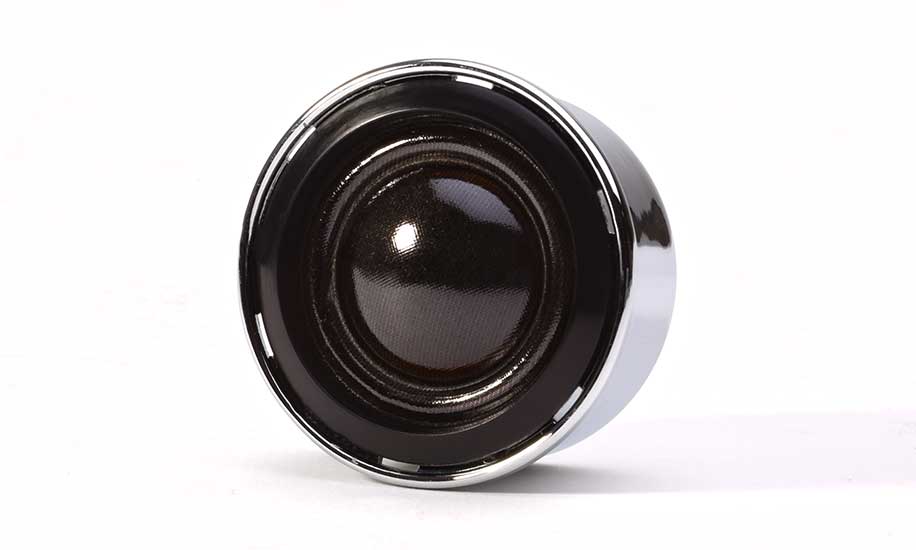

    • 1” (25 mm) Sealed Polyester Diaphragm
    • 1” (25 mm) Voice Coil
    • Neodymium Motor

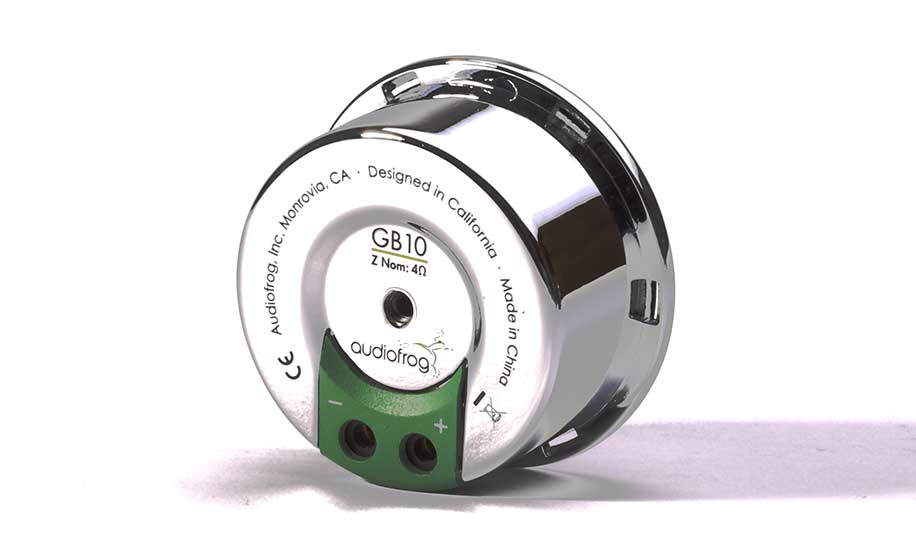

    • Chrome-Plated Cast Zinc Housing
    • Copper Inductance- and Distortion-Reducing Pole Piece Cap

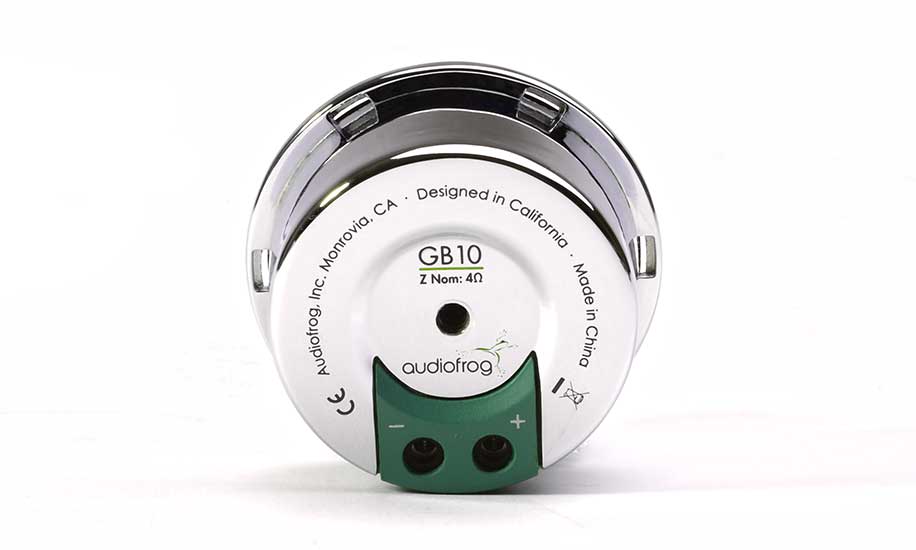

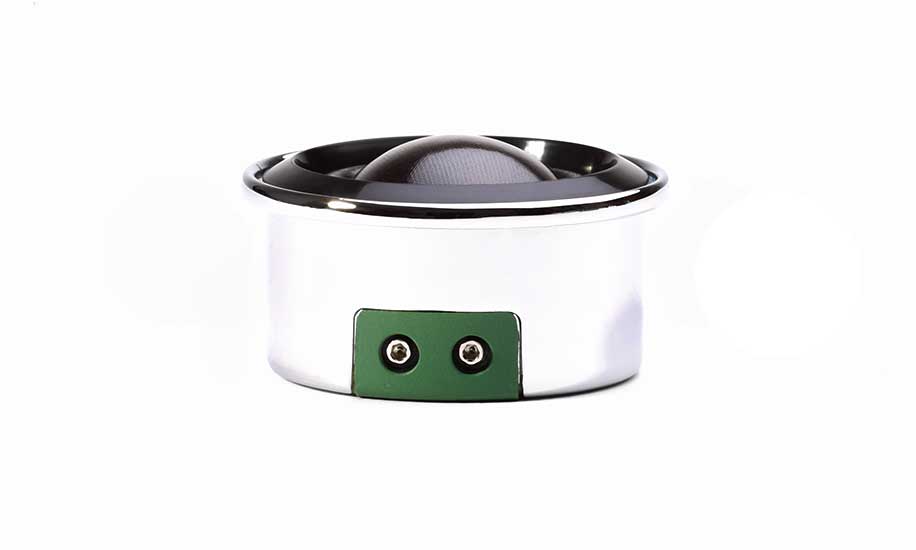

    • Screw Terminals

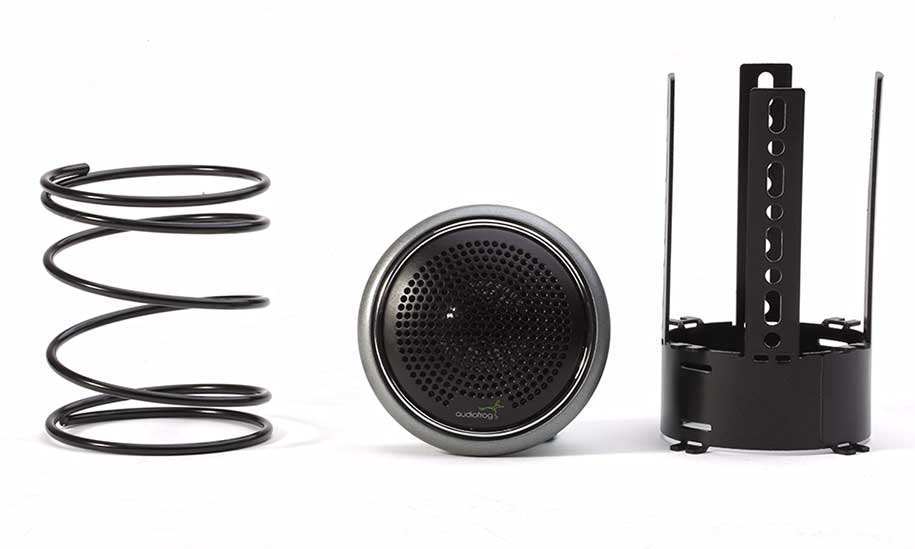

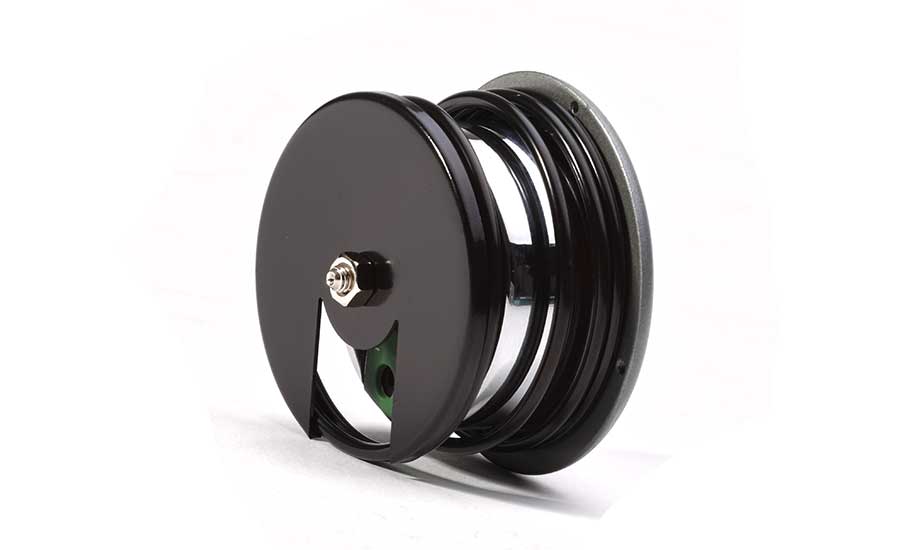

    • All-Metal Flush and Behind-the-Panel Mounting Kits Included
    • Hex Screws and Tools Included

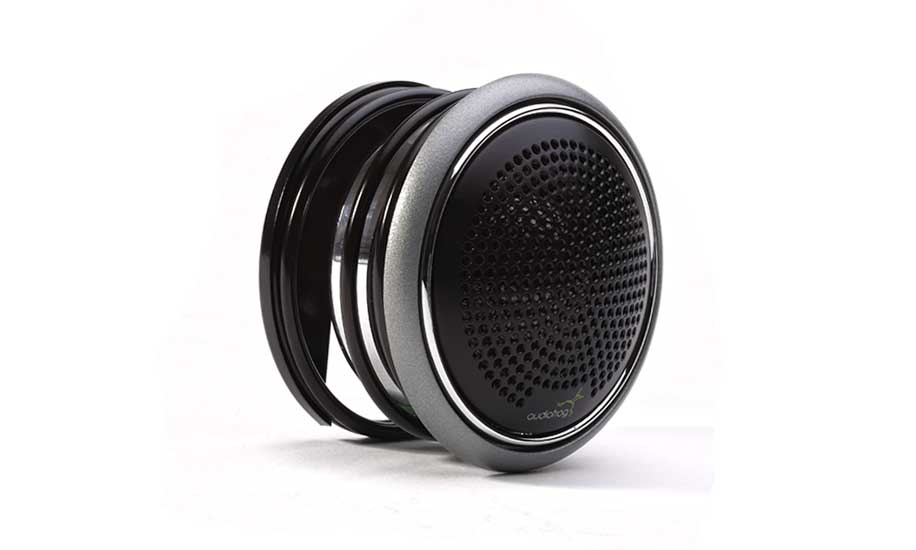

    • Removable and Paintable Grille
    • Rub-On Logos Included for Custom Installation

  • Specifications

    • Nominal Impedance: 4 Ω
    • RMS Power Handling: 100 W (with recommended crossover)
    • Peak Power Handling: 300 W (with recommended crossover)
    • Frequency Response (-3 dB): 1.8 kHz – 24 kHz
    • Sensitivity (2.83V / 1M): 90 dB
    • Recommended Amplifier RMS Power Range: 20 W – 100 W
    • Recommended High Pass Filter Frequency and Slope: ≥ 2.5 kHz, ≥ 12 dB/oct
