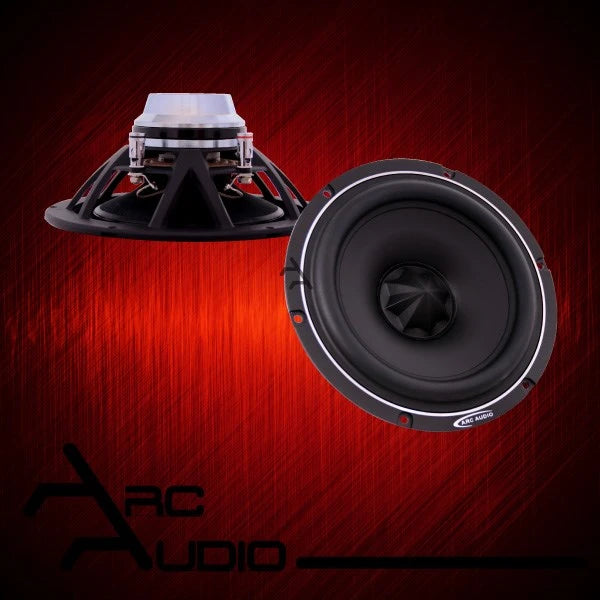

ARC Audio RS 6.0 Speakers
ARC Audio RS 6.0 Speakers
Sale
Sold out
RS Series speakers offer performance that brings out the subtleties and nuances of your music. When integrated into your system, instruments will sound more realistic, voices will sound more natural, and the sheer dynamics of your music will simultaneously impress and startle you. Designed for today's active DSP based aftermarket and OEM replacement systems the RS Series exemplifies the focus of quality and detail without having to mortgage your home to obtain it.
Available in matched raw sets only, the RS series is available in 3”, 4” and 6” platforms accompanied by an elegant cast audiophile tweeter. The RS1.0 Tweeter is the perfect complement to matching with the RS 4.0 or RS 6.0 for a stunning of revealing 2-way active component system. Bring the RS3.0 into the picture paired with the RS1.0 and the RS6.0 and you now have the tools to help create staging, imaging, and tonal properties capable of finest resolution possible in a vehicle.
The RS 6.0 shares many of the same design characteristics and features of the midrange drivers, but with optimization for the higher excursion requirements commonly associated with reproducing bass and mid-bass frequencies. With a mounting depth of 2-3/4 inches, it maximizes the benefit of its high-strength neodymium motor in an efficient and yet low-profile design. Unlike the motors in the RS 3.0 and RS 4.0 Magnetic flux is controlled by an extended copper sleeve for exceptional clarity and greatly increased overall bandwidth.
Just like the other drivers in this line the RS6.0 features a hard-pressed composite woven papyrus damped paper design resulting is a low-mass speaker cone with exceptional strength and excellent damping characteristics for smooth and natural sound reproduction across an extremely wide band of frequencies making this a very wide band capable speaker. Papyrus was used in a wide variety of applications and products as far back as 3100 BC to create writing material and was adopted in mainstream manufacturing in audio components dating back to the late 70’s. The balance of strength and durability of the Papyrus plant pith make it optimal for this application. In the new RS-Series speaker cones, the Papyrus damps vibrations and adds rigidity uniformly. The cone is attached to the cast aluminum basket with a low shore low-dampened rubber surround for optimal longevity.
Perhaps the most unique feature of the RS6.0 is the new carefully designed dust caps. Long overlook as a fundamental contributor to high-frequency distortion and in some cases inconsistencies in response at low frequencies. With these typical issues in mind, ARC Audio focused intently on eliminating the drawbacks of undamped dust caps without the need to forego effective cone area by resorting to a phase plug design. The new dust caps feature a semi-parabolic side profile that includes sharp vertical splines to add lateral rigidity. Effectively, these new dust caps remain non-resonant, even at high excursion levels and extreme frequencies. The new design exclusive to the ARC Audio RS drivers provides the resonance control across the operating band typically plagued by traditional designs while balancing the low frequency response below 400Hz giving installers and system DSP tuners the optimum starting point with a well desired natural free air response that works well with the inside of the vehicle.

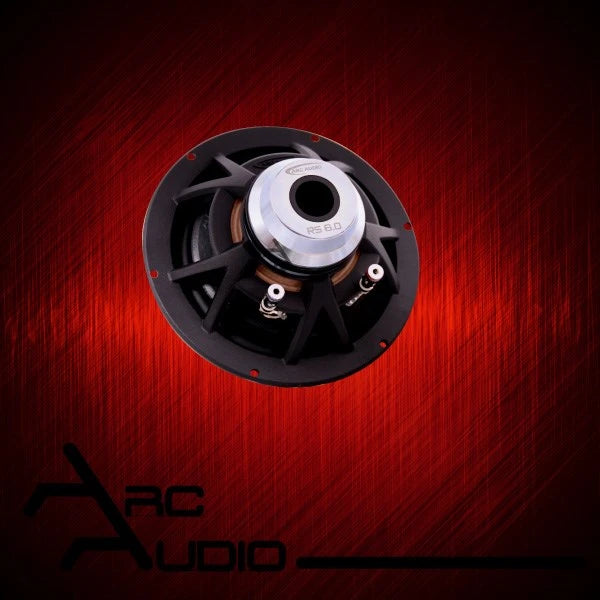

The motor assembly of the RS 6.0 features a shallow design that uses a high-strength neodymium slug to provide excellent efficiency without the need for deep mounting depth requirements while retaining superior control of the speaker.
The new ARC Audio Reference Series speakers continue our company’s tradition of optimizing the performance of your entertainment system by using the latest designs and technologies. Visit your local authorized ARC Audio dealer for an entirely new music listening experience.
Available in matched raw sets only, the RS series is available in 3”, 4” and 6” platforms accompanied by an elegant cast audiophile tweeter. The RS1.0 Tweeter is the perfect complement to matching with the RS 4.0 or RS 6.0 for a stunning of revealing 2-way active component system. Bring the RS3.0 into the picture paired with the RS1.0 and the RS6.0 and you now have the tools to help create staging, imaging, and tonal properties capable of finest resolution possible in a vehicle.
The RS 6.0 shares many of the same design characteristics and features of the midrange drivers, but with optimization for the higher excursion requirements commonly associated with reproducing bass and mid-bass frequencies. With a mounting depth of 2-3/4 inches, it maximizes the benefit of its high-strength neodymium motor in an efficient and yet low-profile design. Unlike the motors in the RS 3.0 and RS 4.0 Magnetic flux is controlled by an extended copper sleeve for exceptional clarity and greatly increased overall bandwidth.
Just like the other drivers in this line the RS6.0 features a hard-pressed composite woven papyrus damped paper design resulting is a low-mass speaker cone with exceptional strength and excellent damping characteristics for smooth and natural sound reproduction across an extremely wide band of frequencies making this a very wide band capable speaker. Papyrus was used in a wide variety of applications and products as far back as 3100 BC to create writing material and was adopted in mainstream manufacturing in audio components dating back to the late 70’s. The balance of strength and durability of the Papyrus plant pith make it optimal for this application. In the new RS-Series speaker cones, the Papyrus damps vibrations and adds rigidity uniformly. The cone is attached to the cast aluminum basket with a low shore low-dampened rubber surround for optimal longevity.
Perhaps the most unique feature of the RS6.0 is the new carefully designed dust caps. Long overlook as a fundamental contributor to high-frequency distortion and in some cases inconsistencies in response at low frequencies. With these typical issues in mind, ARC Audio focused intently on eliminating the drawbacks of undamped dust caps without the need to forego effective cone area by resorting to a phase plug design. The new dust caps feature a semi-parabolic side profile that includes sharp vertical splines to add lateral rigidity. Effectively, these new dust caps remain non-resonant, even at high excursion levels and extreme frequencies. The new design exclusive to the ARC Audio RS drivers provides the resonance control across the operating band typically plagued by traditional designs while balancing the low frequency response below 400Hz giving installers and system DSP tuners the optimum starting point with a well desired natural free air response that works well with the inside of the vehicle.
The motor assembly of the RS 6.0 features a shallow design that uses a high-strength neodymium slug to provide excellent efficiency without the need for deep mounting depth requirements while retaining superior control of the speaker.
The new ARC Audio Reference Series speakers continue our company’s tradition of optimizing the performance of your entertainment system by using the latest designs and technologies. Visit your local authorized ARC Audio dealer for an entirely new music listening experience.
Share
-
Features
-
Specifications
Speaker Size6.5"Speaker TypeMidrange -Raw DriverPower Handling (Peak)200 WattsPower Handling (RMS)80 WattsFrequency Response50Hz - 9.5kHzSensitivity91.5dBImpedance4 ohmsBasket MaterialCast AluminumCone MaterialComposite Papyrus filled PaperSurround MaterialLow Shore RubberSpider MaterialSynthetic Progressive NomexMotor StructureMulti-Step CNC Precision cutCopper Shorting RingYesVoice CoilCCAWMounting Depth2.75"Cutout Diameter5.812"Maximum Outer Diameter6.654"Mounting Flange Thickness.184"Grills IncludedNo
TS ParametersRdc3.1 OhmsFS52.5 HzMms14.5 gBl5.85 TmRms.8 kg/sCms.63 mm/nSd118 CM2Qms5.98 gQes.43Qts.40Vas12.5 LitersSPL (2.83 V/1 m)91.5 dB
