ARC Audio

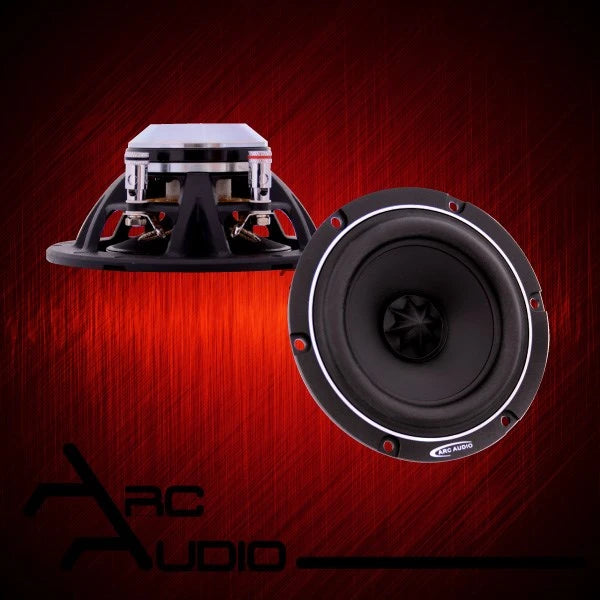

ARC Audio RS 4.0 Speakers
ARC Audio RS 4.0 Speakers
Sale
Sold out
RS Series speakers offer performance that brings out the subtleties and nuances of your music. When integrated into your system, instruments will sound more realistic, voices will sound more natural, and the sheer dynamics of your music will simultaneously impress and startle you. Designed for today's active DSP based aftermarket and OEM replacement systems the RS Series exemplifies the focus of quality and detail without having to mortgage your home to obtain it.
Available in matched raw sets only, the RS series is available in 3”, 4” and 6” platforms accompanied by an elegant cast audiophile tweeter. The RS1.0 Tweeter is the perfect complement to matching with the RS 4.0 or RS 6.0 for a stunning of revealing 2-way active component system. Bring the RS3.0 into the picture paired with the RS1.0 and the RS6.0 and you now have the tools to help create staging, imaging, and tonal properties capable of finest resolution possible in a vehicle.
The compact and yet sonically versatile RS 3.0 is a 3.0-inch midrange driver perfect for active 3-way systems. With a 1.38-inch mounting depth, small format custom cast chassis design and precision designed components, the RS3.0 is the perfect solution when space restrictions are at an all-time high for any reference audio or competition audio system.
The RS 4.0 provides increased power handling and low-frequency extension and requires a mounting depth of only 1.94 inches. Much like the RS3.0, the RS4.0 uses a hard-pressed composite woven/ papyrus damped paper cone designs. This composite design delivers a low-mass speaker cone with exceptional strength and excellent damping characteristics for smooth and natural sound reproduction across an extremely wide band of frequencies making this a very wide band capable speaker. Papyrus was used in a wide variety of applications and products as far back as 3100 BC to create writing material and was adopted in mainstream manufacturing in audio components dating back to the late 70’s. The balance of strength and durability of the Papyrus plant pith made it optimal for this application. In the new RS-Series speaker cones, the Papyrus damps vibrations and adds rigidity uniformly. The cone is attached to the cast aluminum basket wikh a low shore low-dampened rubber surround for optimal longevity.
Perhaps the most unique features of the RS 3.0 and RS 4.0 are their new dust caps. Long overlooked as a fundamental contributor to high-frequency distortion and in some cases inconsistencies in response at low frequencies. With these typical issues in mind, ARC Audio focused intently on eliminating the drawbacks of undamped dust caps without the need to forego effective cone area by resorting to a phase plug design. The new dust caps feature a semi-parabolic side profile that includes sharp vertical splines to add lateral rigidity. Effectively, these new dust caps remain non-resonant, even at high excursion levels and extreme frequencies. In addition to their sonic characteristics due to the incredible strength of shape, the dust cap design helps eliminate prying fingers from pushing indents into these components. The new design exclusive to the ARC Audio RS drivers provides the resonance control across the operating band typically plagued by traditional designs while balancing the low-frequency response below 400Hz giving installers and system DSP tuners an optimal starting point with a well desired natural free air response that works well with the inside of the vehicle.

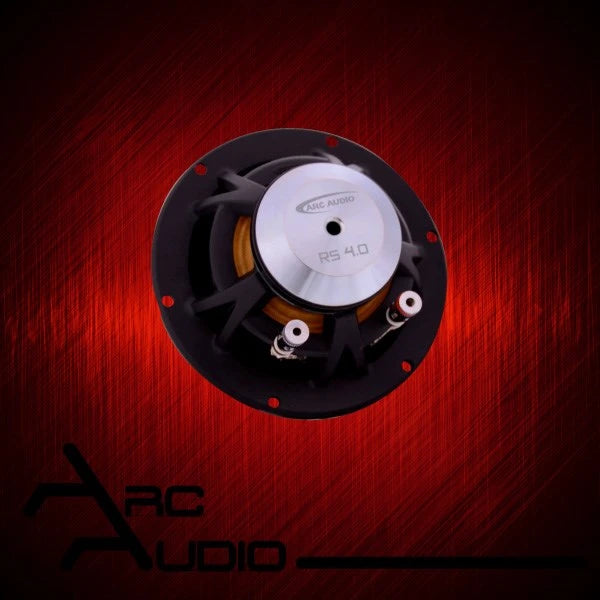

The motor assembly of the RS 3.0 and RS 4.0 feature a shallow design that uses a high-strength neodymium slug to provide excellent efficiency without the need for deep mounting depth requirements while retaining superior control of the speaker. With small nuances of difference between the drivers, the RS 3.0 features a distortion and inductance reducing copper cap on top the motor assembly to improve upper midrange and high-frequency performance making this a true compact wideband driver. The RS 4.0 trades the copper slug for an integrated shorting ring to reduce distortion through midrange frequencies dramatically increasing balance and smoothness of the natural response inside of the vehicle. The voice coils of the RS drivers feature low-mass CCAW winding's providing a low mass thermally compliant solution resulting in excellent dynamics and control with premium thermal properties. Both coils are secured on a non-conductive former that does not contribute to unwanted magnetic field creation and are tested in extensive repeated and increased power tests to verify power handling, reliability and thermal compliance of the overall speaker.
The new ARC Audio Reference Series speakers continue our company’s tradition of optimizing the performance of your entertainment system by using the latest designs and technologies. Visit your local authorized ARC Audio dealer for an entirely new music listening experience.
Available in matched raw sets only, the RS series is available in 3”, 4” and 6” platforms accompanied by an elegant cast audiophile tweeter. The RS1.0 Tweeter is the perfect complement to matching with the RS 4.0 or RS 6.0 for a stunning of revealing 2-way active component system. Bring the RS3.0 into the picture paired with the RS1.0 and the RS6.0 and you now have the tools to help create staging, imaging, and tonal properties capable of finest resolution possible in a vehicle.
The compact and yet sonically versatile RS 3.0 is a 3.0-inch midrange driver perfect for active 3-way systems. With a 1.38-inch mounting depth, small format custom cast chassis design and precision designed components, the RS3.0 is the perfect solution when space restrictions are at an all-time high for any reference audio or competition audio system.
The RS 4.0 provides increased power handling and low-frequency extension and requires a mounting depth of only 1.94 inches. Much like the RS3.0, the RS4.0 uses a hard-pressed composite woven/ papyrus damped paper cone designs. This composite design delivers a low-mass speaker cone with exceptional strength and excellent damping characteristics for smooth and natural sound reproduction across an extremely wide band of frequencies making this a very wide band capable speaker. Papyrus was used in a wide variety of applications and products as far back as 3100 BC to create writing material and was adopted in mainstream manufacturing in audio components dating back to the late 70’s. The balance of strength and durability of the Papyrus plant pith made it optimal for this application. In the new RS-Series speaker cones, the Papyrus damps vibrations and adds rigidity uniformly. The cone is attached to the cast aluminum basket wikh a low shore low-dampened rubber surround for optimal longevity.
Perhaps the most unique features of the RS 3.0 and RS 4.0 are their new dust caps. Long overlooked as a fundamental contributor to high-frequency distortion and in some cases inconsistencies in response at low frequencies. With these typical issues in mind, ARC Audio focused intently on eliminating the drawbacks of undamped dust caps without the need to forego effective cone area by resorting to a phase plug design. The new dust caps feature a semi-parabolic side profile that includes sharp vertical splines to add lateral rigidity. Effectively, these new dust caps remain non-resonant, even at high excursion levels and extreme frequencies. In addition to their sonic characteristics due to the incredible strength of shape, the dust cap design helps eliminate prying fingers from pushing indents into these components. The new design exclusive to the ARC Audio RS drivers provides the resonance control across the operating band typically plagued by traditional designs while balancing the low-frequency response below 400Hz giving installers and system DSP tuners an optimal starting point with a well desired natural free air response that works well with the inside of the vehicle.
The motor assembly of the RS 3.0 and RS 4.0 feature a shallow design that uses a high-strength neodymium slug to provide excellent efficiency without the need for deep mounting depth requirements while retaining superior control of the speaker. With small nuances of difference between the drivers, the RS 3.0 features a distortion and inductance reducing copper cap on top the motor assembly to improve upper midrange and high-frequency performance making this a true compact wideband driver. The RS 4.0 trades the copper slug for an integrated shorting ring to reduce distortion through midrange frequencies dramatically increasing balance and smoothness of the natural response inside of the vehicle. The voice coils of the RS drivers feature low-mass CCAW winding's providing a low mass thermally compliant solution resulting in excellent dynamics and control with premium thermal properties. Both coils are secured on a non-conductive former that does not contribute to unwanted magnetic field creation and are tested in extensive repeated and increased power tests to verify power handling, reliability and thermal compliance of the overall speaker.
The new ARC Audio Reference Series speakers continue our company’s tradition of optimizing the performance of your entertainment system by using the latest designs and technologies. Visit your local authorized ARC Audio dealer for an entirely new music listening experience.
Share
-
Features
-
Specifications
RS Series Speaker ManualComing SoonSpeaker Size4.0"Speaker TypeMidrange -Raw DriverPower Handling (Peak)150 WattsPower Handling (RMS)75 WattsFrequency Response90Hz - 11.5kHzSensitivity91dBImpedance4 ohmsBasket MaterialCast AluminumCone MaterialComposite Papyrus filled PaperSurround MaterialLow Shore RubberSpider MaterialSynthetic Progressive NomexMotor StructureMulti-Step CNC Precision cutCopper Shorting RingYesVoice CoilCCAWMounting Depth1.94"Cutout Diameter4.039"Maximum Outer Diameter4.763"Mounting Flange Thickness..190"Grills IncludedNo
TS ParametersRdc3.2 OhmsFS77 HzMms4.9 gBl4.3 TmRms.45 kg/sCms.87 mm/nSd50 CM2Qms5.27 gQes.41Qts.38Vas3.1 LitersSPL (2.83 V/1 m)91 dB
