ARC Audio

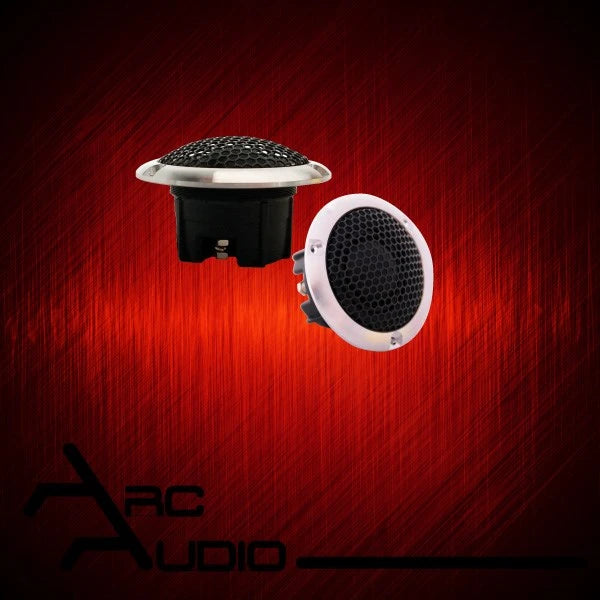

ARC Audio RS 1.0 Tweeters
ARC Audio RS 1.0 Tweeters
Sale
Sold out
RS Series speakers offer performance that brings out the subtleties and nuances in your music. When integrated into your system, instruments will sound more realistic, voices will sound more natural, and the sheer dynamics of your music will simultaneously impress and startle you. Designed for today's active DSP based aftermarket and OEM replacement systems the RS Series exemplifies the focus of quality and detail without having to mortgage your home to obtain it.
Available in matched raw sets only, the RS series is available in 3”, 4” and 6” platforms accompanied by an elegant cast audiophile tweeter. The RS1.0 Tweeter is the perfect complement to matching with the RS 4.0 or RS 6.0 for a stunning of revealing 2-way active component system. Bring the RS3.0 into the picture paired with the RS1.0 and the RS6.0 and you now have the tools to help create staging, imaging, and tonal properties capable of finest resolution possible in a vehicle.
The RS 1.0 tweeter features a low mass, fine-weave soft dome diaphragm to transfer sound energy from the voice coil to the listener. This dome-design ensures a smooth frequency response from the low resonant frequency of the driver.
A high-strength neodymium magnet and custom-designed motor structure powers the tweeter and provides excellent efficiency and dynamics with incredible control and tonal stability. A secondary bucking magnet further intensifies the magnetic field strength of the gap while reducing distortion during higher demand use periods. Of course, it doesn’t stop there, a large copper cap on the top of the motor assembly helps to reduce inductance and distortion for incomparable detail and extremely high frequencies assuring that you get the finest sonic details across the entire listening spectrum.
Mechanically, the RS 1.0 features a solid cast aluminum tuned chamber chassis with integrated cooling provisions that allow heat to be vented from underneath the diaphragm. This large rear chamber of the tweeter helps enhance the low resonant frequency of the driver and assists in cooling the motor assembly for improved power handling over long listening periods.

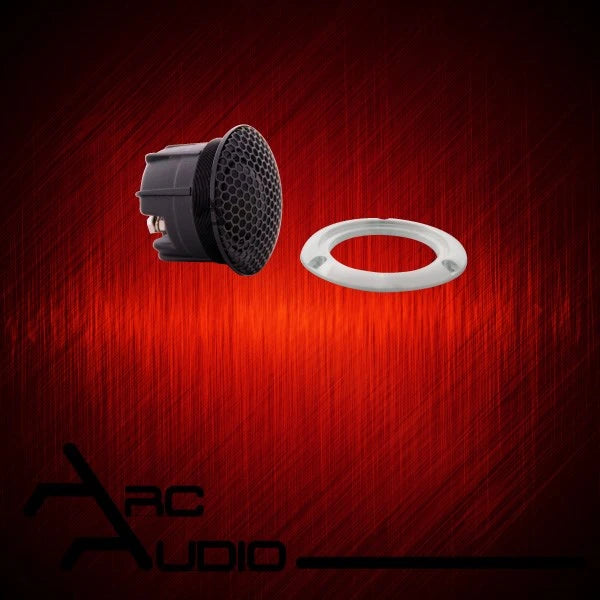

Enhancing the flexibility of the multiple applications suitable for the RS1.0 the machine finished outer mounting ring is removable leaving the threaded main body housing providing additional ISO style reduced mounting diameter making it excellent for both custom and OEM speaker upgrade installations.
Available in matched raw sets only, the RS series is available in 3”, 4” and 6” platforms accompanied by an elegant cast audiophile tweeter. The RS1.0 Tweeter is the perfect complement to matching with the RS 4.0 or RS 6.0 for a stunning of revealing 2-way active component system. Bring the RS3.0 into the picture paired with the RS1.0 and the RS6.0 and you now have the tools to help create staging, imaging, and tonal properties capable of finest resolution possible in a vehicle.
The RS 1.0 tweeter features a low mass, fine-weave soft dome diaphragm to transfer sound energy from the voice coil to the listener. This dome-design ensures a smooth frequency response from the low resonant frequency of the driver.
A high-strength neodymium magnet and custom-designed motor structure powers the tweeter and provides excellent efficiency and dynamics with incredible control and tonal stability. A secondary bucking magnet further intensifies the magnetic field strength of the gap while reducing distortion during higher demand use periods. Of course, it doesn’t stop there, a large copper cap on the top of the motor assembly helps to reduce inductance and distortion for incomparable detail and extremely high frequencies assuring that you get the finest sonic details across the entire listening spectrum.
Mechanically, the RS 1.0 features a solid cast aluminum tuned chamber chassis with integrated cooling provisions that allow heat to be vented from underneath the diaphragm. This large rear chamber of the tweeter helps enhance the low resonant frequency of the driver and assists in cooling the motor assembly for improved power handling over long listening periods.
Enhancing the flexibility of the multiple applications suitable for the RS1.0 the machine finished outer mounting ring is removable leaving the threaded main body housing providing additional ISO style reduced mounting diameter making it excellent for both custom and OEM speaker upgrade installations.
Share
-
Features
-
Specifications
Speaker Size25mmSpeaker TypeTweeterPower Handling (Peak)120 WattsPower Handling (RMS)60 WattsFrequency Response2.2kHz - 22kHzSensitivity92.5dBImpedance4 ohmsHousing MaterialCast AluminumDiaphragm MaterialFine Woven SilkCopper Shorting RingYesMounting Depth (with outer mounting ring)1.175"Mounting Depth (w/o outer mounting ring 'ISO')1.163"Maximum Outer Diameter (with outer ring)2.440"Maximum Outer Diameter (w/o outer ring)1.907"Cutout Diameter (w/o outer ring)1.613"Removable Outer Mounting Ring Thickness.185" Rolled edge progressive
