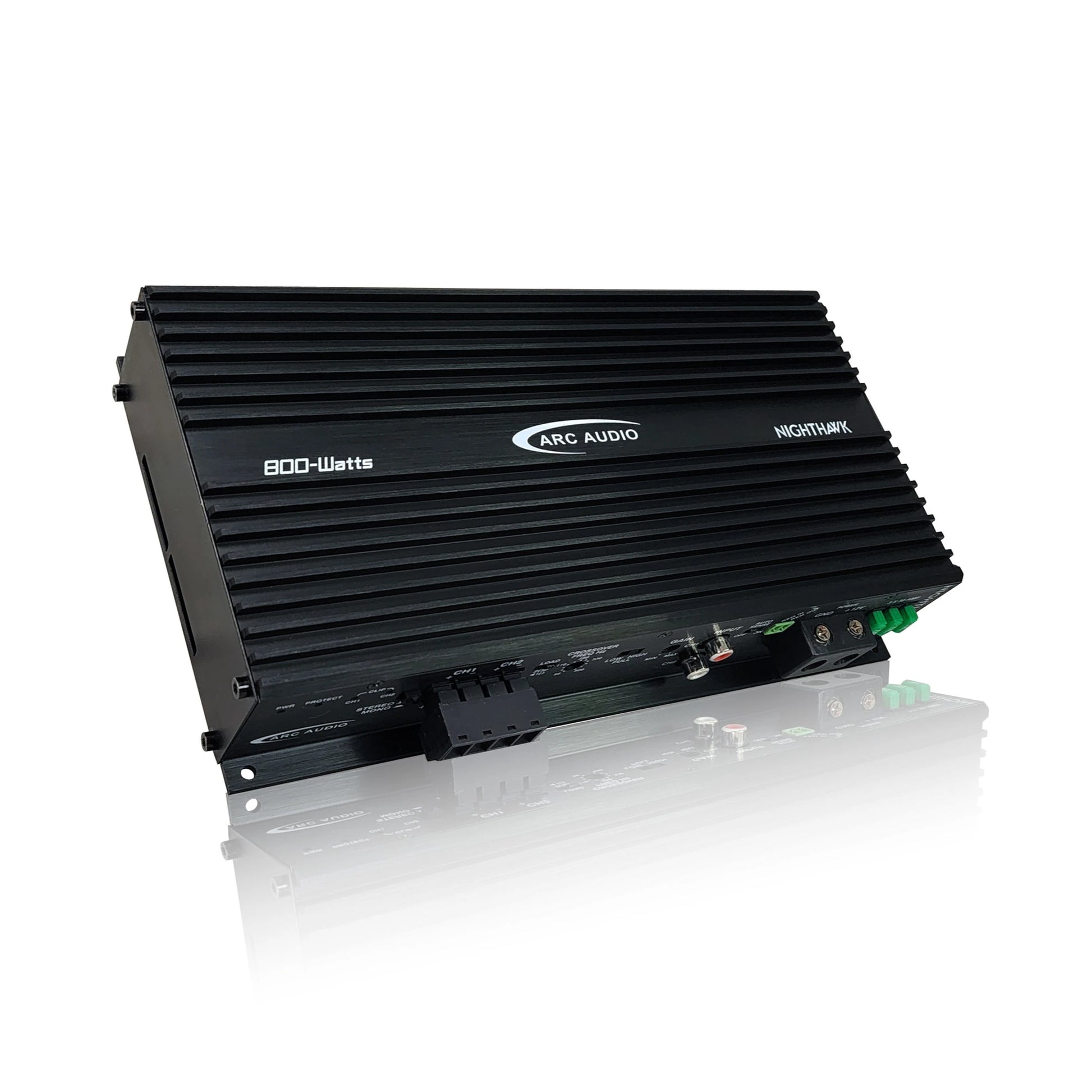

ARC Audio Nighthawk Amplifier

ARC Audio Nighthawk Amplifier

Contact us for pricing
$73,008.00 USD
Sale Sold out
We're always striving to get better at what we do. Whether it's uncovering a bit more oomph, reducing annoying sound distortions, or simply enjoying endless hours of music, we're on the lookout for that perfect balance of amazing sound and pure imagination. The reason our product stands out as "premium" is because we've invested ample time and effort into refining every single aspect of it. Trust me, we took our sweet time with this one.

The Nighthawk is equipped with the latest Class D driver and Infineon outputs, resulting in performance that's just as outstanding as other types of amplifiers. Now, don't get me wrong, we designed this baby to be the ultimate bass amplifier. It effortlessly hits all the power ratings at a low frequency of 40Hz, and it can keep going strong all day long. The specs speak for themselves, my friend. It's truly impressive.

So, whether you're a seasoned audiophile or just a passionate music enthusiast, rest assured that our Nighthawk is the real deal. It's a fun and professional piece of equipment that's bound to blow your socks off with its incredible performance. Get ready to be amazed!
View full details

  • Features

  • Specifications

    Stereo Power @ 14.4V-1% THD All Channels Driven


    4 Ohm = 250 Watts x 2

    2 Ohm = 400 Watts x 2

    1 Ohm = 400 Watts x 2

    Bridged

    4 Ohm = 800 Watts x 1

    2 Ohm = 800 Watts x 1

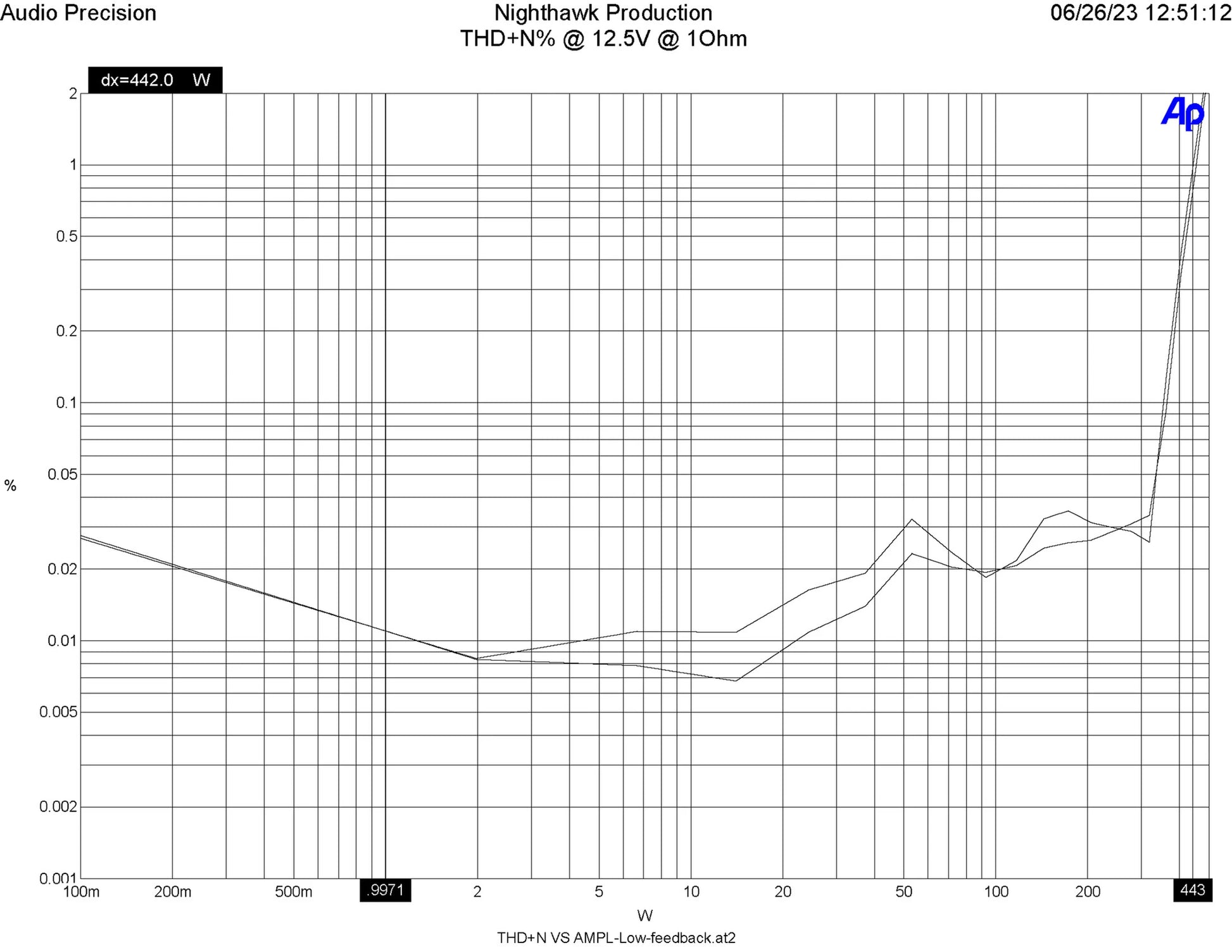

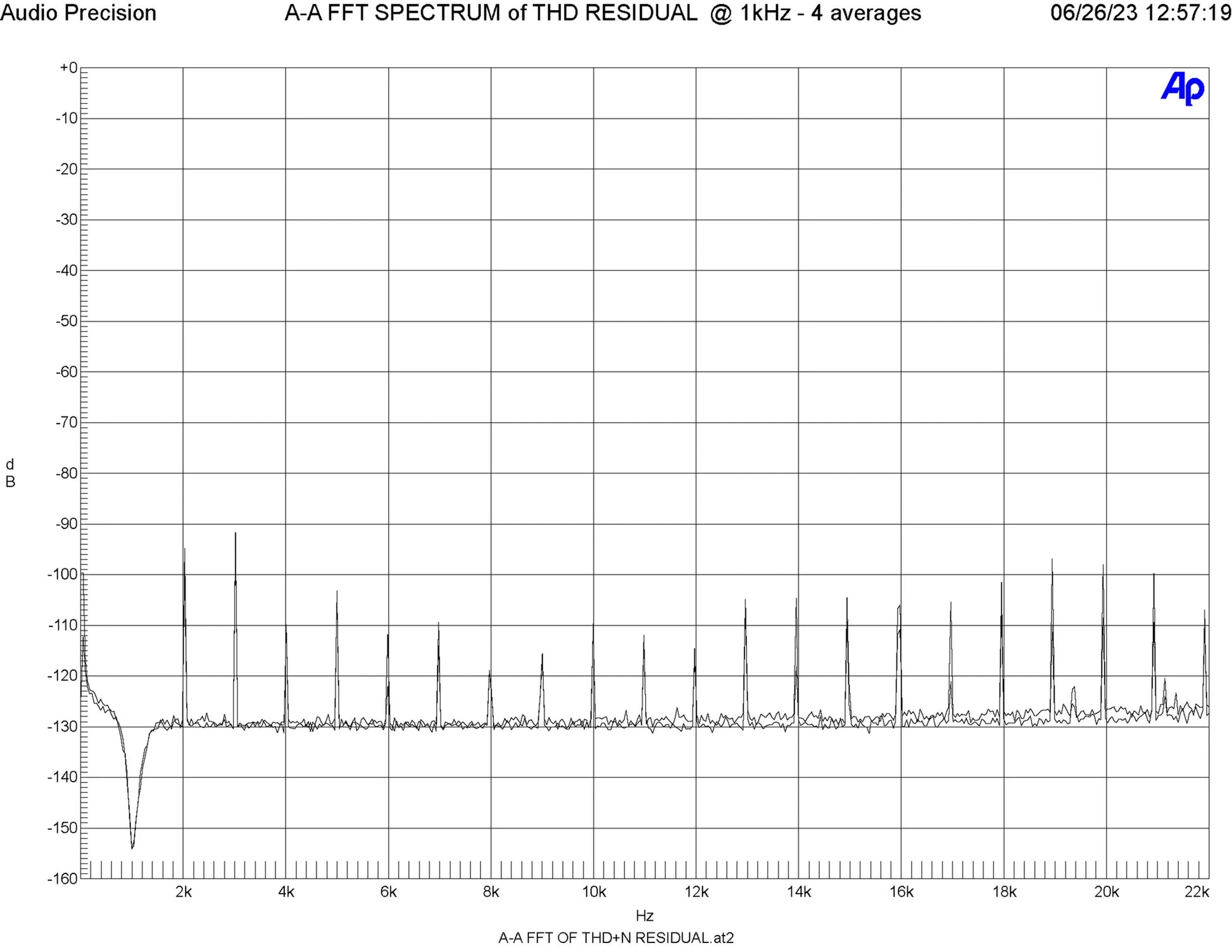

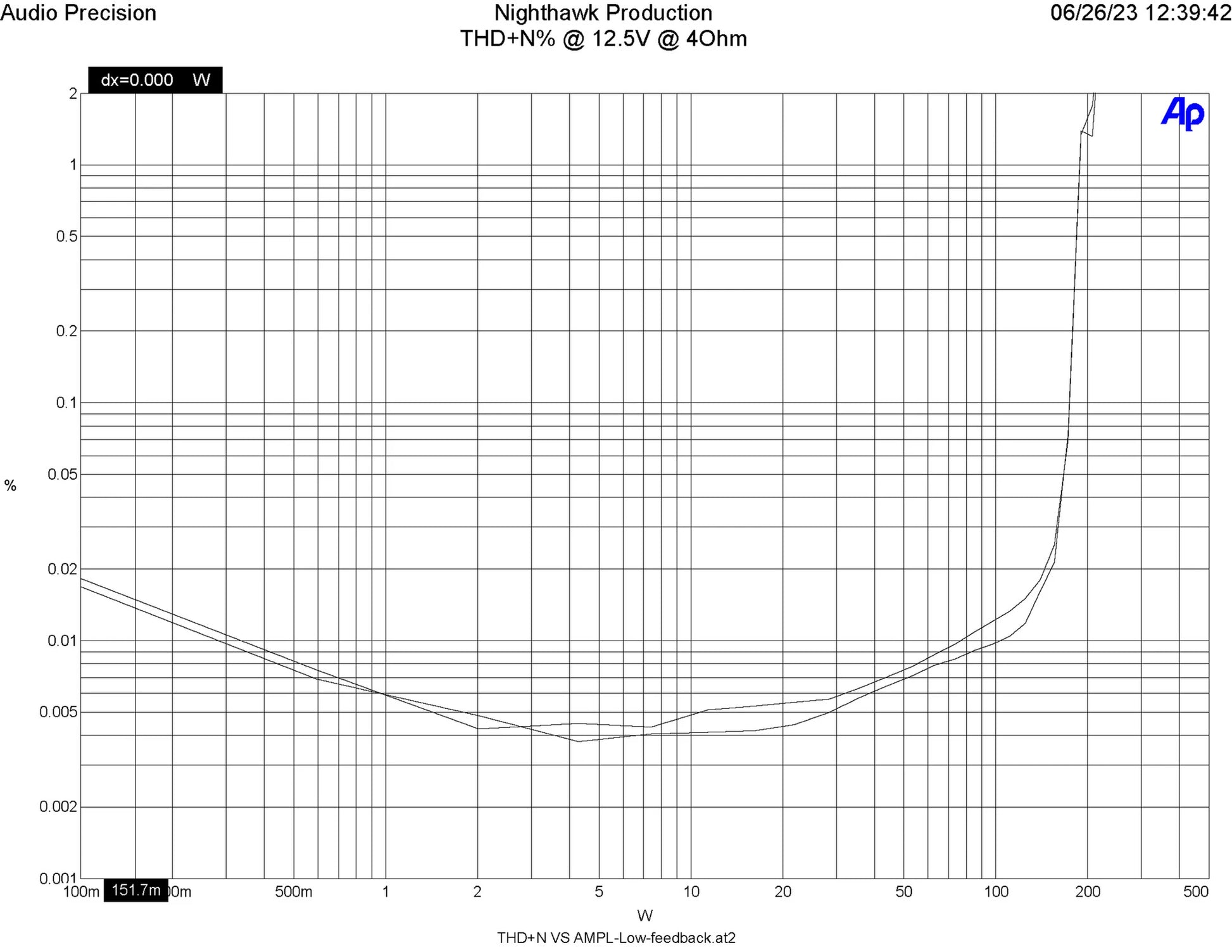

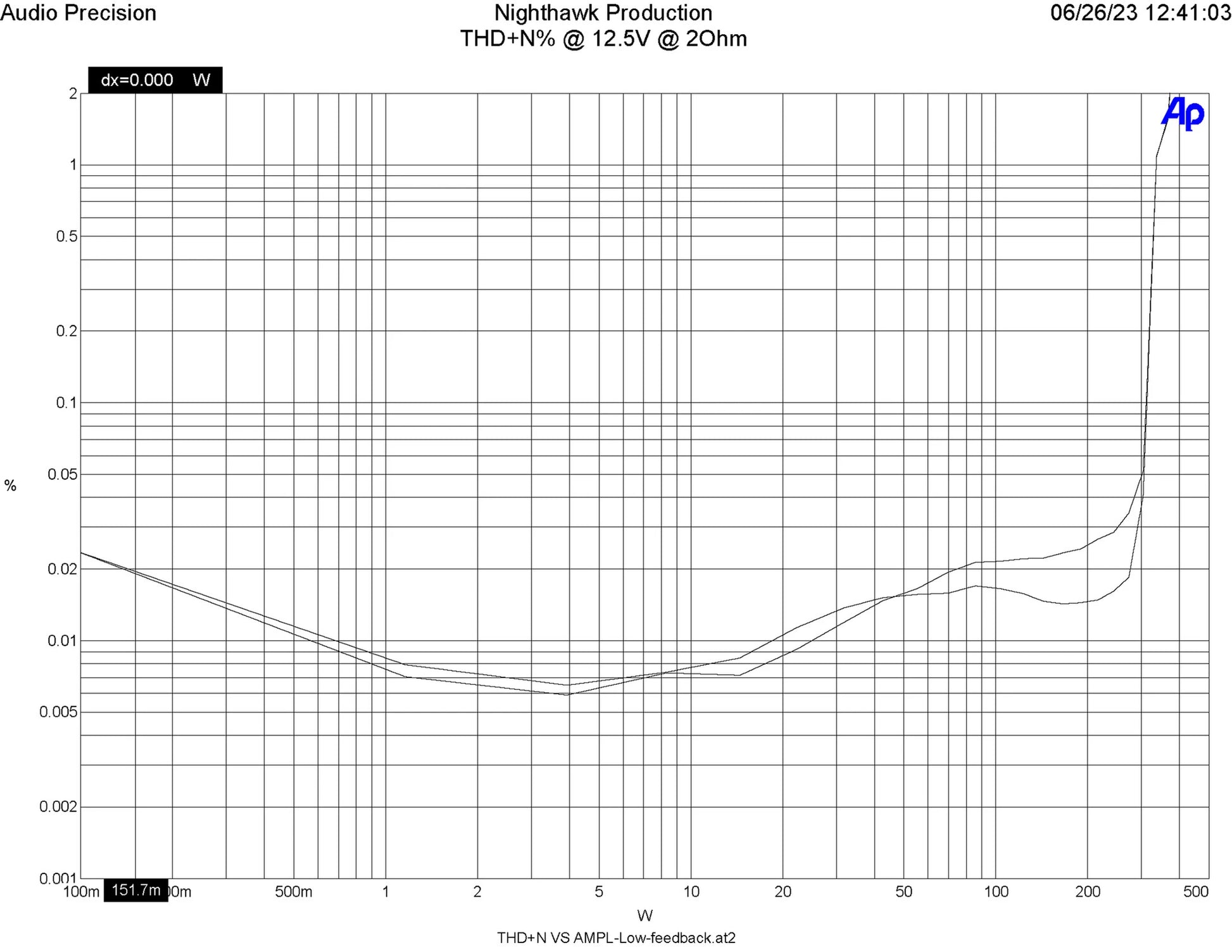

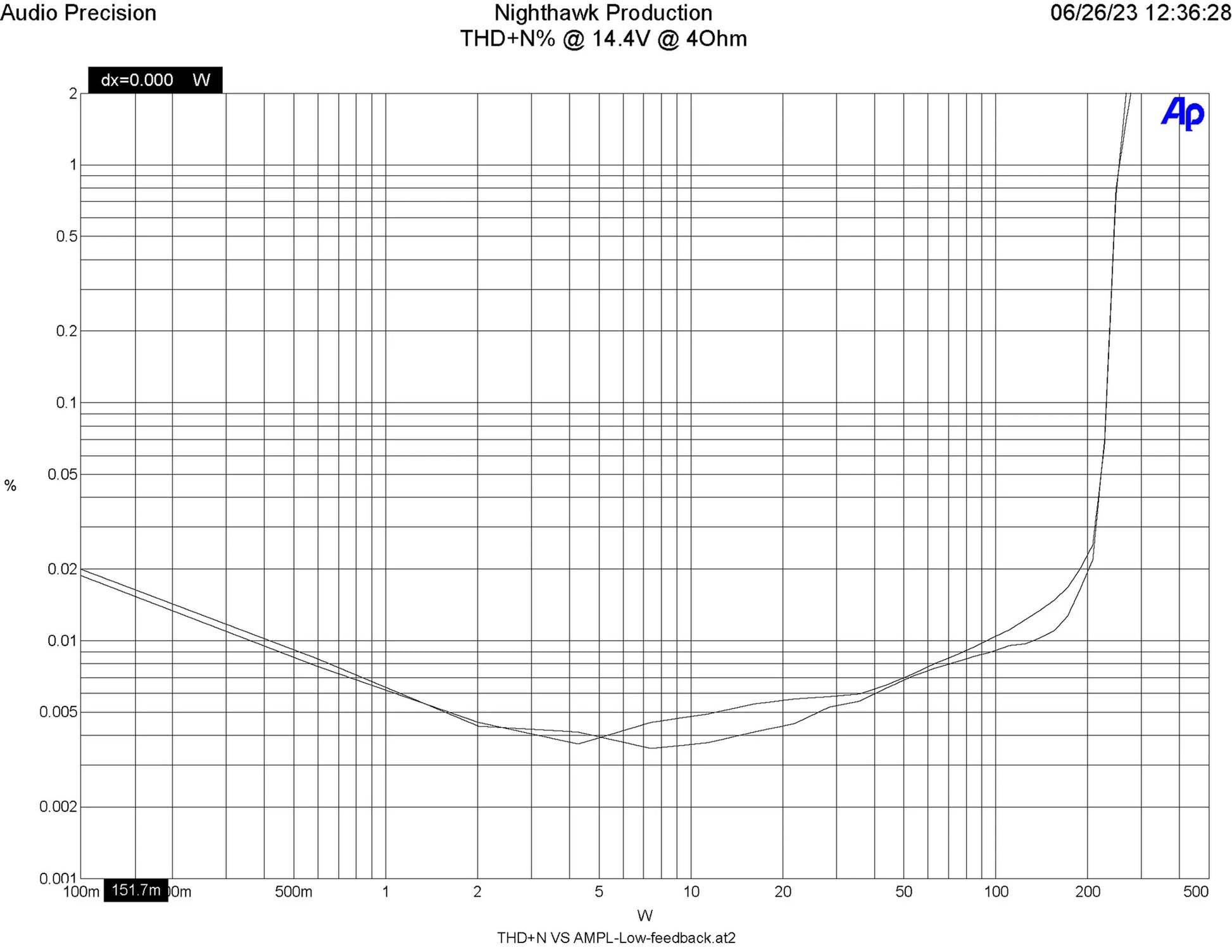

    Distortion

    Below 0.02% THD from 100mW to 200 Watts

    Best THD 0.005% 2 Watts to 20 Watts

    THD 20Hz to 20KHz (1 Watt) .009%

    Signal to Noise Ratio

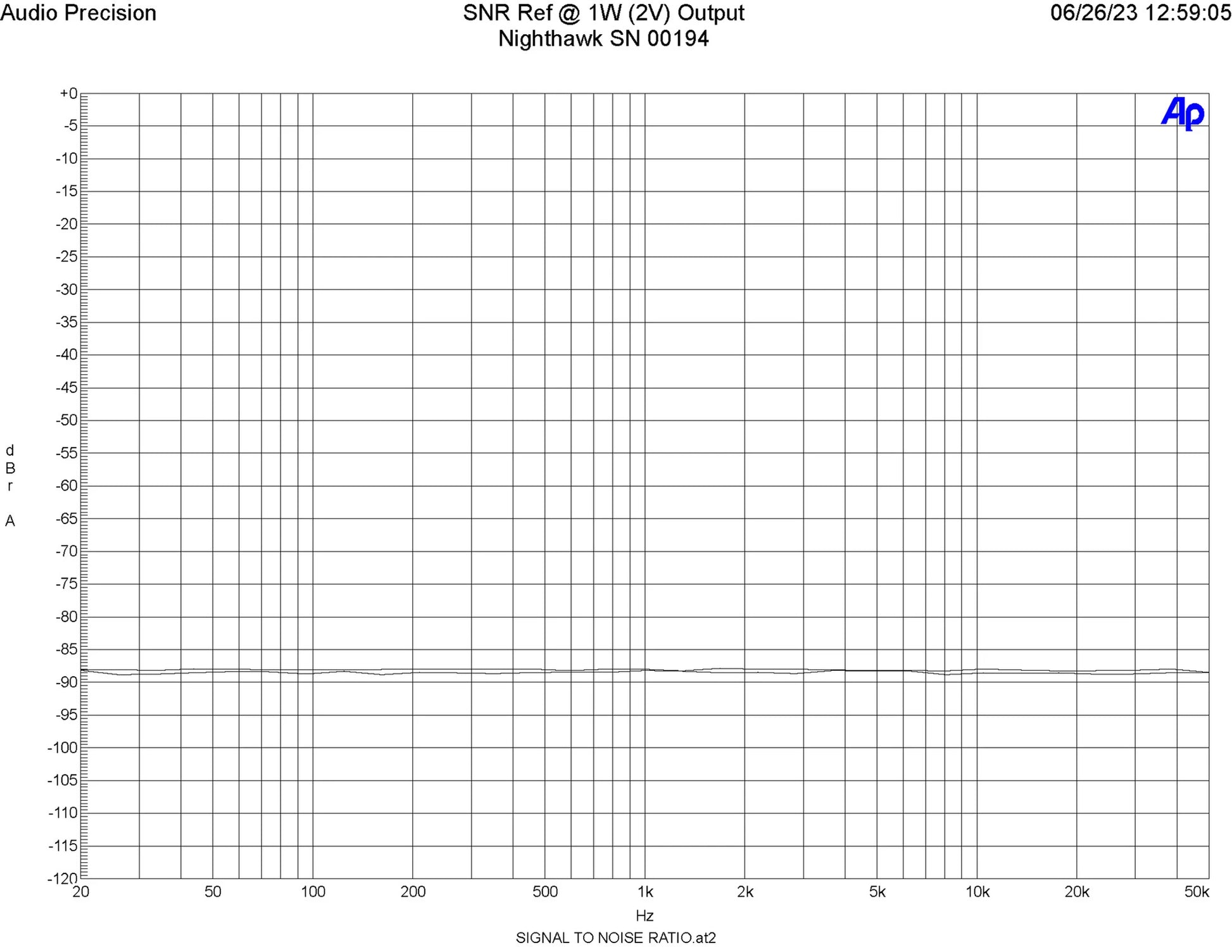

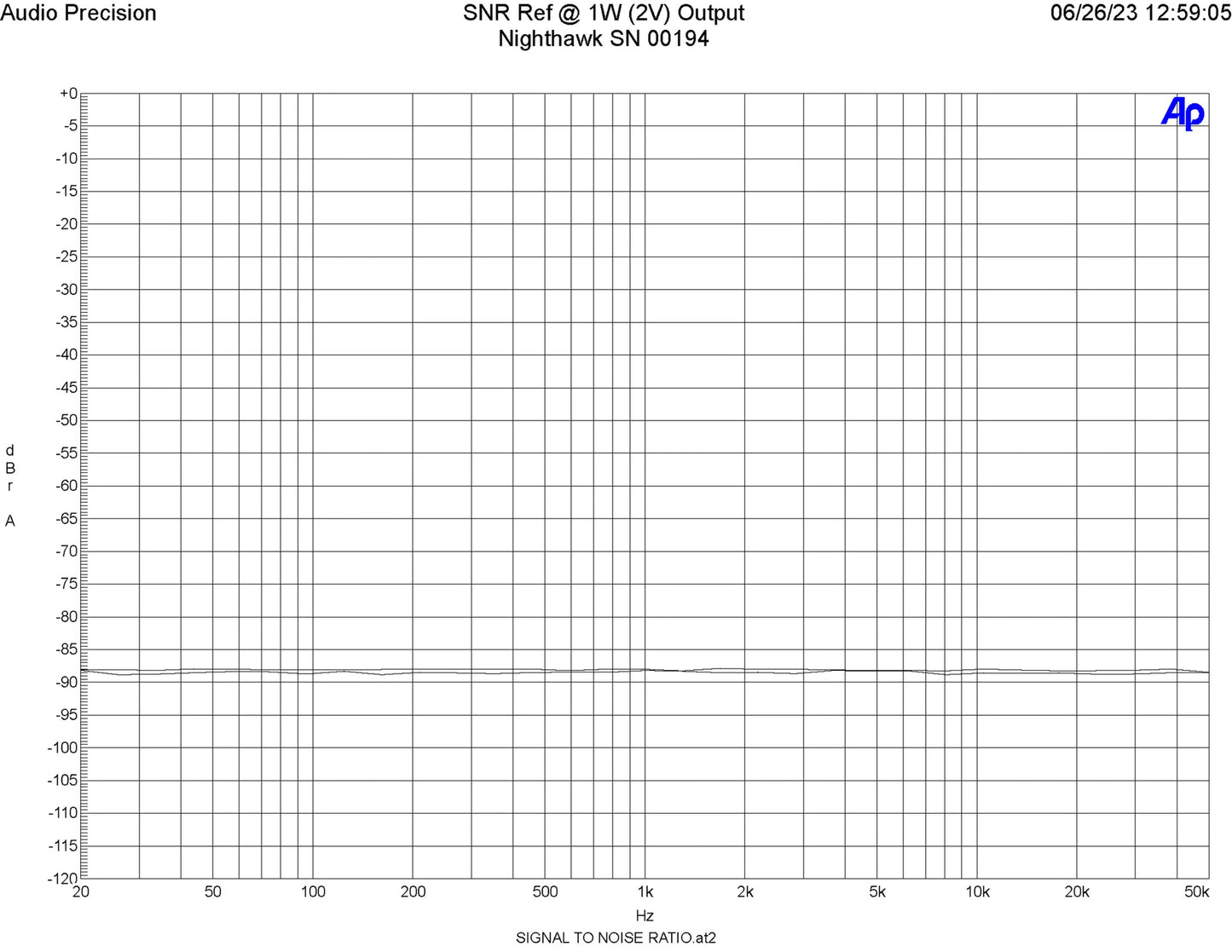

    -88dB Referenced to 1 Watt (2V)

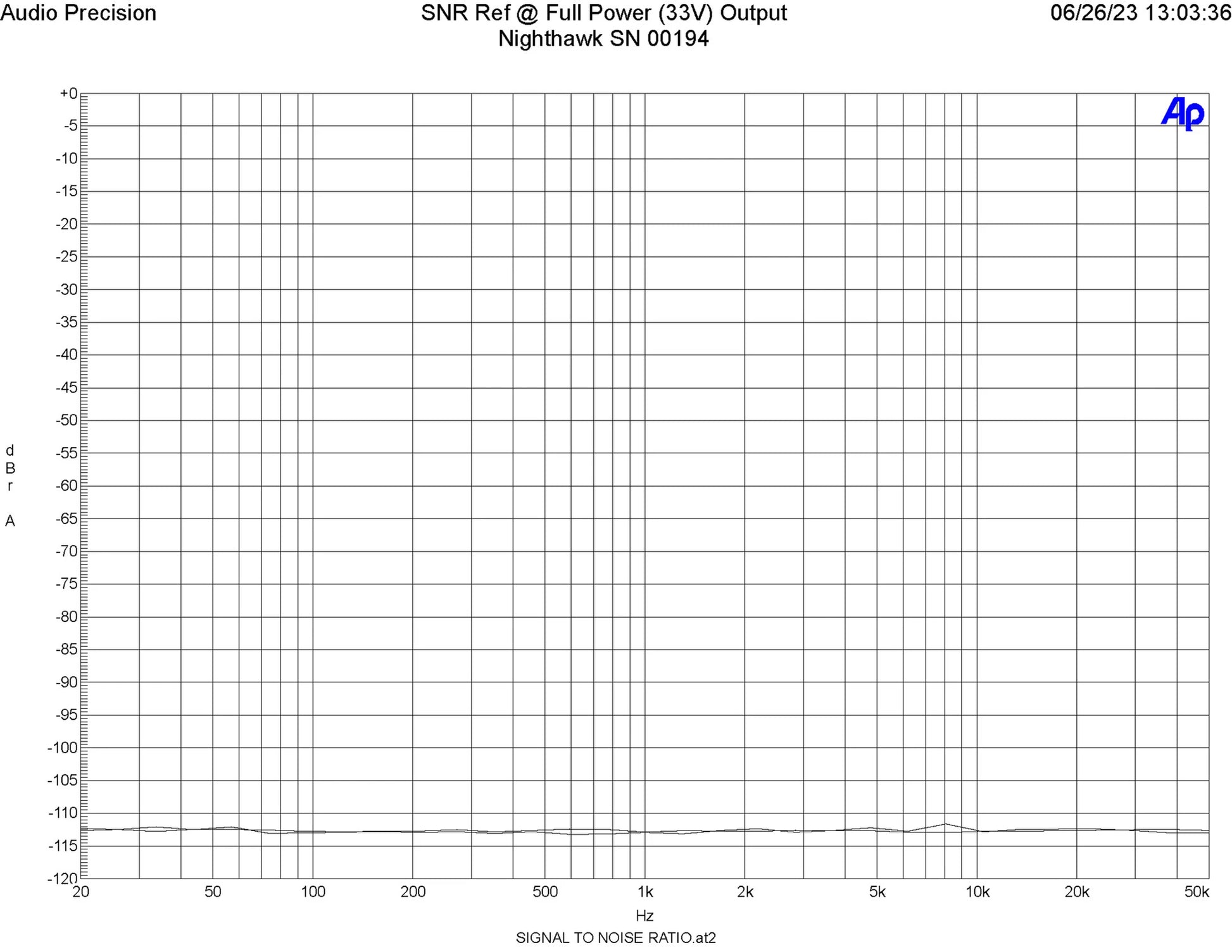

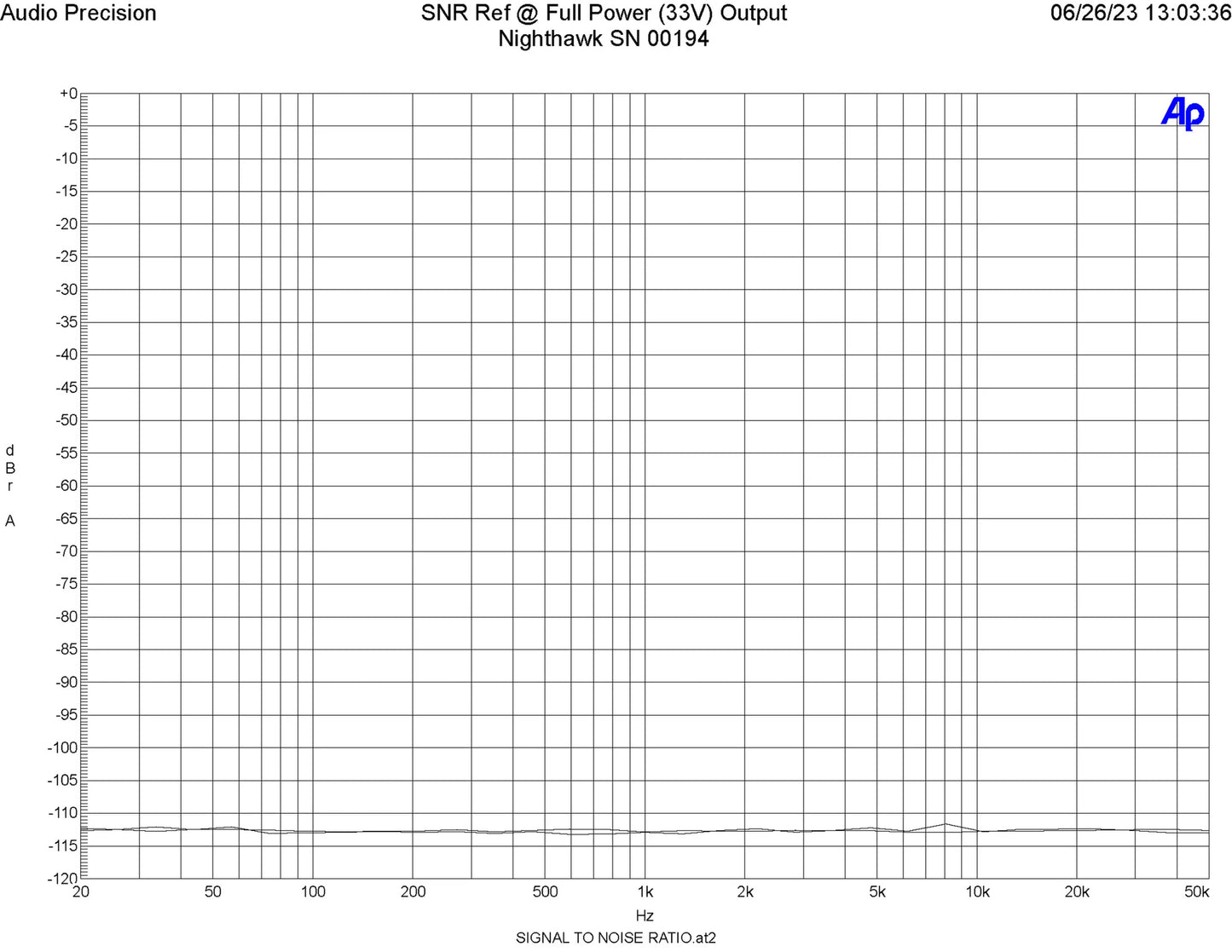

    -113dB Reference to Full Power (31.5V)

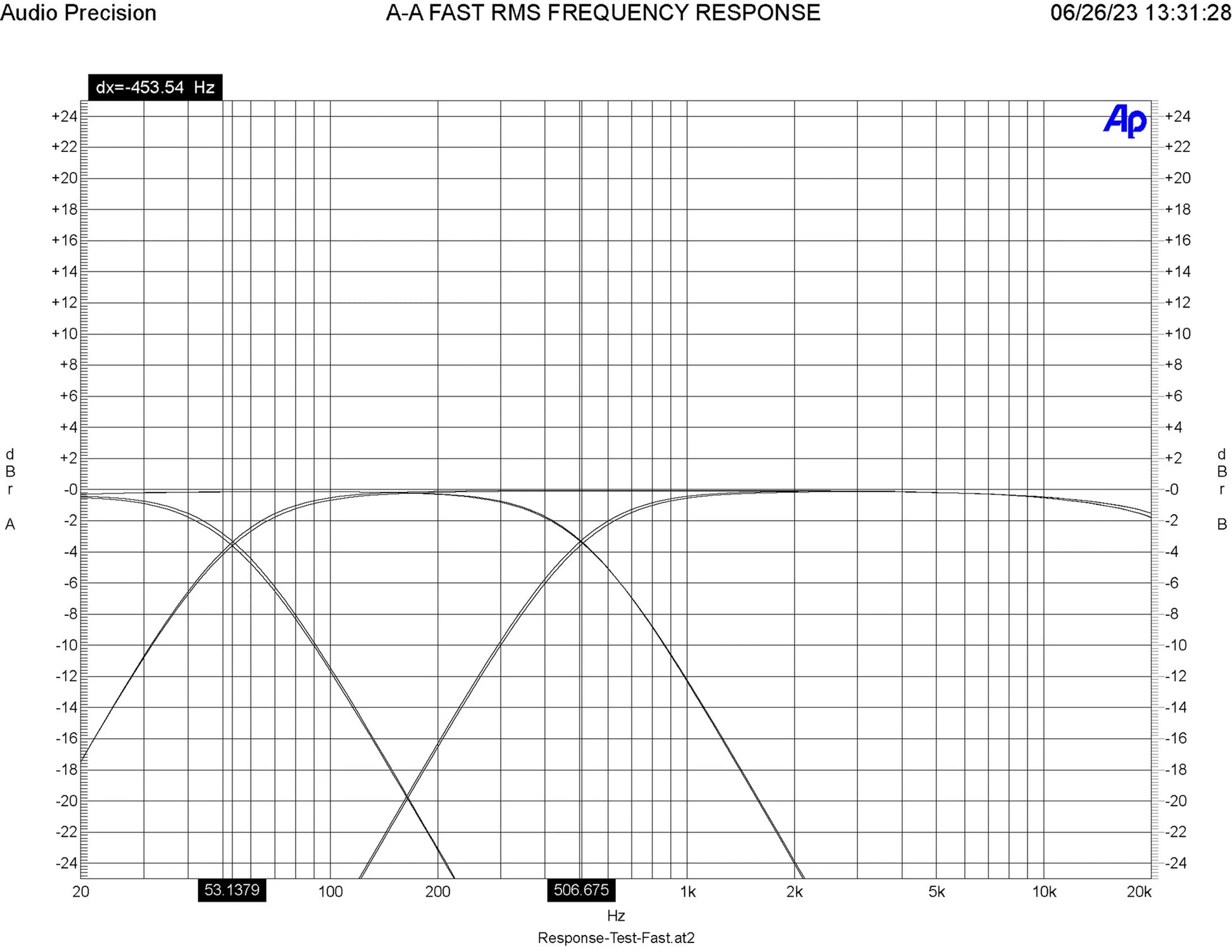

    Crossover

    55Hz -500Hz 12dB Per Octave

    Highpass, Lowpass Full Range

    State variable filters

    Linkwitz Riley

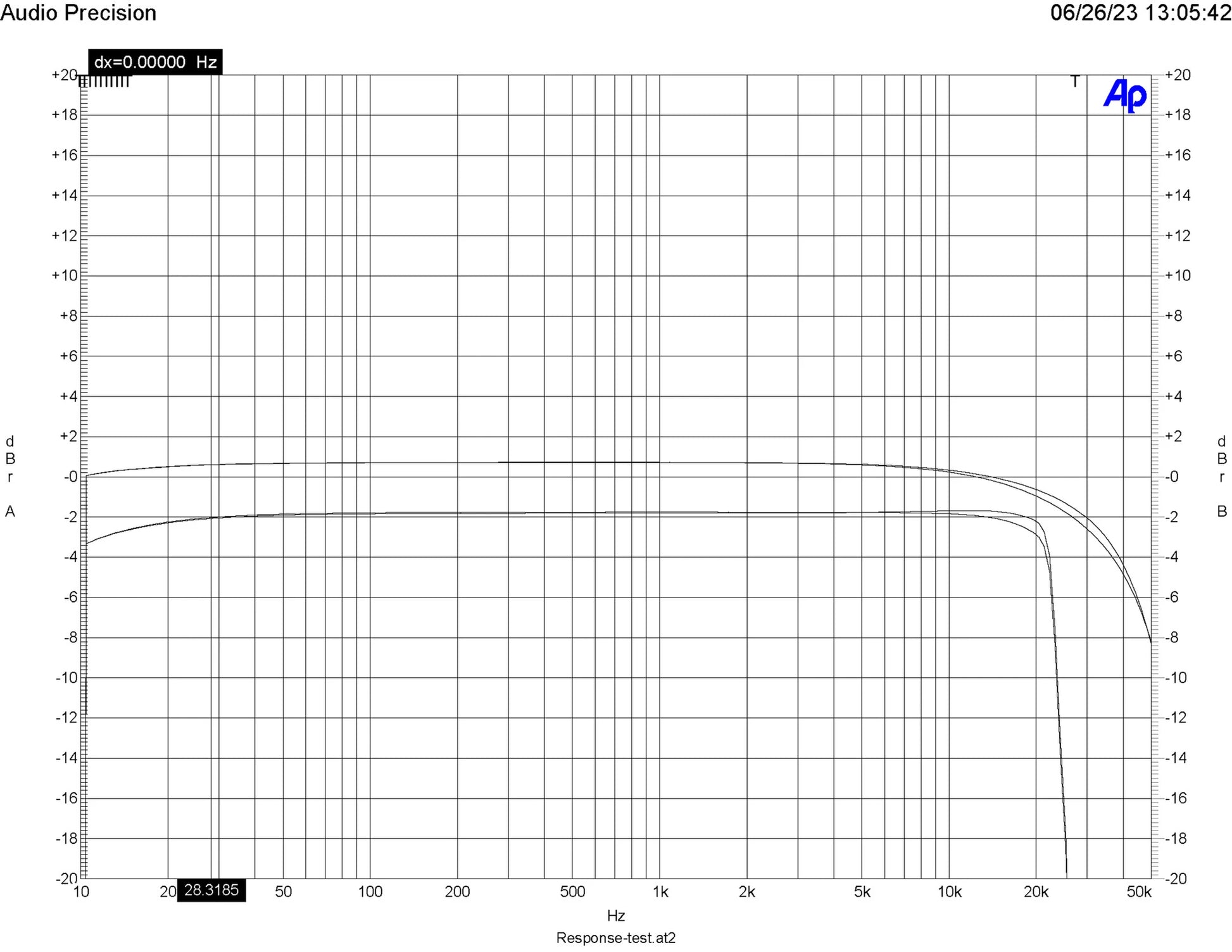

    Bandwidth

    10Hz to 20KHz (-1dB)

    10Hz to 32KHz (-3dB)

    Operating Voltage

    10.5VDC – 17.1VDC

    Low voltage warning light

    11.4VDC

    Start Stop Voltage

    4.6VDC

    Gain Range

    150mV – 5.25V

    Input Type

    Balanced

    Operating Temperature

    -4F – 180F (-20C -- 82C)

    Fuses

    3 x 30A

    Type Mini ATM

    Dimensions

    10.35”(L) x 6”(W) x 2”(H)

    260mm(L) x 152mm(W) x 51mm(H)

    Features

    DC Auto Detect Turn On

    Speaker Connection by High Current Plug

    Selectable Ohm Load Stability

    Stereo/Mono Switch allows single input operation.

    Start Stop compatible.

    Compatible with charging systems up to 17 Volts.

    Variable Speed Ball Bearing Fan Cooling
