JL Audio

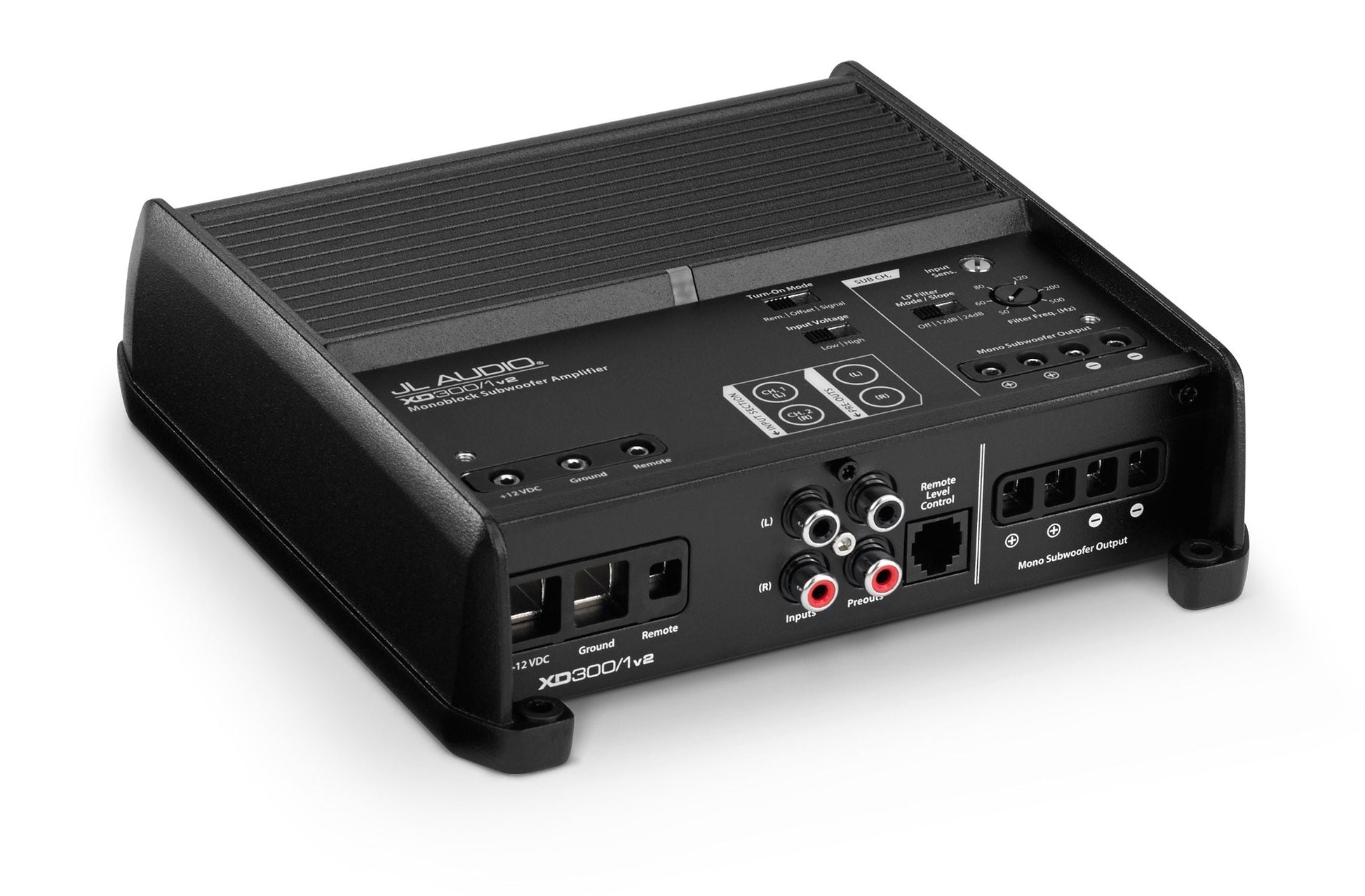

JL Audio XD300/1v2

JL Audio XD300/1v2

Contact us for pricing
$483.00 USD
Sale Sold out

XDv2 amplifiers feature hyper-efficient NexDª Class D technology to deliver audiophile-grade performance from within an incredibly compact package.
Advanced thermal management systems and a full complement of studio-grade signal processing features are standard, and an HD-RLC (sold separately)
can be added to all models for remote level control. Available in a wide range of configurations to suit any system design.

View full details

  • Features

    Monoblock Class D Subwoofer Amplifier, 300 W x 1 @ 2 Ω / 200 W x 1 @ 4 Ω - 14.4V

    This ultra-compact monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output for its size. It is small enough to fit in the tightest space applications, including motorcycles and ATV’s (in a weather-tight compartment).

    Targeted specifically for subwoofer applications, the XD300/1v2 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz.

    The XD300/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

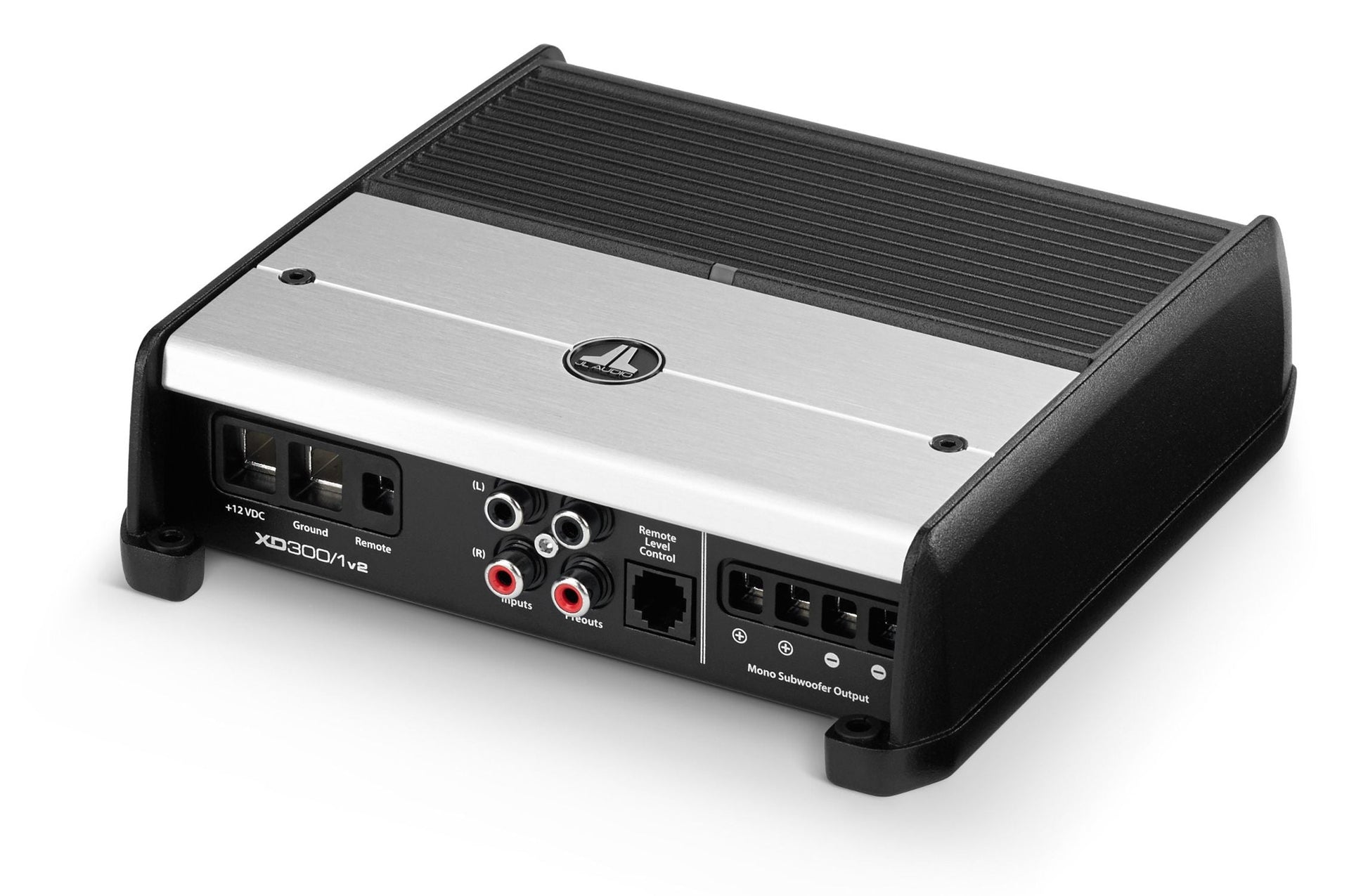

    This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

  • Specifications

    Rated Continuous (RMS) Power @ 14.4 V@ 4 Ω200 W RMS x 1@ 3 Ω250 W RMS x 1@ 2 Ω300 W RMS x 1@ 1.5 ΩN/A

    Rated Continuous (RMS) Power @ 12.5 V@ 4 Ω160 W RMS x 1@ 3 Ω210 W RMS x 1@ 2 Ω270 W RMS x 1@ 1.5 ΩN/A

    General SpecificationsFrequency Response10 Hz - 1 kHz (+0, -1dB)S/N Ratio, referred to highest rated power>100 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W>80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 4 Ω>120 / 50 HzDamping Factor @ 2 Ω>60 / 50 HzTHD+N @ Rated Power<1% @ 2 Ω per Ch.Input Voltage Range @ RCA InputsSwitchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)Min.Copper Power / Ground Wire Gauge8 AWG wireFuse Rating30 A (AFS, AGU or MaxiFuse™)

    Signal ProcessingFilter Mode(s)Low-Pass onlyFilter Slope(s)12/24 dB/octaveFilter Frequency Range50 Hz - 500 HzDetented, Calibrated Filter Freq. PotentiometerYesFilter Defeat FunctionYesInfrasonic FilternoneBass Boost EQNoOutput Polarity SwitchNoRemote Subwoofer Level ControlOptional (HD-RLC)Remote Bass EQ Boost ControlNoPass-Through Preamp OutputBuffered

    Physical SpecificationsHeight (H)2.05 in / 52 mmWidth (W)6.85 in / 174 mmDepth (D)7.09 in / 180 mmNet Weight3.8 lb / 1.72 kg
