JL Audio

JL Audio C3-100ct

JL Audio C3-100ct

Contact us for pricing
$223.00 USD
Sale Sold out
Component System or Coaxial System... you decide with these convertible loudspeaker systems featuring programmable outboard crossover networks and pure silk soft-dome tweeters. Glass-filled, non-magnetic, injection-molded polymer woofer baskets, oversized 1.2-inch voice coils, Mica-filled polypropylene cones. Grilles included (except C3-570 and C3-570cw).
View full details

  • Features

    The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.

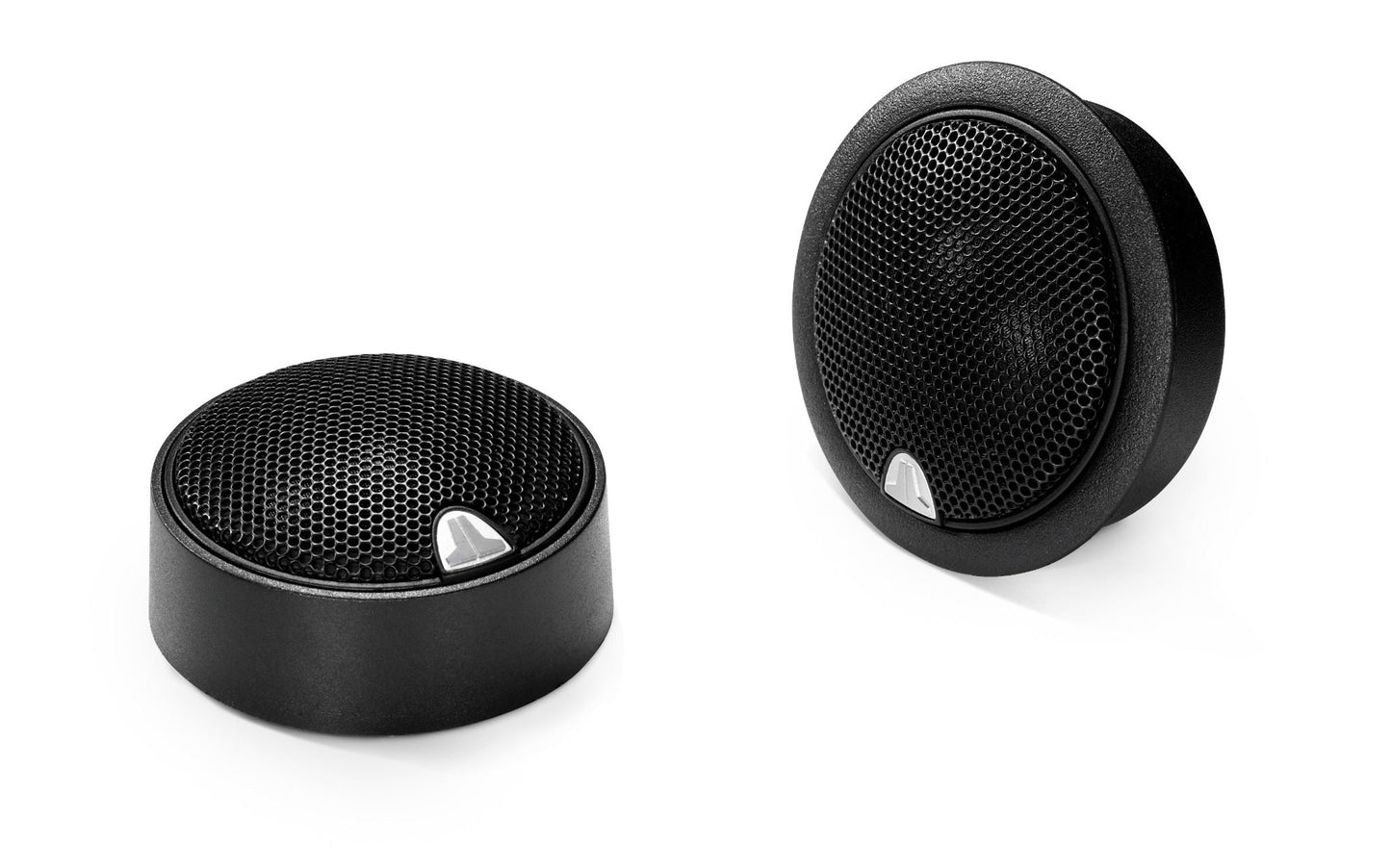

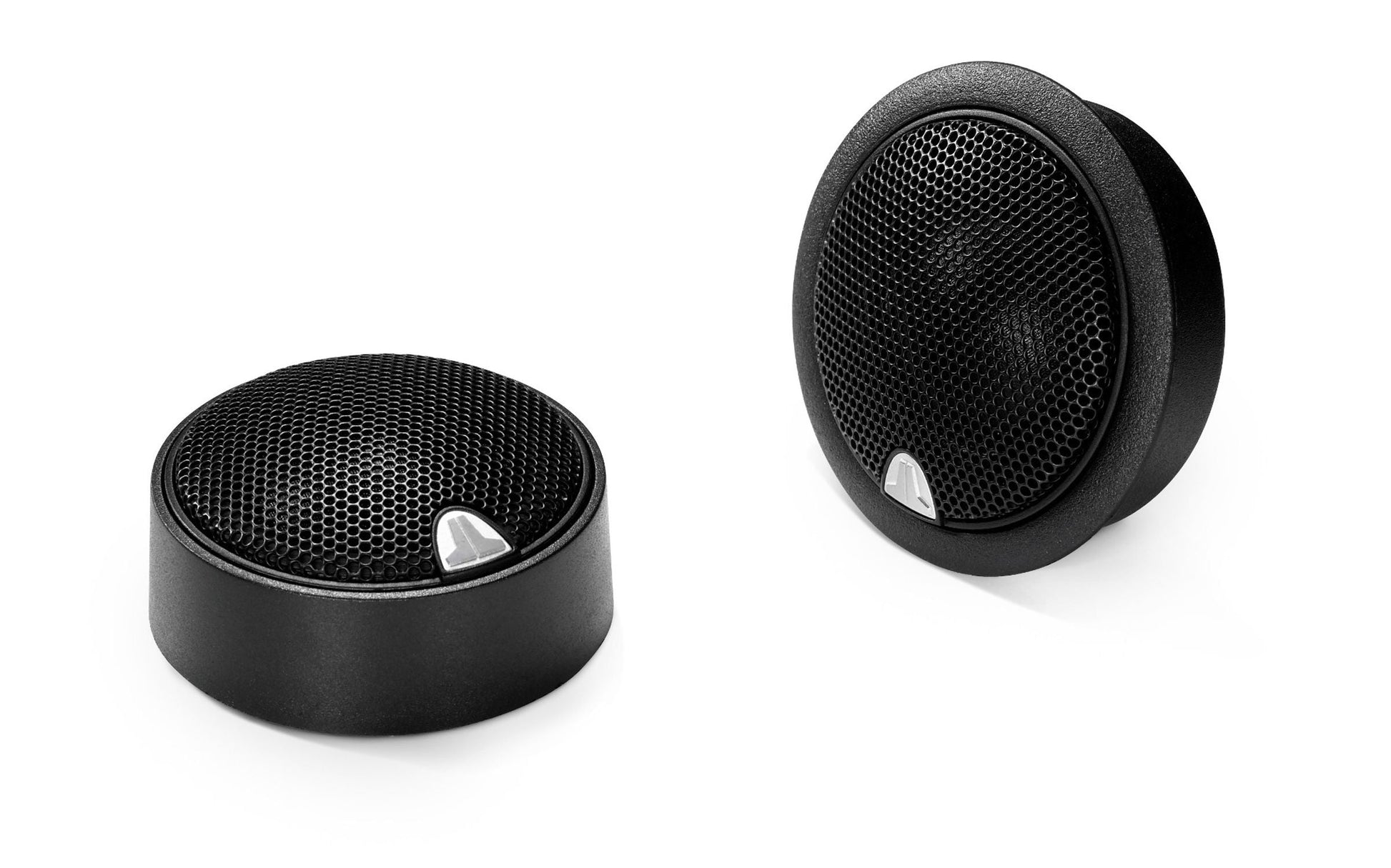

    The C3 component tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be installed coaxially onto the C3 woofers using the fixtures included with the C3 Component / Coaxial Systems.

    Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C3-100ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.

    Sonic character: Clean and Powerful

    Sold as a pair.

  • Specifications

    General SpecificationsContinuous Power Handling (RMS)75 WRecommended Amplifier Power (RMS)25 - 150 W / Ch.System Efficiency90.0 dB @ 1 W / 1 mSystem Nominal Impedance4 ΩSystem Frequency Response4 kHz - 25 KHz ± 3 dB*With supplied crossover

    Tweeter Physical SpecificationsFlush Mount Fixture Diameter (A1)2.12 in / 54 mmSurface Mount Fixture Diameter (A2)1.93 in / 49 mmFlush Mount Mounting Hole Diameter (B)1.875 in / 48 mmFlush Mount Mounting Depth (C)0.71 in / 18.0 mmFlush Mount Tweeter Frontal Protrusion (D1)0.32 in / 8 mmSurface Mount Tweeter Frontal Protrusion (D2)0.95 in / 24 mm
