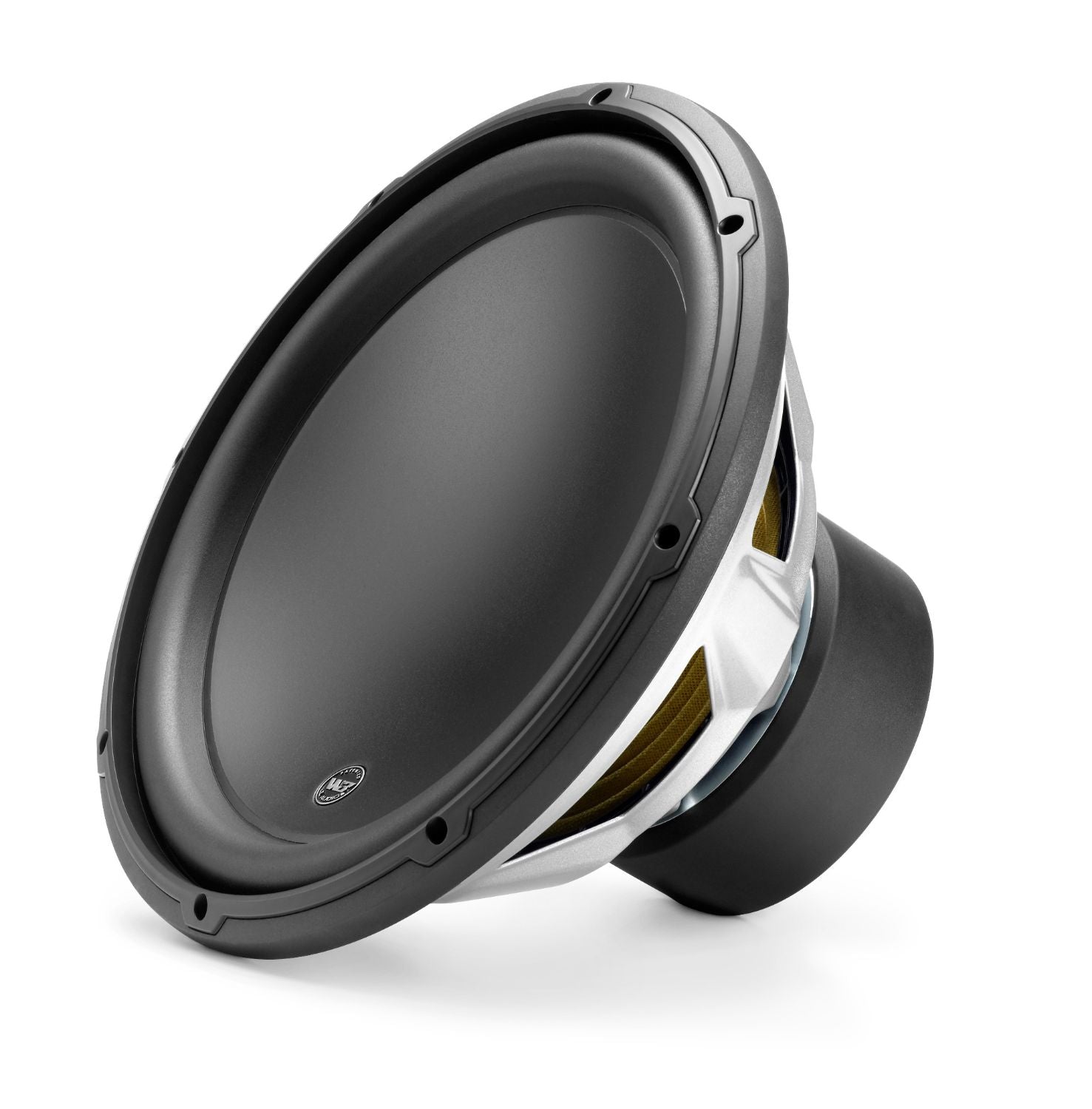

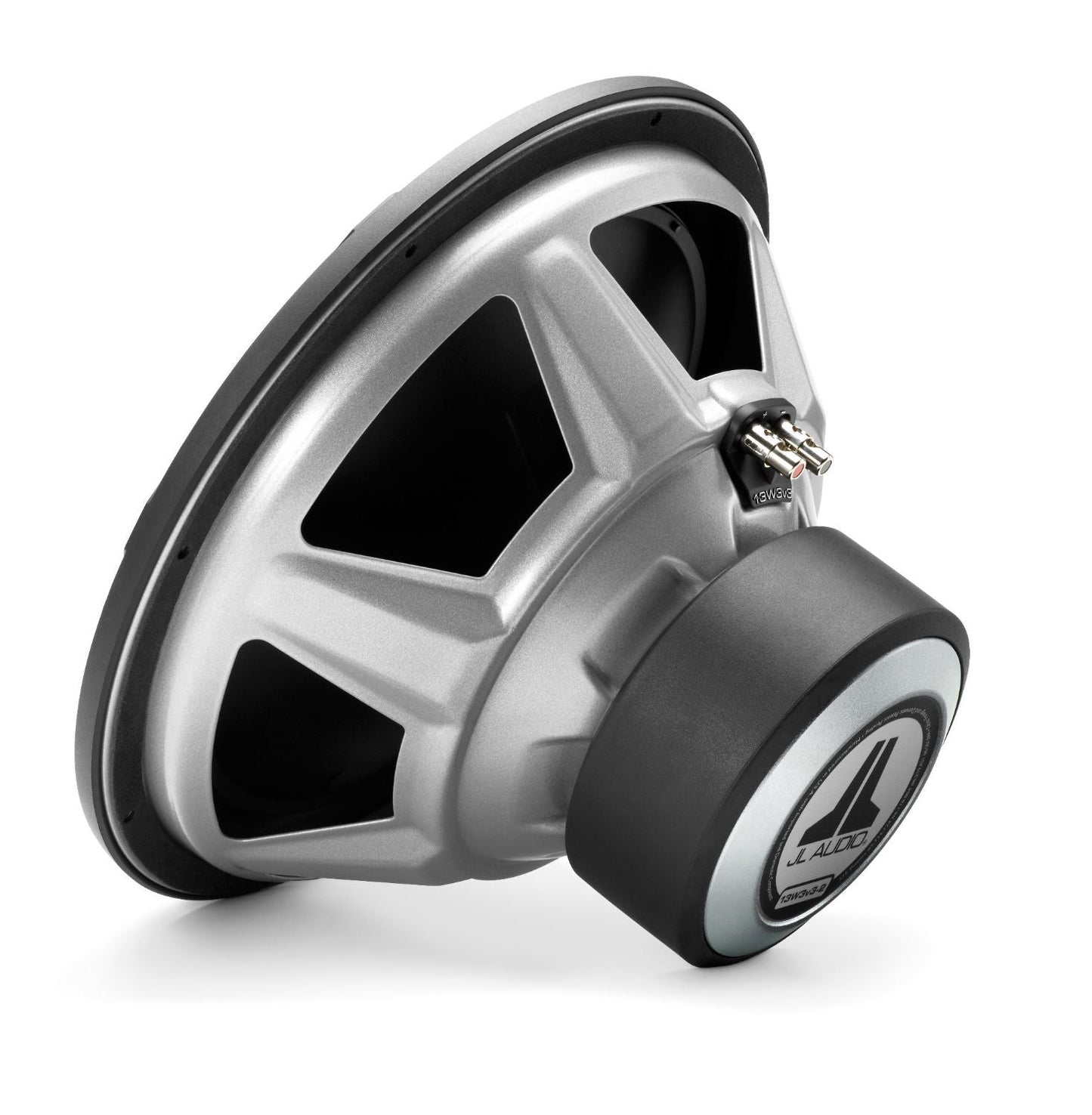

JL Audio 13W3v3-2

If you have the space, it makes a tremendous sense to maximize your subwoofer system's piston area to enhance efficiency (and output). It gets even better when the larger driver delivers additional power handling and excursion. For the preceding reasons, the 13W3v3 can be the best choice for those seeking high output with great sound quality at medium power levels.

As with the smaller W3v3's, several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 13W3v3 to enhance linearity and reliability.

The 13W3v3-2 is best used with amplifier power in the 150W - 600W range and is optimized to operate in a moderate size 1.75 cu. ft. (49.6 l) sealed enclosure, or a 2.5 cu. ft. (70.8 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General SpecificationsContinuous Power Handling (RMS)600 WRecommended Amplifier Power (RMS)150 - 600 WNominal Impedance (Znom)2 Ω

Physical SpecificationsNominal Diameter13.5 in / 345 mmOverall Diameter (A)14.0 in / 356 mmMounting Hole Diameter (B)12.5625 in / 319 mmBolt Hole Circle Diameter (C)13.2 in / 335 mmMotor Outer Diameter (D)5.79 in / 147 mmMounting Depth (E)7.63 in / 194 mmDriver Displacement0.096 cu ft / 2.72 litersNet Weight17.75 lb / 8.05 kg

ParametersFree Air Resonance (Fs)24.70 HzElectrical “Q” (Qes)0.544Mechanical “Q” (Qms)6.936Total Speaker “Q” (Qts)0.504Equivalent Compliance (Vas)4.635 cu ft / 131.26 LOne-Way Linear Excursion (Xmax)*0.610 in / 15.5 mmReference Efficiency (no)0.35%Efficiency (1 W / 1 m)**87.63 dB SPLEffective Piston Area (Sd)103.850 sq in / 0.0670 sq mDC Resistance (Re)1.659 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure SpecificationsWall Thickness0.75 in / 19 mmFront Baffle Thickness0.75 in / 19 mmVolume (net int.)1.75 cu ft / 49.6 LExternal Width (W)16.625 in / 422 mmExternal Height (H)16 in / 406 mmExternal Depth (D)16 in / 406 mmF337.7 HzFc47.2 HzQtc0.96

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Ported Enclosure SpecificationsWall Thickness0.75 in / 19 mmFront Baffle Thickness0.75 in / 19 mmVolume (net int.)2.5 cu ft / 70.8 LExternal Width (W)23.625 in / 600 mmExternal Height (H)17 in / 432 mmExternal Depth (D)18 in / 457 mmInternal Slot Port Width (SW)1.5 in / 38 mmInternal Slot Port Height (SH)15.5 in / 394 mmInternal Slot Port Length (SL)36.25 in / 921 mmPort Extension Length (EL)17.5 in / 445 mmTuning Frequency (Fb)25 HzF335 Hz

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
