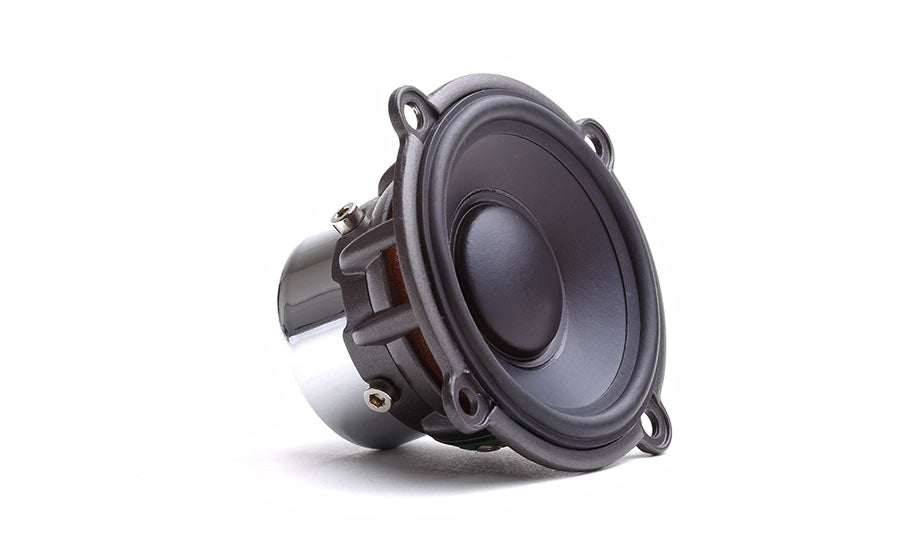

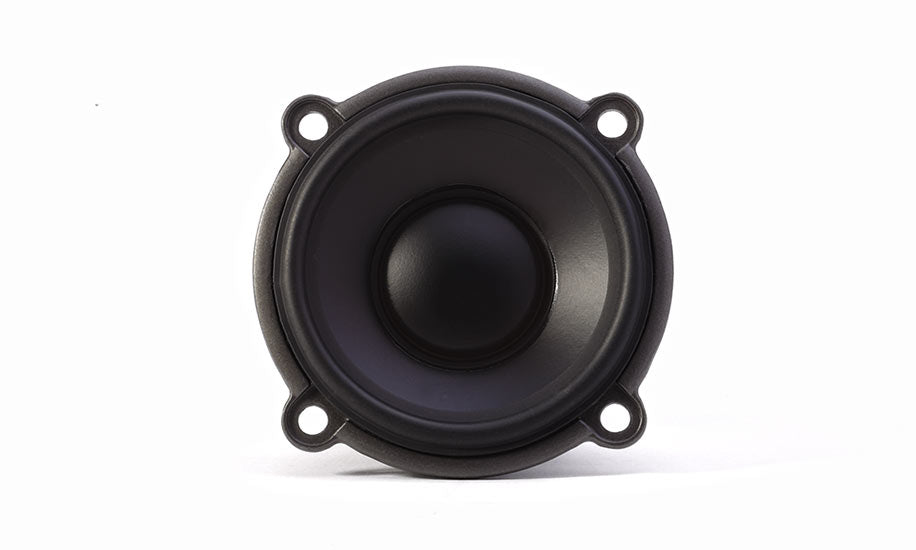

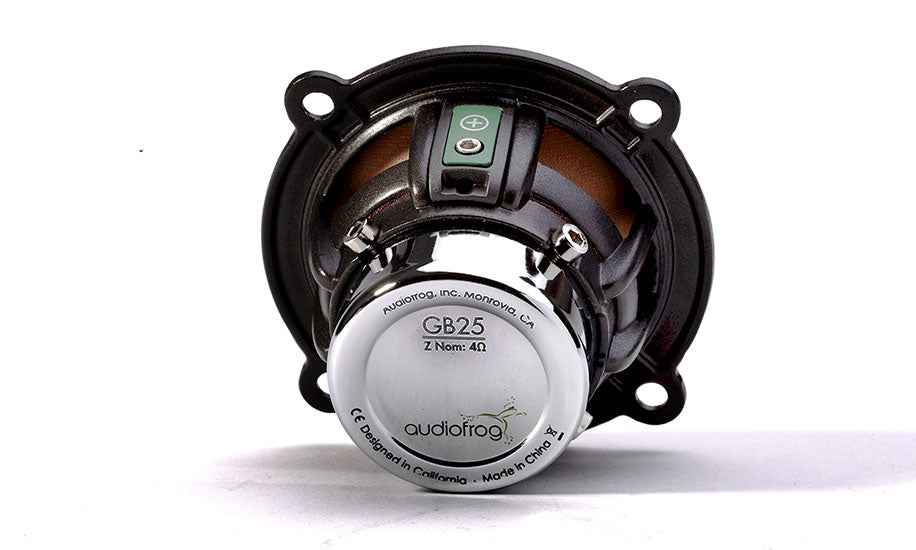

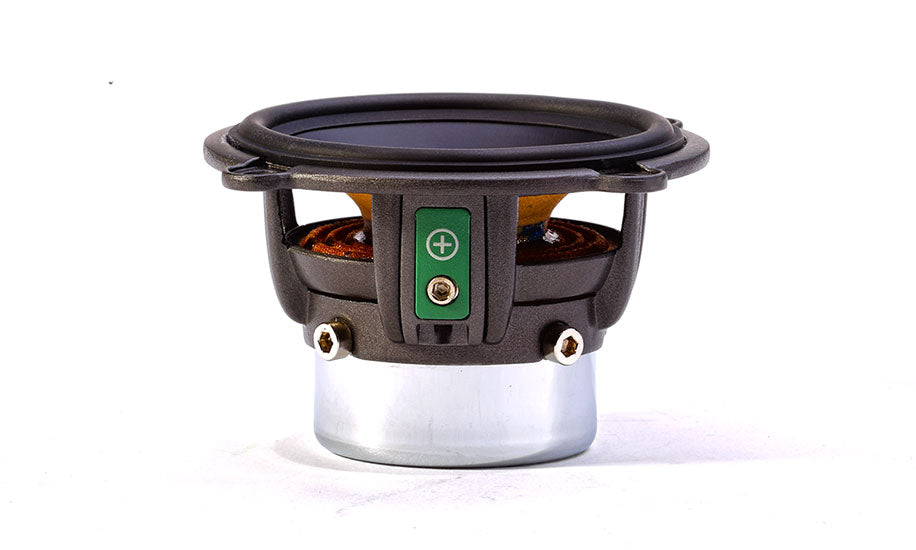

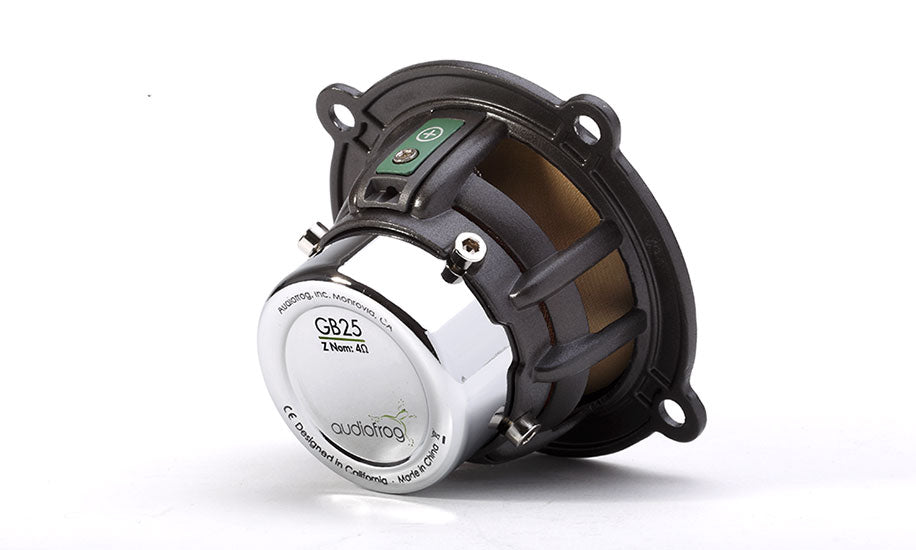

Audiofrog GB25 2-1/2” (63 MM) AUDIOPHILE GRADE AUTOMOTIVE LOUDSPEAKER

Audiofrog GB25 2-1/2” (63 MM) AUDIOPHILE GRADE AUTOMOTIVE LOUDSPEAKER

Contact us for pricing
$74,313.00 USD
Sale Sold out

Designed as a dedicated midrange driver for special applications in 3-way systems, the GB25 is optimized for enclosures as small as 0.2 liters (2-1/2” x 2-1/2” x 2”). The GB25 can be installed in a tiny enclosure in a custom A-pillar or used infinite baffle in a door panel or a dashboard. Like all the GB Series midrange speakers, the GB25 includes a grille and installation kit that can be customized to blend with or highlight nearly any installation.

View full details

  • Features

    • Treated Paper Cone
    • 1” (25 mm) Voice Coil on Fiberglass Former
    • Milled Flat Single-Layer CCAL Voice Coil
    • Copper Inductance- and Distortion-Reducing Pole Piece Cap
    • Neodymium Motor with Bucking Magnet
    • Flat, Progressive Nomex® Spider
    • Nitrile Butadiene Rubber Surround
    • Proprietary Vented Cast Aluminum Basket
    • Chrome-Plated Cast Zinc Motor Housing
    • Screw Terminals
    • All-Metal Grille and Mounting Kits Included
    • Hex Screws and Tools Included

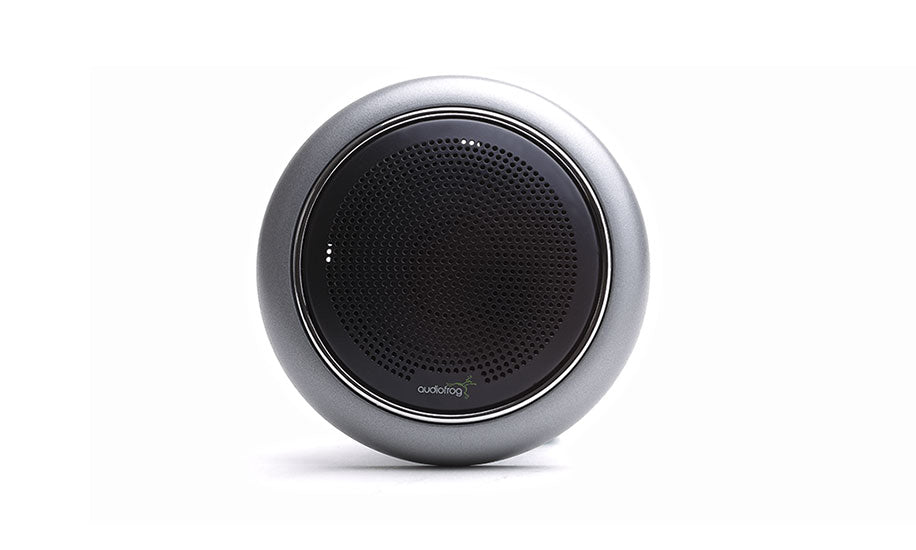

    • Removable and Paintable Grille
    • Rub-On Grille Logos Included for Custom Installation

  • Specifications

    • Nominal Impedance: 4 Ω
    • RMS Power Handling: 100 W (with recommended crossover)
    • Peak Power Handling: 300 W (with recommended crossover)

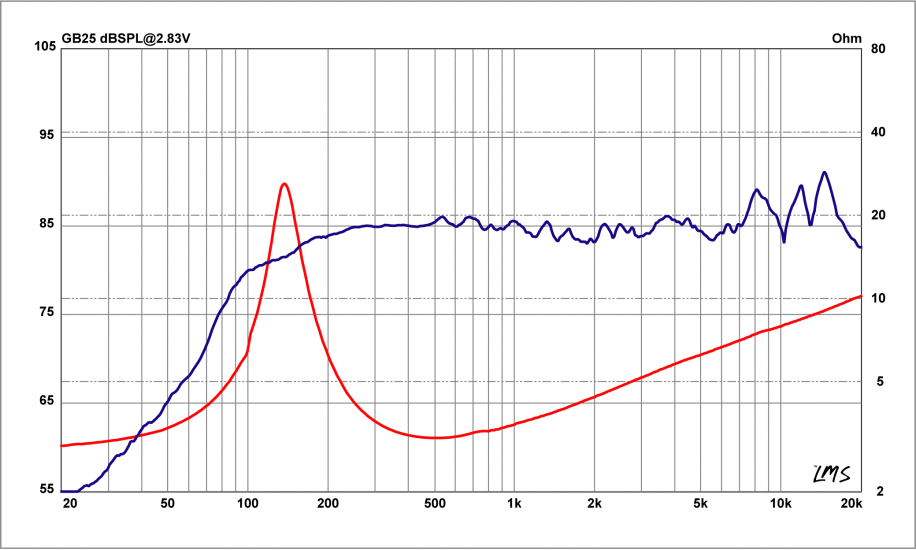

    • Frequency Response (-3 dB): 150 Hz – 16 kHz
    • Sensitivity (2.83 V/1 M): 86 dB
    • Recommended Amplifier RMS Power Range: 20 W – 100 W
    • Recommended High Pass Filter Frequency and Slope: ≥ 200 Hz, ≥ 12 dB/oct
    • Recommended Low Pass Filter Frequency and Slope: ≤ 12 kHz, ≥ 12 dB/oct

    Thiele & Small Parameters:

    • Revc: 2.3 Ω
    • Levc@1kHz: 0.06 mH
    • Sd: 26.4 cm²
    • Mmd: 3.34 g
    • Mms: 3.42 g
    • Cms: 256 µM/N
    • Vas: 0.26 liters
    • Fs: 170 Hz
    • BL: 3.4 TM
    • Qms: 4.8
    • Qes: 0.75
    • Qts: 0.65
    • Xmax (1-way linear): 4 mm (3/16”)
    • Basket Displacement: 0.06 liters (0.002ft³)
